OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

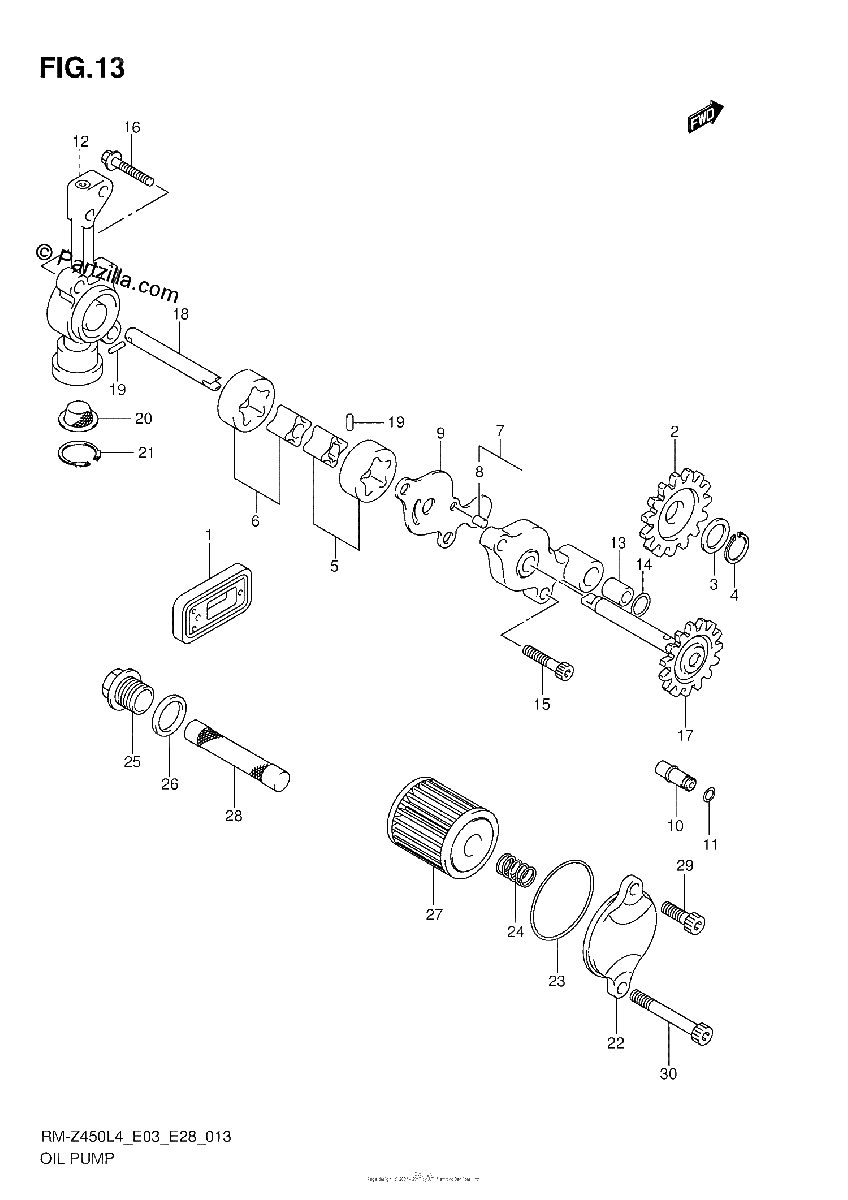

Diagrama de OIL PUMP

Repuestos

#1
13150-28H10
VALVE ASSY, OIL REED
$56.16¢28 081
1
#2
16321-28H00
GEAR, OIL PUMP IDLE (NT:15) | NT:15
$90.88¢45 438
1
#3
09181-12130
SHIM (12X18X0.5)
$2.70¢1 350
1
#4
08331-3112A
CIRCLIP
$2.30¢1 150
1
#5
16410-35G00
ROTOR SET, OIL PUMP NO.1
$59.47¢29 737
1
#6
16410-45G00
ROTOR SET, OIL PUMP NO.2
$48.71¢24 356
1
#7
16430-28H00
COVER, OIL PUMP NO.1
$59.50¢29 750
1
#8
04221-04089
.PIN
$1.44¢719
1
#9
16432-35G10
PLATE, OIL PUMP NO.1
$10.44¢5 219
1
#10
16440-28H00
VALVE ASSY, OIL RELIEF
$100.02¢50 012
1
#11
09280-05007
O RING (D:1.2,ID:4.7)
$2.52¢1 263
1
#12
16450-28H10
COVER, OIL PUMP NO.2
$96.56¢48 281
1
#13
04211-09149
PIN
$2.14¢1 069
1
#14
09280-09005
O RING (D:1.9, ID:8.6)
$4.34¢2 169
1
#15
07130-0520B
BOLT
$3.31¢1 656
1
#16
01547-0625A
BOLT
$2.63¢1 313
1
#17
16440-35G10
SHAFT, OIL PUMP DRIVEN GEAR
$103.00¢51 500
1
#18
16443-28H00
SHAFT, OIL PUMP NO.2
$26.19¢13 094
1
#19
09261-02008
PIN (2.5X11.8)
$1.93¢963
1
#20
16530-28H00
STRAINER, OIL PUMP NO.2
$13.10¢6 550
1
#21
09381-19003
CIRCLIP
$2.64¢1 319
1
#22
16315-35G30
CAP, ENGINE OIL FILTER OUTER
$29.25¢14 625
1
#23
09280-39001
O RING (D:2,ID:38.5)
$3.71¢1 856
1
#24
09440-10038
SPRING
$3.65¢1 825
1
#25
16316-10H01
CAP, ENG OIL STRAINER
$26.58¢13 288
1
#26
09168-16002
GASKET (16X22X2)
$2.46¢1 231
1
#27
16510-35G00
FILTER, ENGINE OIL
$11.74¢5 869
1
#28
16520-10H10
STRAINER, ENGINE OIL
$56.29¢28 144
1
#29
01547-0616A
BOLT
$2.63¢1 313
1
#30
01547-0640A
.BOLT
$3.01¢1 506
1
