FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

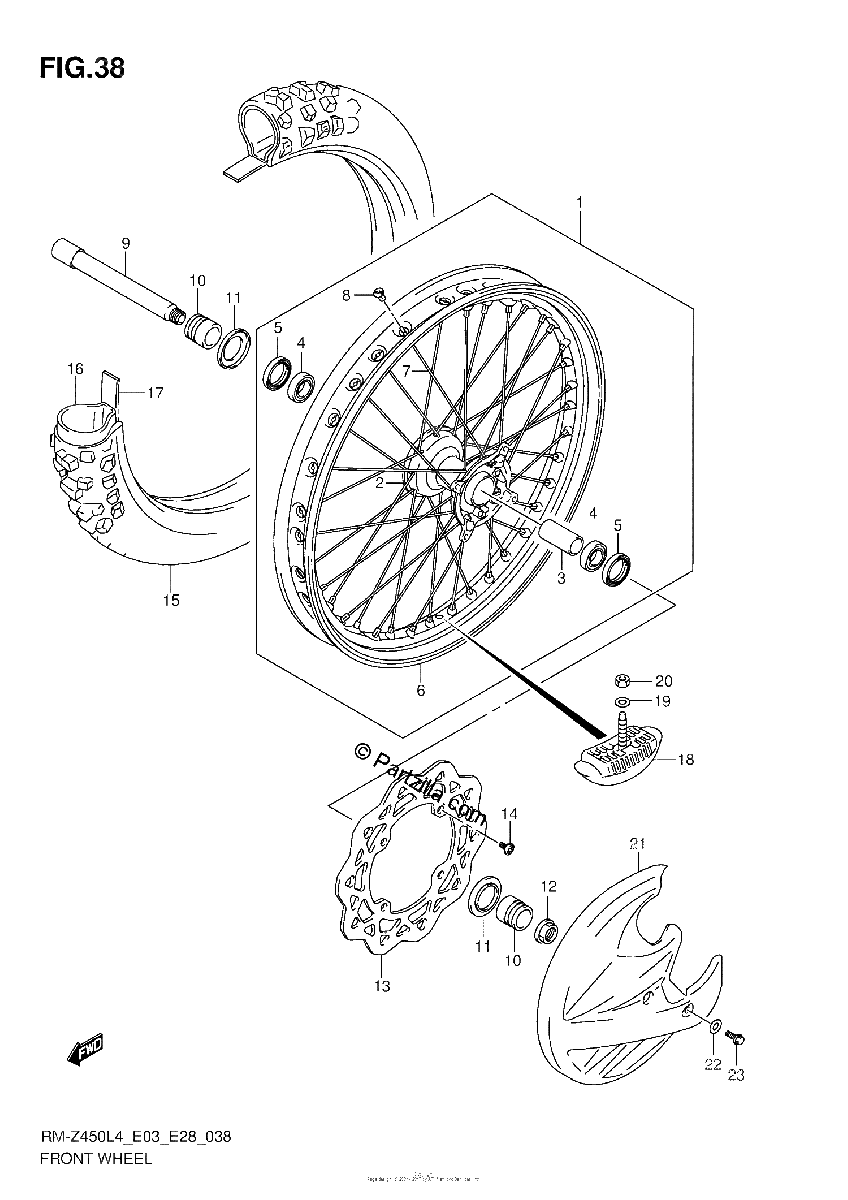

Diagrama de FRONT WHEEL

Repuestos

#1
54100-10H00
WHEEL ASSY, FRONT
No Disponible
1
#2
54111-35G01
.HUB, FRONT WHEEL
$367.06¢183 528
1
#3
54731-35G00
.SPACER, FRONT HUB
$31.71¢15 853
1
#4
09262-22034
.BEARING (22X39X9)
$55.58¢27 790
1
#5
09283-30073
.OIL SEAL (30X40X7)
$20.87¢10 436
1
#6
55311-10H00
.RIM, FRONT WHEEL (21X1.60)
No Disponible
1
#7
55321-35G10
.SPOKE, FRONT WHEEL
$5.40¢2 702
1
#8
55325-35G00
.NIPPLE, FRONT WHEEL
$7.27¢3 634
1
#9
54711-35G00
AXLE, FRONT
$143.89¢71 944
1
#10
54741-35G00
SPACER, FRONT AXLE
$35.05¢17 526
1
#11
54742-35G00
COVER, FRONT AXLE SPACER
$10.13¢5 066
1
#12
09159-18016
NUT
$14.86¢7 429
1
#13
59221-28H10
DISC, FRONT BRAKE
$262.92¢131 462
1
#14
09139-06142
SCREW (6X13.5)
$4.80¢2 398
1
#15
55110-28H00
TIRE, FRONT (80/100-21 51M) | BRIDGESTONE
$347.16¢173 581
1
#16
55200-32E01
TUBE ASSY, WHEEL INNER
$72.97¢36 484
1
#17
55261-35G01
PROTECTOR, INNER TUBE
$8.54¢4 272
1
#18
65270-14300
STOPPER, BEAD
$65.49¢32 746
1
#19
08322-0108A
WASHER
$2.28¢1 138
1
#20
08310-0008A
NUT
$2.23¢1 116
1
#21
59231-36E30-YU1
COVER, BRAKE DISC | OPT
No Disponible
1
#22
59232-36E30
WASHER, DISC COVER | OPT
$21.47¢10 735
1
#23
09103-06233
BOLT (6X12) | OPT
$2.52¢1 259
1
