FRAME COVER DR Z400SL4 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

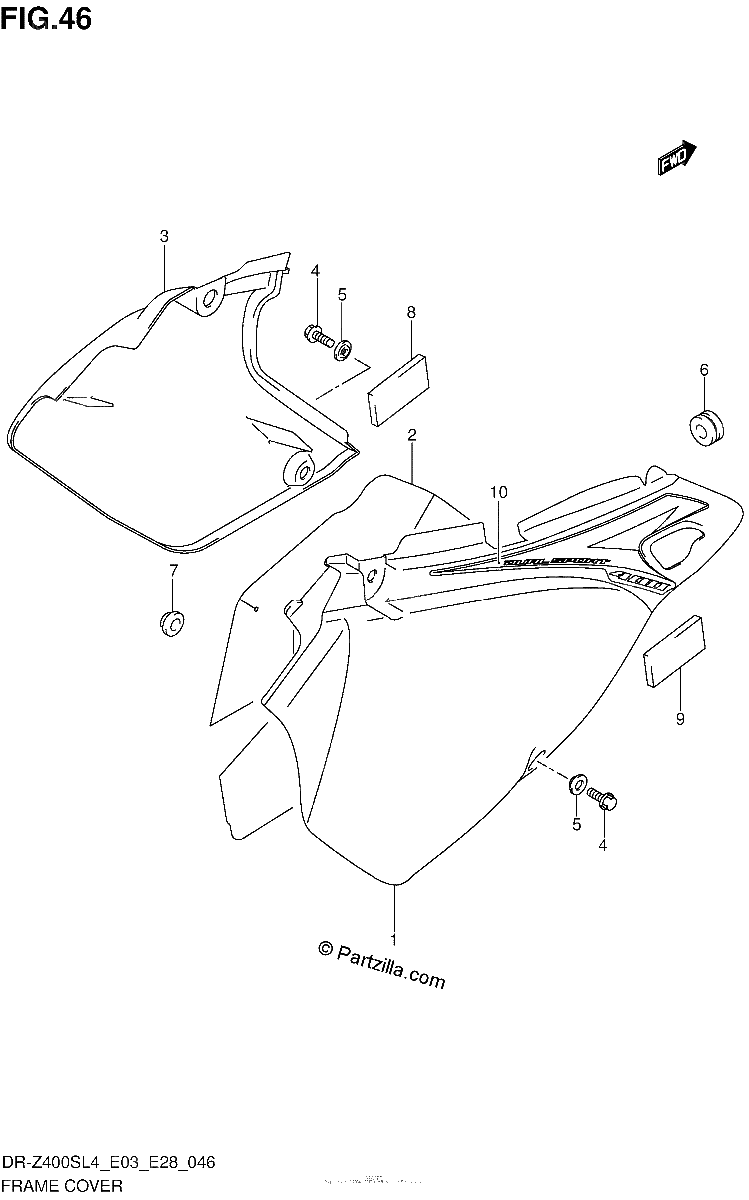

Diagrama de FRAME COVER DR Z400SL4 E03

Repuestos

#1
47111-29FC0-019
COVER, FRAME RH (BLACK)
$145.65¢72 825
1
#1
47111-29FC0-30H
COVER, FRAME RH (WHITE)
$77.47¢38 738
1
#2
47166-29F00
SHIELD, FRAME COVER RH
$111.94¢55 969
1
#3
47211-29FA0-019
COVER, FRAME LH (BLACK)
$108.06¢54 031
1
#3
47211-29FA0-30H
COVER, FRAME LH (WHITE)
$77.47¢38 738
1
#4
09103-06273
BOLT (6X12)
$2.92¢1 463
1
#5
09169-06041
WASHER
$2.56¢1 281
1
#6
09320-06504
CUSHION
$5.83¢2 913
1
#7
09321-10018
CUSHION
$5.46¢2 731
1
#8
47161-29F00
CUSHION, FRAME COVER LH
$9.71¢4 856
1
#9
71762-65G10
CUSHION, FRAME COVER RH FRONT
$11.19¢5 594
1
#10
68135-29FD0-HMC
TAPE, FRAME COVER RH (SILVER/BLACK) | FOR 019
$54.59¢27 294
1
#10
68135-29FD0-HMD
TAPE, FRAME COVER RH (BLUE/WHITE) | FOR 30H
$54.54¢27 269
1
