CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

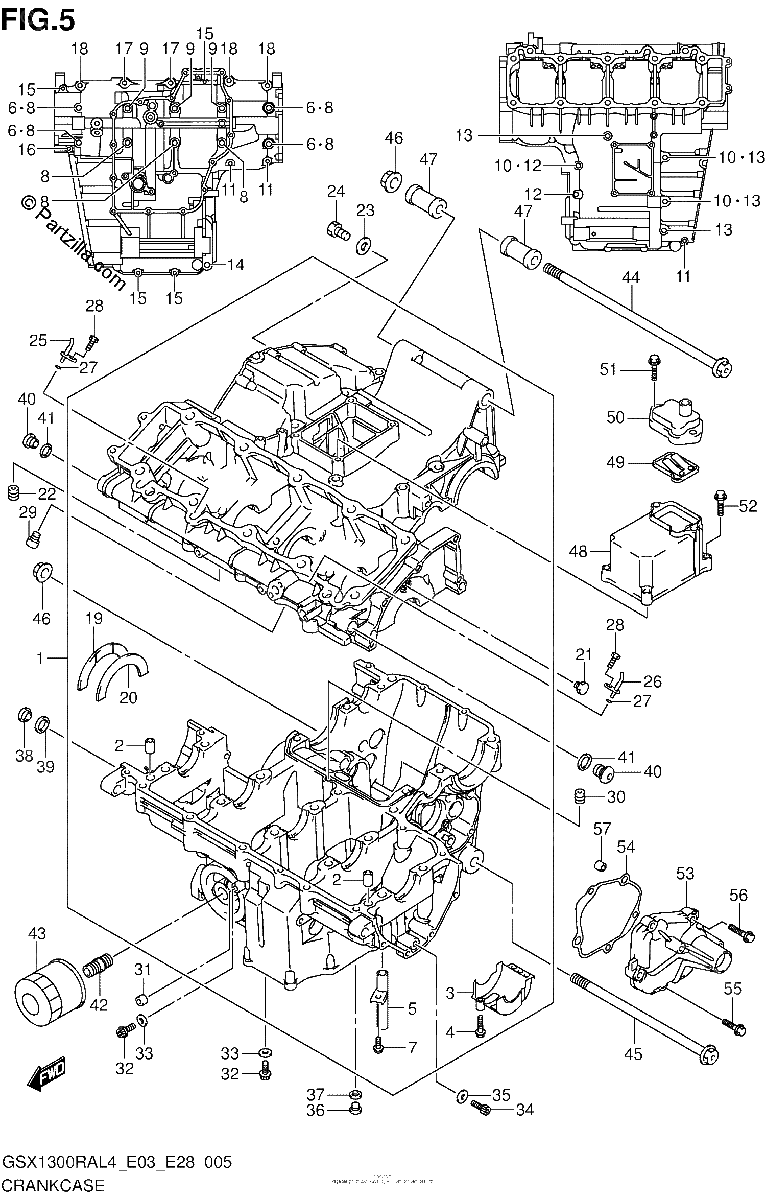

Diagrama de CRANKCASE

Repuestos

#1
11302-24820
CRANKCASE SET
$4521.74¢2 260 871
1
#2
11319-33E50
.PIN, CRANKCASE
$6.00¢3 001
1
#3
11323-24F10
.SEPARATOR, OIL
No Disponible
1
#4
01547-0625A
BOLT
$2.42¢1 208
1
#5
11328-24F00
.UNION, BREATHER OIL
$23.20¢11 598
1
#6
09168-10031
.GASKET (10.2X20X2.3)
$2.42¢1 208
1
#7
01547-0612A
BOLT
$2.42¢1 208
1
#8
09103-09008
.BOLT (9X95)
$8.34¢4 169
1
#9
09103-09010
.BOLT (9X115)
$11.96¢5 980
1
#10
09168-08016
.GASKET (8.2X14X1)
$1.97¢983
1
#11
01547-0650A
.BOLT
$2.90¢1 449
1
#12
01550-0865A
.BOLT
$3.85¢1 926
1
#13
01550-0880A
.BOLT
$5.14¢2 570
1
#14
01550-1060A
.BOLT
$5.08¢2 541
1
#15
01547-0640A
.BOLT
$2.77¢1 386
1
#16
01547-0660A
.BOLT
$3.36¢1 679
1
#17
09103-08155
.BOLT (8X60)
No Disponible
1
#18
09103-08355
.BOLT (8X50)
$5.14¢2 570
1
#19
12228-24F00-0D0
.BEARING, CRANK THRUST (GREEN
$12.20¢6 101
1
#20
12228-24F00-0C0
.BEARING, CRANK THRUST (BLUE)
$15.79¢7 895
1
#20
12228-24F00-0B0
.BEARING, CRANK THRUST (BLACK
$15.79¢7 895
1
#20
12228-24F00-0A0
.BEARING, CRANK THRUST (RED) | LH
$15.90¢7 952
1
#20
12228-24F00-0D0
.BEARING, CRANK THRUST (GREEN
$12.20¢6 101
1
#20
12228-24F00-0E0
.BEARING, CRANK THRUST
$16.50¢8 251
1
#20
12228-24F00-0F0
.BEARING, CRANK THRUST (WHITE
$16.50¢8 251
1
#21
11393-33E01
JET, MAGNETO COOLING
$17.19¢8 596
1
#22
09493-20012
JET, AIR (100)
$23.52¢11 759
1
#23
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#24
07120-0612B
BOLT
$3.36¢1 679
1
#25
11390-34E00
JET, PISTON COOLING RH
$26.71¢13 357
1
#26
11390-34E10
JET, PISTON COOLING LH
$26.71¢13 357
1
#27
09280-04004
O RING (D:1.2,ID:4)
$2.04¢1 018
1
#28
09106-06075
BOLT (6X12)
$2.99¢1 495
1
#29
09106-06076
BOLT
$3.61¢1 805
1
#30
09493-36006
JET, AIR (180)
$20.38¢10 189
1
#31
11532-46E00
JET, OIL GALLERY
$14.32¢7 159
1
#32
07120-0612B
BOLT
$3.36¢1 679
1
#33
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#34
07130-0816B
BOLT
$5.14¢2 570
1
#35
09168-08016
.GASKET (8.2X14X1)
$1.97¢983
1
#36
09248-10010
PLUG (10X10)
$4.58¢2 289
1
#37
09168-10002
GASKET (10X14X3.6)
$2.28¢1 138
1
#38
09248-16012
.PLUG (16X8)
$5.03¢2 513
1
#39
09168-16002
GASKET (16X22X2)
$2.27¢1 133
1
#39
11383-15H00
COVER, GEAR SHIFT
$139.41¢69 707
1
#40
09248-14012
PLUG (14X12)
$3.36¢1 679
1
#41
09168-14004
GASKET
$1.97¢983
1
#42
16591-06B01
.UNION, OIL FILTER STAND
$7.73¢3 864
1
#43
16510-07J00
FILTER ASSY, ENGINE OIL
$14.36¢7 182
1
#44
09103-12120
BOLT (12X320)
$40.22¢20 108
1
#45
09103-12119
BOLT (12X243)
$37.57¢18 785
1
#46
09159-12054
NUT
$10.56¢5 278
1
#47
11611-24F00
SPACER, ENGINE MOUNT
$33.23¢16 617
1
#48
11331-15H00
COVER, BREATHER
$110.17¢55 085
1
#49
13150-01H01
VALVE ASSY, BREATHER REED
$86.82¢43 412
1
#50
11372-21H00
COVER, REED VALVE
$23.89¢11 943
1
#51
01547-0620A
BOLT
$2.42¢1 208
1
#52
01547-0630A
BOLT
$2.77¢1 386
1
#54
11485-24F00
GASKET
$7.15¢3 577
1
#55
01547-0625A
BOLT
$2.42¢1 208
1
#56
01547-0635A
BOLT
$2.77¢1 386
1
#57
04211-09149
PIN
$1.97¢983
1
