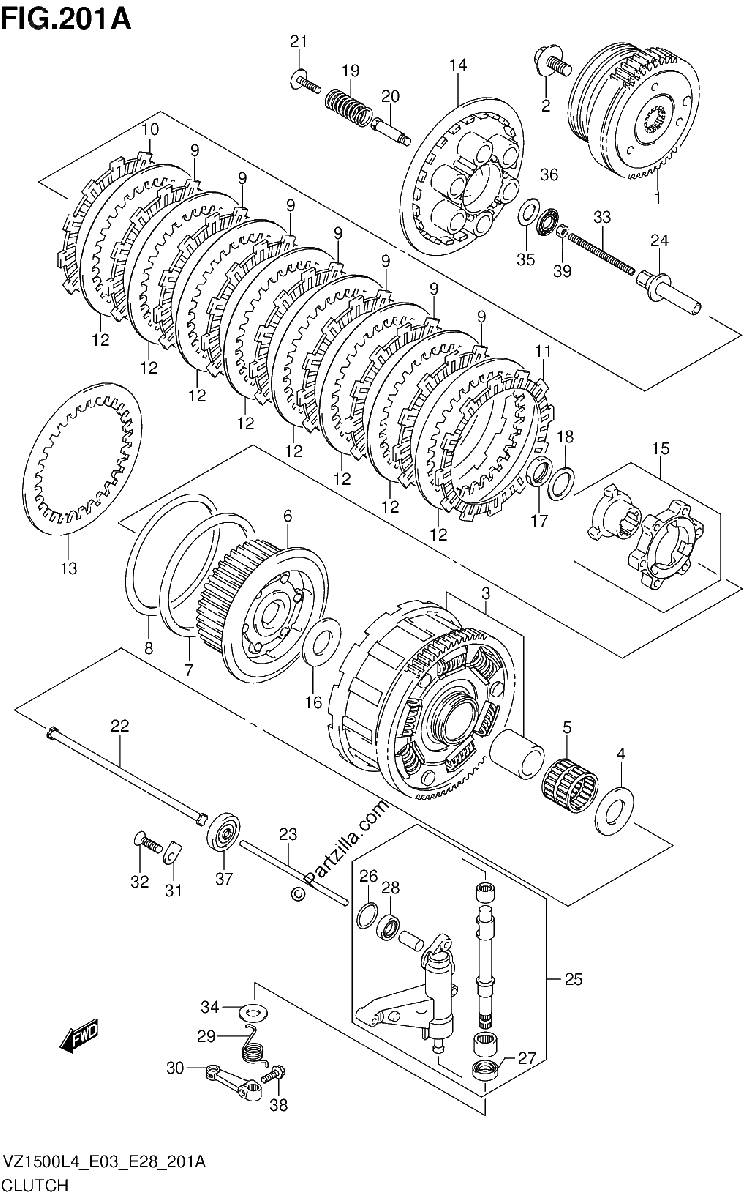

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GEAR, PRIMARY DRIVE SET (NT:54)
$968.10¢484 050
#2
BOLT (14X28)
$22.97¢11 487
#3
GEAR, PRIMARY DRIVEN (NT:76)
$738.27¢369 138
#4
WASHER (25X52X2.5)
$9.32¢4 663
#5
BEARING (35X40X39.8)
$41.79¢20 894
#6
HUB, SLEEVE
No Disponible
#7
SEAT, WAVE WASHER
$17.00¢8 500
#8
WASHER, CLUTCH PLATE WAVE
$19.01¢9 506
#9
PLATE, CLUTCH DRIVE NO.1 (T:3.8)
$47.88¢23 938
#10
PLATE, CLUTCH DRIVE NO.3 (T:3.8)
$28.65¢14 325
#11
PLATE, CLUTCH DRIVE NO.2 (T:3.8)
$28.80¢14 400
#12
PLATE, CLUTCH DRIVEN (T:2.0)
$13.83¢6 913
#13
PLATE, CLUTCH DRIVEN NO.2 (T:2.3)
$13.83¢6 913
#14
DISC, CLUTCH PRESSURE
$91.72¢45 863
#15
CAM SET, CLUTCH
$333.06¢166 531
#16
WASHER (25X50X3.5)
No Disponible
#17
NUT
$15.53¢7 763
#18
WASHER
$6.04¢3 019
#19
SPRING, CLUTCH
$10.65¢5 325
#20
BOLT, CLUTCH SPRING SUPPORT
$12.10¢6 050
#21
BOLT, CLUTCH SPRING
$4.20¢2 100
#22
ROD, CLUTCH
$27.26¢13 631
#23
ROD, CLUTCH PUSH LH
No Disponible
#24
PIECE, CLUTCH PUSH
$66.16¢33 081
#25
CAMSHAFT SET, CLUTCH RELEASE
No Disponible
#26
.O RING (D:2.5, ID:21) | NOT ILLUSTRATED
$2.46¢1 231
#27
OIL SEAL (10X20X6)
$9.38¢4 688
#28
OIL SEAL (10X17X5)
$3.96¢1 981
#29
SPRING, CLUTCH RELEASE RETURN
$5.34¢2 669
#30
ARM, CLUTCH RELEASE
$123.00¢61 500
#31
RETAINER, BEARING
$3.65¢1 825
#32
SCREW (6X12)
$2.63¢1 313
#33
SCREW (6X73)
$8.09¢4 044
#34
WASHER (10.5X24X1)
$2.42¢1 213
#35
WASHER (15.5X28X1)
$4.58¢2 288
#36
BEARING (15X28X2)
$9.75¢4 875
#37
OIL SEAL (6X18X5)
$14.81¢7 406
#38
BOLT
$2.63¢1 313
#39
NUT
$2.39¢1 194
