FUEL TANK VZ1500L4 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

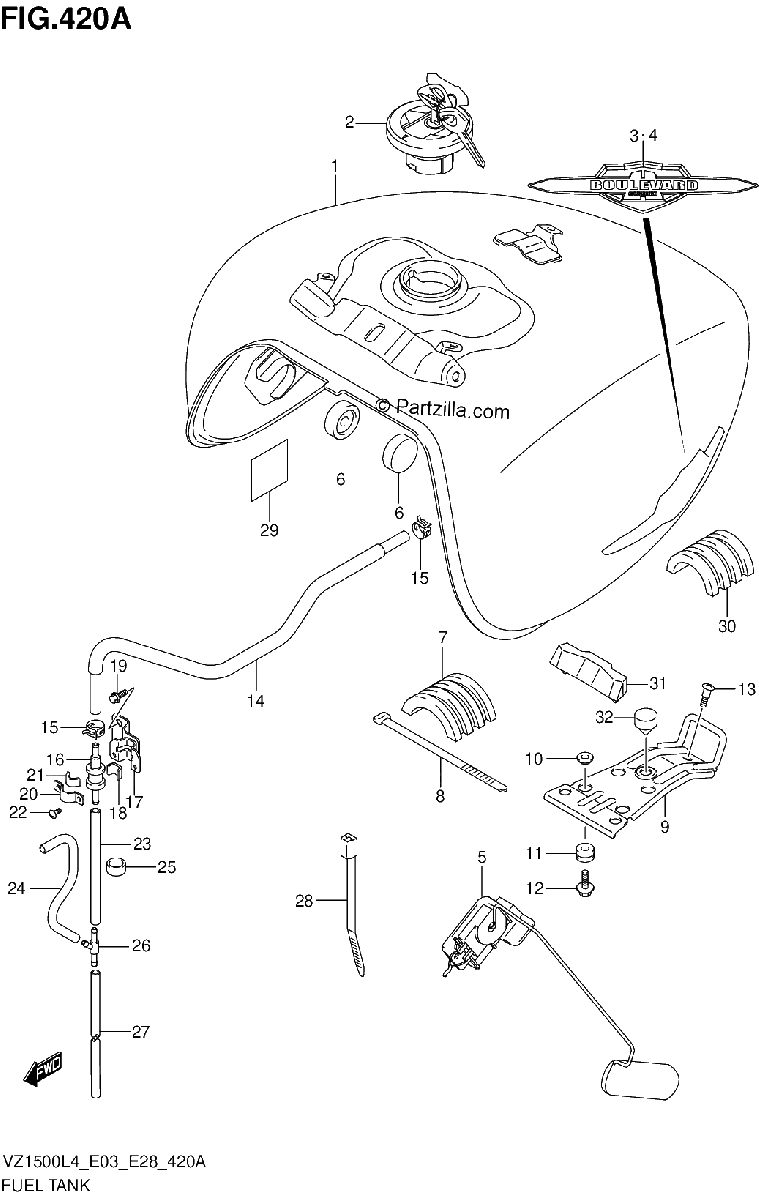

Diagrama de FUEL TANK VZ1500L4 E03

Repuestos

#2
44200-39840
CAP SET, FUEL TANK
$241.16¢120 581
1
#3
68111-40H00
EMBLEM, RH
$96.38¢48 188
1
#4
68121-40H00
EMBLEM, LH
$98.19¢49 094
1
#5
34810-40H00
GUAGE ASSY, FUEL TANK
$131.90¢65 950
1
#6
09329-10007
CUSHION | FRONT
$2.49¢1 244
1
#7
44541-04F00
CUSHION, TANK SIDE
No Disponible
1
#8
09407-30402
CLAMP (L:300)
$4.90¢2 450
1
#9
44530-06J00
BRACKET, REAR
$50.94¢25 469
1
#10
09169-06062
WASHER
$3.25¢1 625
1
#1-1
44100-40H62-YLF
TANK ASSY, FUEL (GRAY)
$2117.29¢1 058 644
1
#11
09320-08001
CUSHION
$2.70¢1 350
1
#1-2
44100-40H62-YVB
TANK ASSY, FUEL (BLACK)
$2459.25¢1 229 625
1
#12
09116-06192
BOLT (6X20)
$3.08¢1 538
1
#13
01550-0812A
BOLT | FRONT
$3.01¢1 506
1
#14
44434-40H10
HOSE, TANK & VALVE
No Disponible
1
#15
09401-11413
CLIP
$2.92¢1 463
1
#16
44240-38A00
VALVE, ROLL OVER
$82.56¢41 281
1
#17
44880-40H00
BRACKET, BREATHER VALVE
No Disponible
1
#18
44894-24A00
.CUSHION
$2.31¢1 156
1
#19
01547-0610A
BOLT
$1.77¢888
1
#20
44892-24A00
PLATE FUEL TANK BREATHER, NO.
$6.10¢3 050
1
#21
44894-24A00
.CUSHION
$2.31¢1 156
1
#22
02142-0408A
SCREW
$2.04¢1 019
1
#23
09352-50903-600
HOSE (5X9X600) | L:600-100
$8.80¢4 400
1
#24
44424-15H10
HOSE, BREATHER NO.3
$18.52¢9 263
1
#25
09352-13162-010
HOSE (13.5X16.5X10)
No Disponible
1
#26
09367-06007
3 WAY
$4.14¢2 069
1
#27
09352-50823-600
HOSE (5X8.2X600)
$11.83¢5 913
1
#28
09407-19401
CLAMP (L:190)
$4.00¢2 000
1
#29
44283-40H00
PROTECTOR
No Disponible
1
#30
44541-06J00
CUSHION, TANK SIDE REAR
No Disponible
1
#31
44545-06J00
CUSHION
No Disponible
1
#32
09321-10011
.CUSHION
$3.65¢1 825
1
