CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

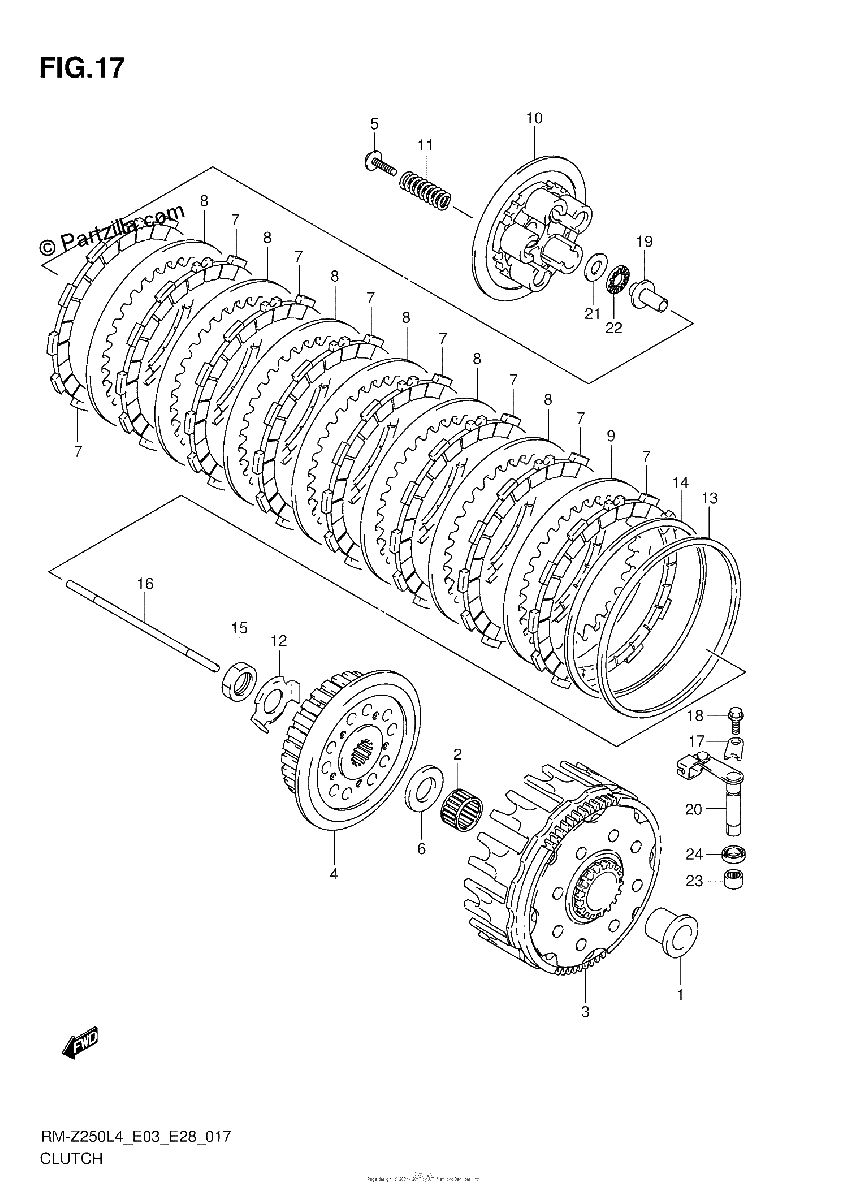

Diagrama de CLUTCH

Repuestos

#1
21251-10H00
SPACER, PRIMARY DRIVEN GEAR
$67.91¢33 956
1
#2
09263-27004
BEARING (27X32X21.8)
$43.52¢21 763
1
#3
21200-49H10
GEAR ASSY, PRIMARY DRIVEN
$320.71¢160 356
1
#4
21411-10H10
HUB, CLUTCH SLEEVE
$112.45¢56 225
1
#5
21412-45G00
BOLT, CLUTCH SPRING
$3.98¢1 988
1
#6
09160-22083
WASHER (22X45X3)
$18.71¢9 356
1
#7
21441-40F10
PLATE, CLUTCH DRIVE (T:2.8)
$25.85¢12 925
1
#8
21451-10H00
PLATE, CLUTCH DRIVEN (T:1.6)
$12.13¢6 063
1
#9
21452-10H00
PLATE, CLUTCH DRIVEN (T:1.6)
$21.25¢10 625
1
#10
21462-10H00
DISC, CLUTCH PRESSURE
$71.96¢35 981
1
#11
21413-49H00
SPRING, CLUTCH
$9.25¢4 625
1
#12
21416-10H00
WASHER, CLUTCH SLEEVE
$5.63¢2 813
1
#13
21471-40F00
SEAT, WAVE WASHER
$17.59¢8 794
1
#14
21472-10H00
WASHER, CLUTH PLATE
$29.02¢14 513
1
#15
09140-18020
NUT
$14.91¢7 456
1
#16
23110-37F00
ROD, CLUTCH PUSH
$24.50¢12 250
1
#17
23117-10H00
RETAINER, CLUTCH RELEASE
$6.90¢3 450
1
#18
09103-06233
BOLT (6X12) | OPT
$2.74¢1 369
1
#19
23121-49H10
PIECE, CLUTCH PUSH
$44.54¢22 269
1
#20
23200-49H10
CAMSHAFT, CLUTCH RELEASE
$131.63¢65 813
1
#21
09181-12016
SHIM (12X26X0.8)
$3.84¢1 919
1
#22
09263-12019
BEARING (12X26X2)
$16.38¢8 188
1
#23
09263-10014
BEARING (10X14X10)
$15.90¢7 950
1
#24
09285-10004
OIL SEAL (10X17X5)
$3.96¢1 981
1
