CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

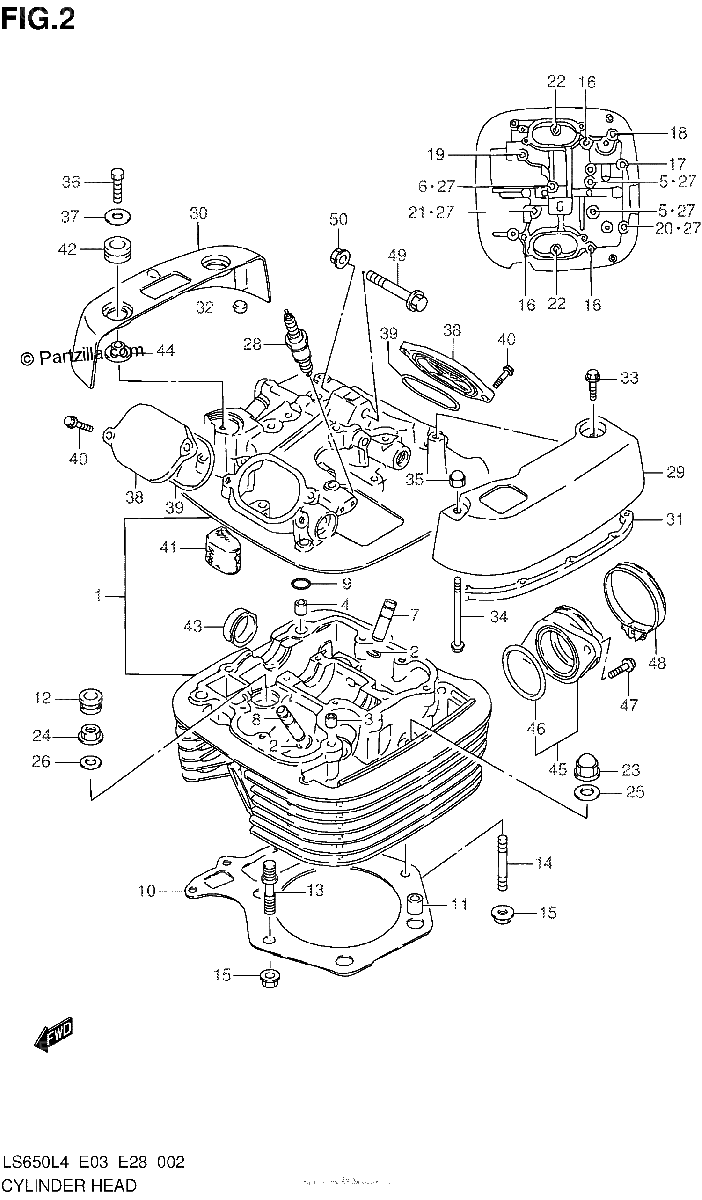

Diagrama de CYLINDER HEAD

Repuestos

#1
11100-24B20
HEAD ASSY, CYLINDER
No Disponible
1
#2
09381-10003
.SNAP RING
$3.25¢1 625
1
#3
09206-08001
.PIN (8X11)
$2.30¢1 150
1
#4
09206-11004
PIN
$6.30¢3 150
1
#5
09103-06064
BOLT (6X60)
$2.78¢1 388
1
#6
09103-06103
BOLT (6X70)
$3.29¢1 644
1
#7
11115-44B70
GUIDE, VALVE IN (OS:0.3) | OPT
$55.00¢27 500
1
#8
11115-37470
GUIDE, VALVE EX (OS:0.3) | OPT
$55.00¢27 500
1
#9
11178-24B00
O RING, CYLINDER HEAD COVER
$2.84¢1 419
1
#10
11141-24B03
GASKET, CYLINDER HEAD
$60.00¢30 000
1
#11
04211-13189
PIN
$2.85¢1 425
1
#12
11145-37401
CAP, CYLINDER HEAD SEAL
$14.28¢7 138
1
#13
09108-08205
STUD BOLT
$18.96¢9 481
1
#14
09108-08206
STUD BOLT (8X31)
$4.41¢2 206
1
#15
08316-1008A
NUT
$3.21¢1 606
1
#16
09103-06026
.BOLT (6X39)
$2.34¢1 169
1
#17
09103-06033
BOLT (6X125)
$4.59¢2 294
1
#18
09103-06052
BOLT (6X115)
$6.15¢3 075
1
#19
09103-06064
BOLT (6X60)
$2.78¢1 388
1
#20
09103-06085
BOLT (6X130)
$6.04¢3 019
1
#21
09103-06102
BOLT (6X55)
$2.19¢1 094
1
#22
01550-0625A
SCREW
$2.56¢1 281
1
#23
09159-09003
NUT
$9.65¢4 825
1
#24
09159-09004
NUT
$3.02¢1 513
1
#25
09168-10031
.GASKET (10.2X20X2.3)
$2.63¢1 313
1
#26
09168-10031
.GASKET (10.2X20X2.3)
$2.63¢1 313
1
#27
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#28
09482-00354
SPARK PLUG (DPR7EA-9) | NGK
$3.96¢1 981
1
#28
09482-00334
SPARK PLUG (DPR8EA-9) | OPT
$3.65¢1 825
1
#28
09482-00335
SPARK PLUG (X24EPR-U9) | OPT
$6.39¢3 194
1
#29
11171-24B04
CAP, HEAD COVER LH
No Disponible
1
#30
11172-24B04
CAP, HEAD COVER RH
No Disponible
1
#31
11272-24B01
CUSHION, LH CAP
$9.63¢4 813
1
#32
11273-24B00
CUSHION, RH CAP
$5.55¢2 775
1
#33
01550-0620A
BOLT
$2.56¢1 281
1
#34
01550-0665A
BOLT | LH, NO.1
$3.77¢1 888
1
#35
08313-2006A
NUT
$2.56¢1 281
1
#36
01500-0625A
BOLT
$2.30¢1 150
1
#37
09160-06134
WASHER (6.5X24X1.6)
$2.46¢1 231
1
#38
11175-24B20
CAP, INSPECTION
No Disponible
1
#39
09280-60004
O RING (D:2.4,ID:23)
$4.40¢2 200
1
#40
01550-0620A
BOLT
$2.56¢1 281
1
#41
11186-24B02
SEPARATOR, OIL BRTHR COVER
$16.41¢8 206
1
#42
09320-13015
CUSHION
$3.65¢1 825
1
#43
09241-30008
PLUG (OD:30)
$8.40¢4 200
1
#44
09301-06007
BUSH
$6.15¢3 075
1
#45
13101-14A10
PIPE, INTAKE
$56.29¢28 144
1
#46
09280-46002
.O RING (D:2.4,ID:45.7)
$12.32¢6 163
1
#47
02112-1620B
SCREW
$3.44¢1 719
1
#48
09402-58208
CLAMP
$6.30¢3 150
1
#49
09103-08339
BOLT (8X55)
$4.16¢2 081
1
#50
08319-3108A
NUT
$3.01¢1 506
1
