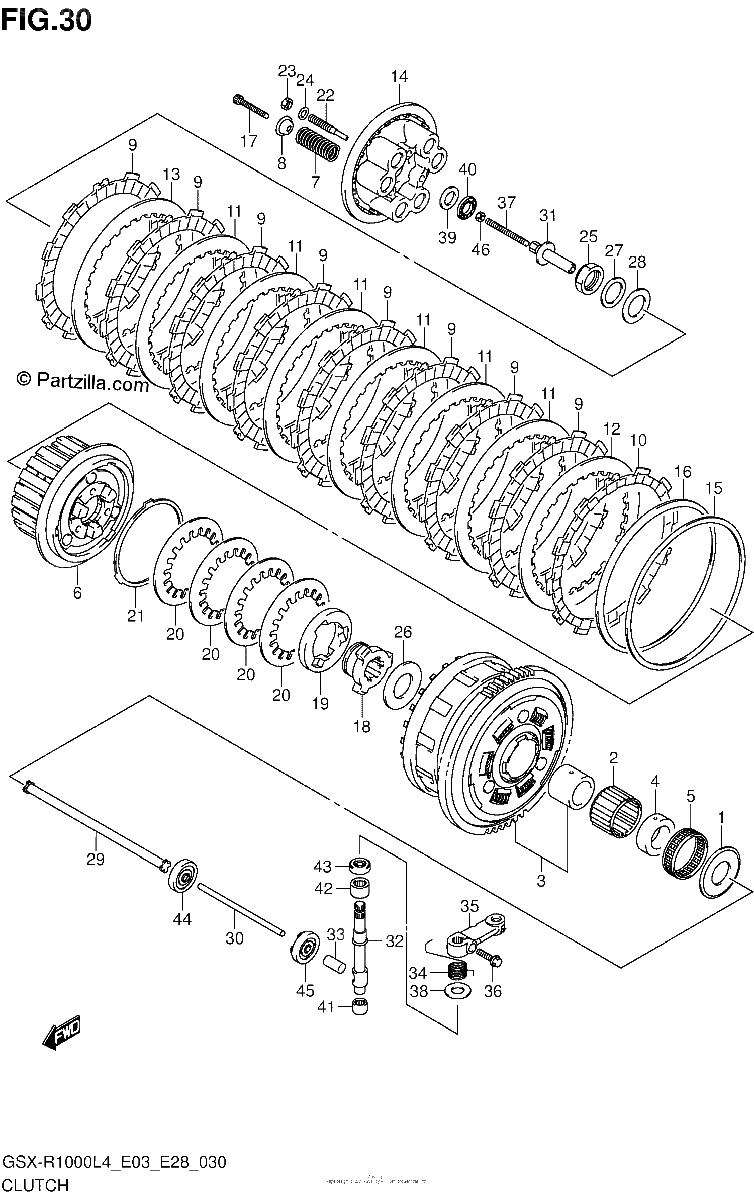

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WASHER (25X54X2.4)
$19.03¢9 513
#2
BEARING (35X40X26.8)
$36.69¢18 344
#3
GEAR ASSY, PRIMARY DRIVEN
$700.38¢350 188
#4
SPACER, OIL PUMP DRIVE
$55.98¢27 988
#5
BEARING (35X40X12)
$30.71¢15 356
#6
HUB, CLUTCH SLEEVE
$312.13¢156 063
#7
SPRING, CLUTCH
$14.47¢7 238
#8
WASHER, CLUTCH SPRING
$7.66¢3 831
#9
PLATE, CLUTCH DRIVE NO.1 | T:3.3
$34.41¢17 206
#10
PLATE, CLUTCH DRIVE NO.2 | T:3.3
$44.79¢22 394
#11
PLATE, CLUTCH DRIVEN NO.1 | T:2.3
$23.59¢11 794
#12
PLATE, CLUTCH DRIVEN NO.2 | T:2.3
$21.75¢10 875
#13
PLATE, CLUTCH DRIVEN NO.3 | T:2.6
$24.38¢12 188
#14
DISC, CLUTCH PRESSURE
$107.59¢53 794
#15
SEAT, WAVE WASHER
$23.44¢11 719
#16
WASHER, CLUTCH PLATE WAVE
$33.69¢16 844
#17
BOLT, CLUTCH SPRING
$4.00¢2 000
#18
CAM, CLUTCH DRIVE
$190.50¢95 250
#19
CAM, CLUTCH DRIVEN
$160.91¢80 456
#20
WASHER, CAM REACTION WAVE
$18.19¢9 094
#21
WASHER, CAM REACTION SEAT
$20.98¢10 488
#22
LIFTER, CLUTCH PRESSURE DISK
$16.16¢8 081
#23
NUT, CL PRESS DISC
$3.52¢1 763
#24
SHIM (8.8X14X1)
$2.50¢1 250
#25
NUT
$15.53¢7 763
#26
WASHER (25X50X2.5)
$13.85¢6 925
#27
WASHER (25X41X2.5)
$13.75¢6 875
#28
WASHER
$6.04¢3 019
#29
ROD, CLUTCH
$25.86¢12 931
#30
ROD, CLUTCH PUSH, LH
$26.19¢13 094
#31
PIECE, CLUTCH PUSH
$77.10¢38 550
#32
CAMSHAFT, CLUTCH RELEASE
$76.81¢38 406
#33
CAP, CLUTCH PUSH ROD
$13.04¢6 519
#34
SPRING, CLUTCH RELEASE RETURN
$3.88¢1 938
#35
ARM, CLUTCH RELEASE
$77.04¢38 519
#36
BOLT (6X20)
$3.24¢1 619
#37
SCREW (6X73)
$8.09¢4 044
#38
WASHER (10.5X24X1)
$2.42¢1 213
#39
WASHER (15.5X28X1)
$4.58¢2 288
#40
BEARING (15X28X2)
$9.75¢4 875
#41
BEARING (10X14X10)
$15.90¢7 950
#42
BEARING (12X18X12)
$8.59¢4 294
#43
OIL SEAL (10X20X6)
$9.38¢4 688
#44
OIL SEAL (6X34X10.5)
$19.75¢9 875
#45
OIL SEAL (10X17X5)
$3.96¢1 981
#46
NUT
$2.39¢1 194
