FUEL TANK GSX R1000L4 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

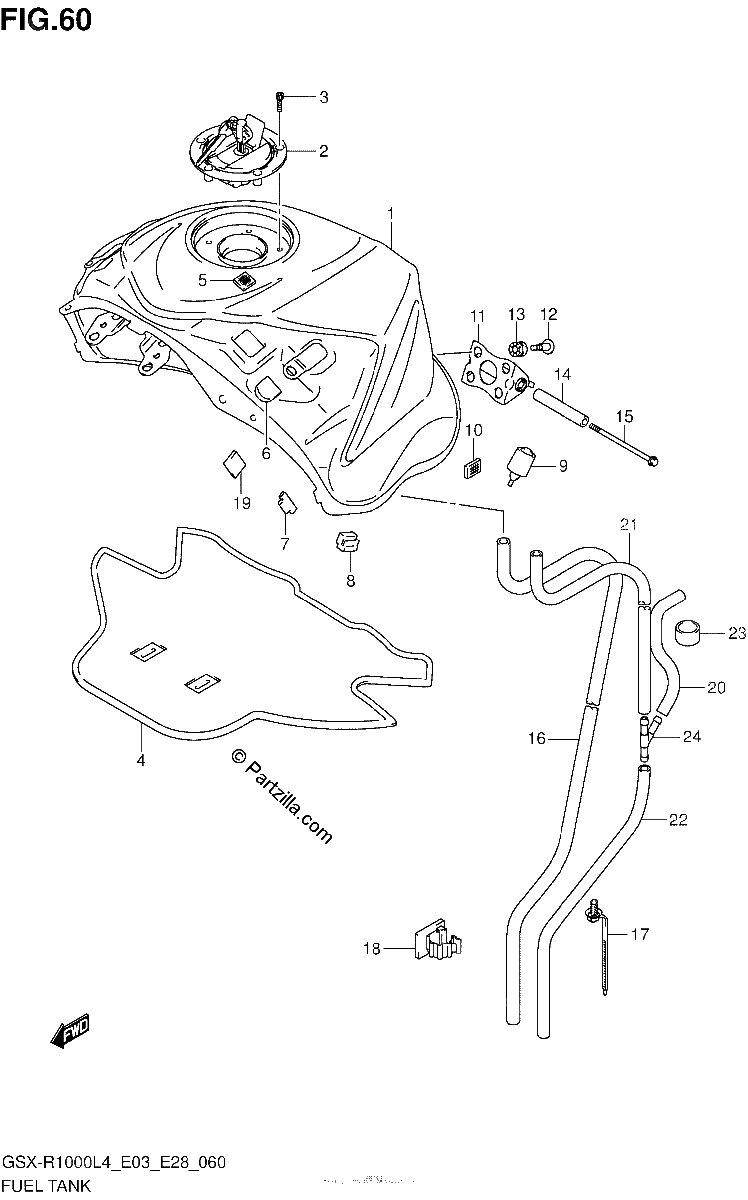

Diagrama de FUEL TANK GSX R1000L4 E28

Repuestos

#1
44100-47H01-YVB
TANK ASSY, FUEL (BLACK) | FOR KGL
$1846.90¢923 450
1
#1
44100-47H01-YSF
TANK ASSY, FUEL (BLUE) | FOR GLR
$1878.67¢939 337
1
#2
44200-16850
CAP SET, FUEL TANK
$129.67¢64 837
1
#3
09106-05017
BOLT (5X20)
$3.36¢1 679
1
#4
44191-47H00
SHIELD, FUEL TANK HEAT
No Disponible
1
#5
44572-44G00
FASTENER
$11.17¢5 583
1
#6
09329-18001
CUSHION
$2.27¢1 133
1
#7
44276-21H00
CUSHION, FUEL TANK COVER
$6.54¢3 272
1
#8
44541-41G00
CUSHION, SIDE
$6.55¢3 278
1
#9
44542-41G00
CUSHION, FUEL TANK REAR
$8.44¢4 220
1
#10
44572-13G00
FASTENER
$12.13¢6 066
1
#11
44530-41G01
BRACKET, FUEL TANK REAR
$50.37¢25 185
1
#12
09139-06191
SCREW (6X22)
$4.42¢2 208
1
#13
09320-08071
CUSHION
$3.66¢1 829
1
#14
44561-18G00
SPACER, FUEL TANK REAR
$18.61¢9 304
1
#15
09106-06119
BOLT (6X110)
$6.24¢3 122
1
#16
44423-47H00
HOSE, DRAIN
No Disponible
1
#17
09407-17403
CLAMP (L:154)
$5.54¢2 772
1
#18
09403-14311
.CLAMP
$5.85¢2 927
1
#19
61544-94500
CUSHION, HEAT SHIELD
$1.93¢966
1
#20
44424-15H10
HOSE, BREATHER NO.3
$17.04¢8 522
1
#21
44424-47H00
HOSE, FUEL TANK BRTHR NO.1
No Disponible
1
#22
44424-47H10
HOSE, FUEL TANK BRTHR NO.2
$10.33¢5 164
1
#23
09352-12163-600
HOSE (12X16X600) | L:600-10
No Disponible
1
#24
09367-06007
3 WAY
$3.81¢1 903
1
