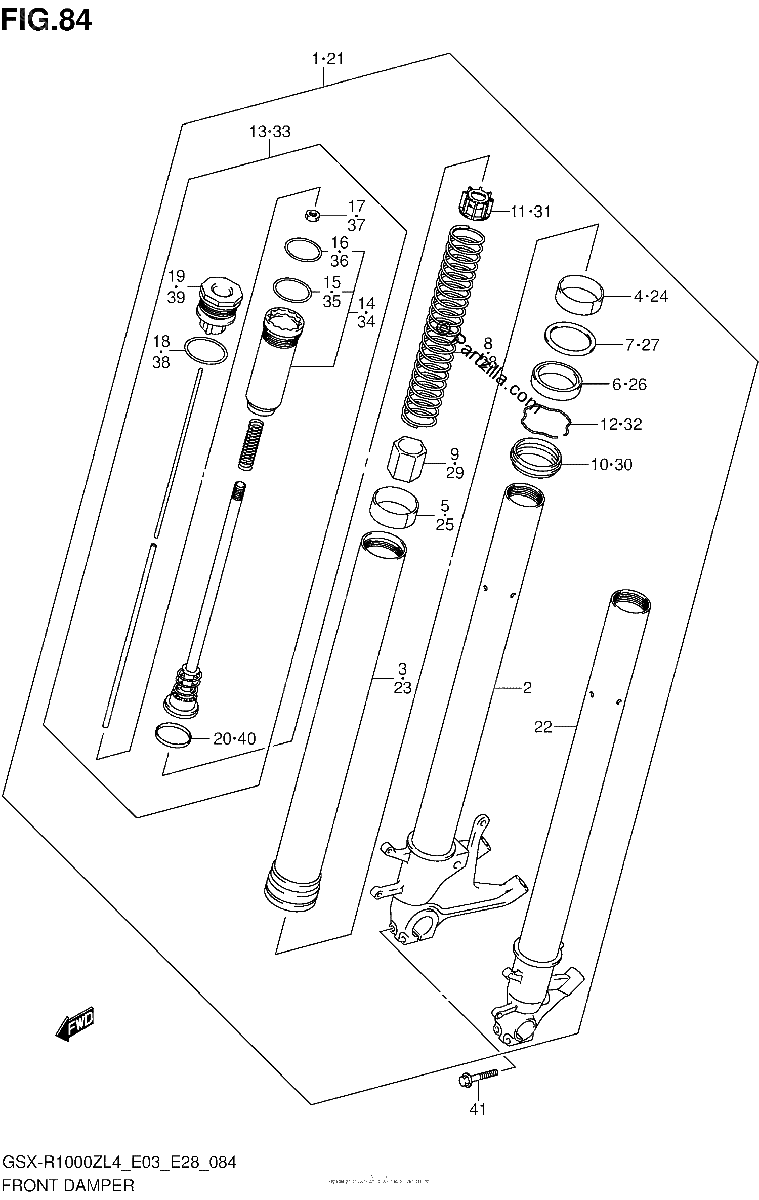

FRONT DAMPER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
$3337.56¢1 668 782
#2
TUBE, INNER RH
$931.36¢465 681
#3
TUBE, OUTER
$671.66¢335 829
#4
.BUSH, GUIDE
$15.58¢7 791
#5
.BUSH, SLIDE
$16.65¢8 326
#6
.SEAL, OIL
$29.52¢14 760
#7
.SPACER, SEAL
$9.52¢4 761
#8
.SPRING
No Disponible
#9
.COLLAR, SPRING
$81.22¢40 612
#10
.SEAL, DUST
$29.16¢14 582
#11
.COLLAR, SPRING
No Disponible
#12
.RING
$7.92¢3 962
#13
ROD, PISTON
$890.88¢445 441
#14
..CASE, ROD GUIDE
No Disponible
#15
...RING, PISTON
$22.84¢11 420
#16
...O-RING
$10.32¢5 158
#17
..NUT
No Disponible
#18
..O RING
$7.81¢3 904
#19
BOLT
$222.10¢111 050
#20
..RING, PISTON
$16.01¢8 004
#21
DAMPER ASSY, FRONT FORK LH
$3337.56¢1 668 782
#22
TUBE, INNER LH
$931.36¢465 681
#23
TUBE, OUTER
$671.66¢335 829
#24
.BUSH, GUIDE
$15.58¢7 791
#25
.BUSH, SLIDE
$16.65¢8 326
#26
.SEAL, OIL
$29.52¢14 760
#27
.SPACER, SEAL
$9.52¢4 761
#28
.SPRING
No Disponible
#29
.COLLAR, SPRING
$81.22¢40 612
#30
.SEAL, DUST
$29.16¢14 582
#31
.COLLAR, SPRING
No Disponible
#32
.RING
$7.92¢3 962
#33
ROD, PISTON
$890.88¢445 441
#34
..CASE, ROD GUIDE
No Disponible
#35
...RING, PISTON
$22.84¢11 420
#36
...O-RING
$10.32¢5 158
#37
..NUT
No Disponible
#38
..O RING
$7.81¢3 904
#39
BOLT
$222.10¢111 050
#40
..RING, PISTON
$16.01¢8 004
#41
BOLT
$6.52¢3 260
