REAR COMBINATION LAMP GSX R1000ZL4 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

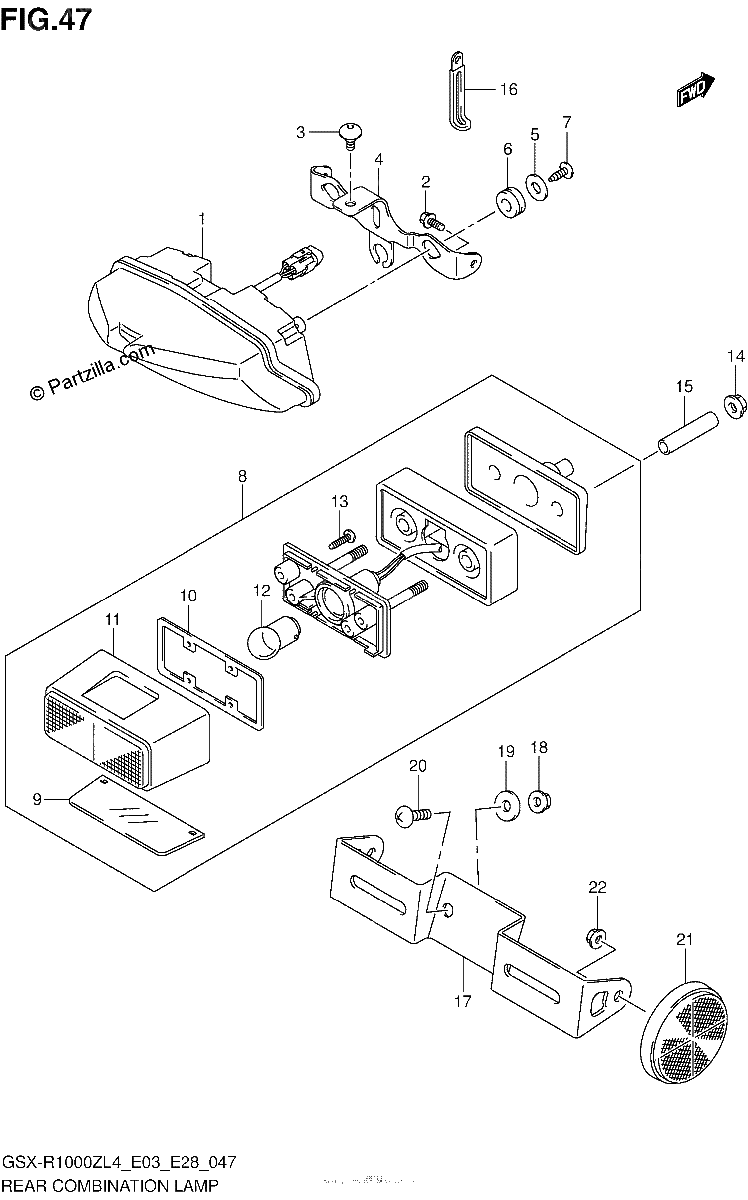

Diagrama de REAR COMBINATION LAMP GSX R1000ZL4 E03

Repuestos

#1
35710-14JA0
LAMP ASSY, REAR COMBINATION
$156.42¢78 212
1
#2
09106-05031
BOLT (5X12)
$3.15¢1 576
1
#3
09139-06152
SCREW (6X12)
$6.41¢3 203
1
#4
35726-47H00
BRACKET, REARCOMBINATION LAMP
$24.32¢12 161
1
#5
09160-05501
WASHER (5.5X20X1.2)
$2.23¢1 116
1
#6
09320-10049
CUSHION
$2.85¢1 426
1
#7
03541-0516A
SCREW
$1.64¢822
1
#8
35910-41G31
LAMP ASSY, LICENSE
$109.86¢54 930
1
#9
35912-41G01
.LENS, LICENSE
$16.50¢8 251
1
#10
35913-41G00
.GASKET
$17.68¢8 838
1
#11
35917-41G00
.COVER, LICENSE LAMP
$43.85¢21 925
1
#12
09471-12058
BULB (12V,5W)
$1.92¢960
1
#13
03211-0416A
.SCREW
$1.71¢857
1
#14
09159-06096
NUT
$3.79¢1 897
1
#15
09180-06356
SPACER (6.5X9X34)
$5.66¢2 829
1
#16
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
#17
35927-41G30
BRACKET, LICENSE PLATE
$18.84¢9 418
1
#18
08316-1006A
NUT
$2.62¢1 311
1
#19
09160-06077
WASHER (6.5X20X1.2)
$2.27¢1 133
1
#20
02142-0616A
SCREW
$1.64¢822
1
#21
35970-14A20
REFLECTOR ASSY, REAR SIDE
$17.05¢8 527
1
#22
08316-1005A
NUT
$2.62¢1 311
1
