REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

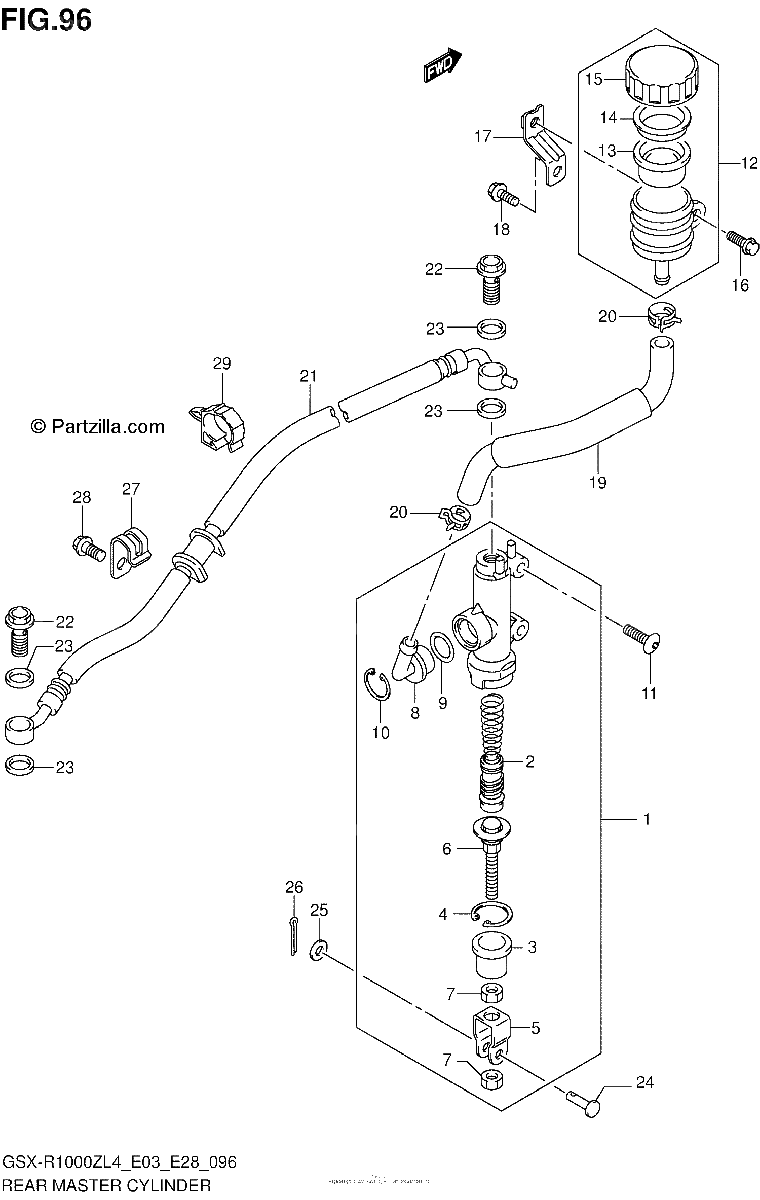

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
69600-47H10
CYLINDER ASSY, REAR MASTER
$385.11¢192 556
1
#2
69600-34810
.PISTON/CAP SET
$70.17¢35 087
1
#3
69691-00A00
..BOOT
$5.99¢2 996
1
#4
69665-47H00
.CIRCLIP
$6.23¢3 117
1
#5
69692-44H00
.YOKE
$20.95¢10 476
1
#6
69670-40A00
ROD, PUSH
$31.82¢15 910
1
#7
69693-05A00
.NUT
$2.13¢1 064
1
#8
69672-00B20
.CONNECTOR
$7.69¢3 847
1
#9
69686-34200
.O RING
$3.36¢1 679
1
#10
69674-00B20
.CIRCLIP
$4.47¢2 237
1
#11
09139-06125
SCREW (6X20)
$3.36¢1 679
1
#12
69740-47H00
TANK ASSY, REAR RESERVOIR
$99.39¢49 697
1
#13
69667-00B20
.DIAPHRAGM
$22.91¢11 454
1
#14
69668-00B20
.PLATE
$9.52¢4 761
1
#15
69669-47H00
.CAP
$10.67¢5 336
1
#16
01547-0616A
BOLT
$2.42¢1 208
1
#17
69750-47H00
BRACKET, RR RESERVOIR TANK
$16.21¢8 108
1
#18
01547-0612A
BOLT
$2.42¢1 208
1
#19
69730-47H10
HOSE, RR RESERVOIR TANK
No Disponible
1
#20
09401-12404
CLIP
$2.84¢1 420
1
#21
69480-47H00
HOSE, REAR BRAKE
$121.78¢60 893
1
#22
09360-10065
UNION
$10.78¢5 388
1
#23
09161-10009
WASHER (10X15X1.5)
$2.20¢1 098
1
#24
09200-06068
PIN (6X18.2)
$4.45¢2 225
1
#25
08322-0106A
WASHER
$2.20¢1 098
1
#26
04111-2015A
COTTER PIN
$1.46¢730
1
#27
69268-21H00
CLAMP, RR BRAKE HOSE
$9.60¢4 801
1
#28
01547-0612A
BOLT
$2.42¢1 208
1
#29
09403-17306
CLAMP
$3.16¢1 581
1
