ELECTRICAL SFV650L4 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

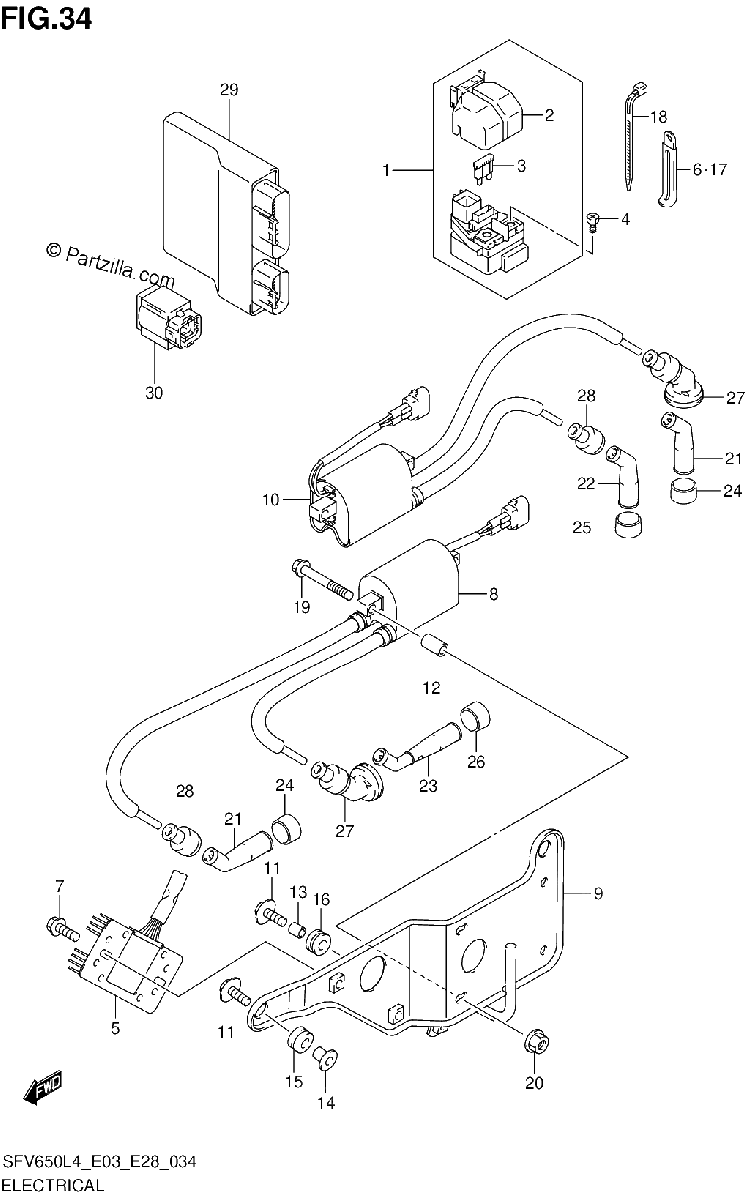

Diagrama de ELECTRICAL SFV650L4 E03

Repuestos

#1
31800-41G00
RELAY ASSY
$110.41¢55 206
1
#2
31861-38G00
.COVER
$6.60¢3 300
1
#3
09481-30501
.FUSE (30A)
$3.05¢1 525
1
#4
09128-06013
SCREW (6X8)
$1.63¢813
1
#5
32800-47H00
RECTIFIER ASSY
$313.79¢156 894
1
#6
09404-06429
CLAMP (L:45)
$2.33¢1 163
1
#7
02162-0616A
BOLT
$2.69¢1 344
1
#8
33410-44H00
COIL ASSY, IGNITION FRONT
$168.56¢84 281
1
#9
33414-44H01
BRACKET, IGNITION COIL REAR
No Disponible
1
#10
33420-44H00
COIL ASSY, IGNITION REAR
$168.56¢84 281
1
#11
09116-06182
BOLT (6X20)
$2.95¢1 475
1
#12
09180-06195
SPACER (6.4X10X18)
$3.43¢1 713
1
#13
09180-06263
SPACER (6.5X9X9)
$2.19¢1 094
1
#14
09180-06331
.SPACER (6.2X8.4X10.9)
$6.25¢3 125
1
#15
09320-08501
CUSHION
$3.85¢1 925
1
#16
09320-09016
CUSHION
$2.56¢1 281
1
#17
09404-06433
CLAMP (L:80)
$2.29¢1 144
1
#18
09407-18402
CLAMP (L:165)
$2.89¢1 444
1
#19
01547-0640A
.BOLT
$3.01¢1 506
1
#20
08316-1006A
NUT
$2.85¢1 425
1
#21
33510-17G00
CAP, SPARK PLUG | FOR CENTER
$39.90¢19 950
1
#22
33510-17G00
CAP, SPARK PLUG | FOR CENTER
$39.90¢19 950
1
#23
33510-20E00
CAP ASSY, SPARK PLUG
$46.71¢23 356
1
#24
33541-23E10
SEAL, SPARK PLUG CAP | FOR CENTER
$8.04¢4 019
1
#25
33541-23E10
SEAL, SPARK PLUG CAP | FOR CENTER
$8.04¢4 019
1
#26
33541-47D00
SEAL, SPARK PLUG
$9.32¢4 663
1
#27
33542-17G01
SEAL, HIGH TENSION CORD | FOR CENTER
$10.96¢5 481
1
#28
33542-38B00
SEAL, HIGH TENSION CORD
$5.17¢2 588
1
#29
32920-44HB0
CONTROL UNIT, FI
$2234.29¢1 117 144
1
#30
33960-06G10
SENSOR ASSY, FUEL CUT
$107.21¢53 606
1
