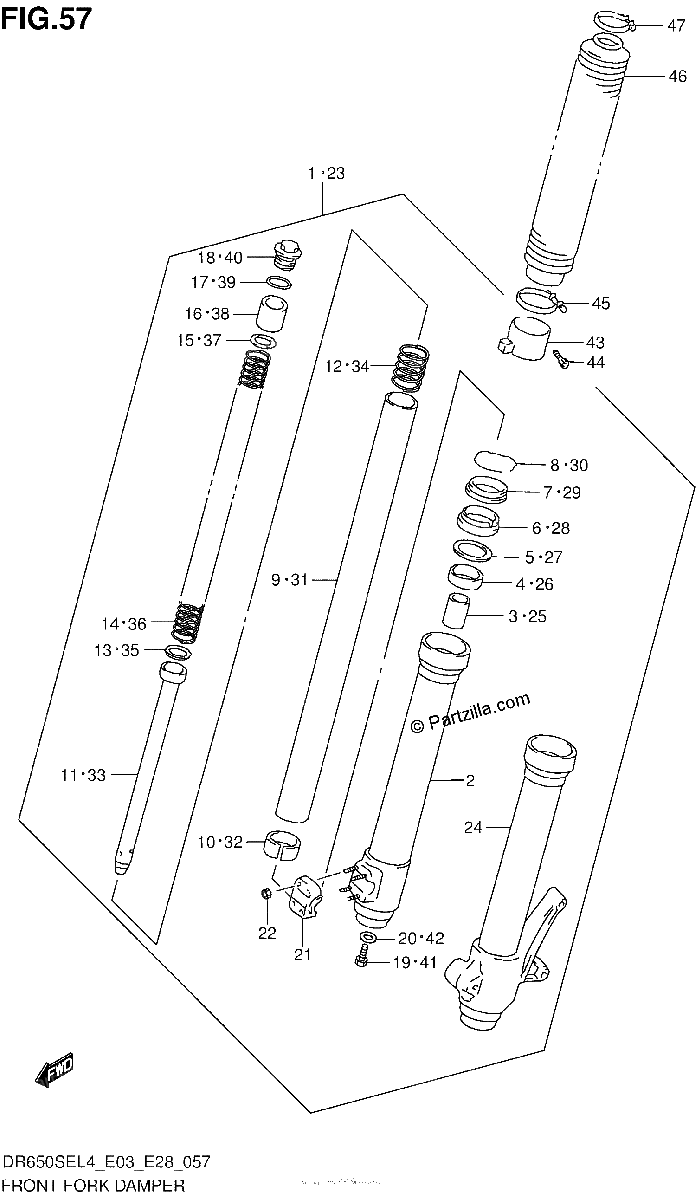

FRONT FORK DAMPER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
No Disponible
#2
.TUBE, OUTER RH
$756.84¢378 419
#3
.PIECE, OIL LOCK
$18.91¢9 453
#4
.METAL, SLIDE
$18.19¢9 096
#5
.WASHER
$5.69¢2 846
#6
.OIL SEAL
$14.96¢7 481
#7
.SEAL, DUST
$11.56¢5 779
#8
.RING, OIL SEAL STOPPER
$5.54¢2 772
#9
.TUBE, INNER
$718.43¢359 214
#10
.PISTON
$23.79¢11 897
#11
.CYLINDER
No Disponible
#12
.SPRING
$12.80¢6 400
#13
.RING
$10.96¢5 480
#14
.SPRING
No Disponible
#15
.WASHER
$8.34¢4 169
#16
.SPACER
$50.08¢25 041
#17
.O RING
$3.05¢1 524
#18
.CAP
$81.48¢40 739
#19
.BOLT, FORK CYLINDER
$4.91¢2 455
#20
.GASKET
$2.46¢1 231
#21
.HOLDER, AXLE RH
$78.60¢39 301
#22
.NUT
$2.73¢1 363
#23
DAMPER ASSY, FRONT FORK LH
No Disponible
#24
.TUBE, OUTER LH
$756.84¢378 419
#25
.PIECE, OIL LOCK
$18.91¢9 453
#26
.METAL, SLIDE
$18.19¢9 096
#27
.WASHER
$5.69¢2 846
#28
.OIL SEAL
$14.96¢7 481
#29
.SEAL, DUST
$11.56¢5 779
#30
.RING, OIL SEAL STOPPER
$5.54¢2 772
#31
.TUBE, INNER
$718.43¢359 214
#32
.PISTON
$23.79¢11 897
#33
.CYLINDER
No Disponible
#34
.SPRING
$12.80¢6 400
#35
.RING
$10.96¢5 480
#36
.SPRING
No Disponible
#37
.WASHER
$8.34¢4 169
#38
.SPACER
$50.08¢25 041
#39
.O RING
$3.05¢1 524
#40
.CAP
$81.48¢40 739
#41
.BOLT, FORK CYLINDER
$4.91¢2 455
#42
.GASKET
$2.46¢1 231
#43
GUIDE, BOOT
$49.70¢24 851
#44
.BOLT
$3.66¢1 829
#45
BAND, BOOT LOWER
$15.50¢7 751
#46
BOOT (BLACK)
$80.04¢40 020
#47
BAND, BOOT UPPER
$19.69¢9 844
