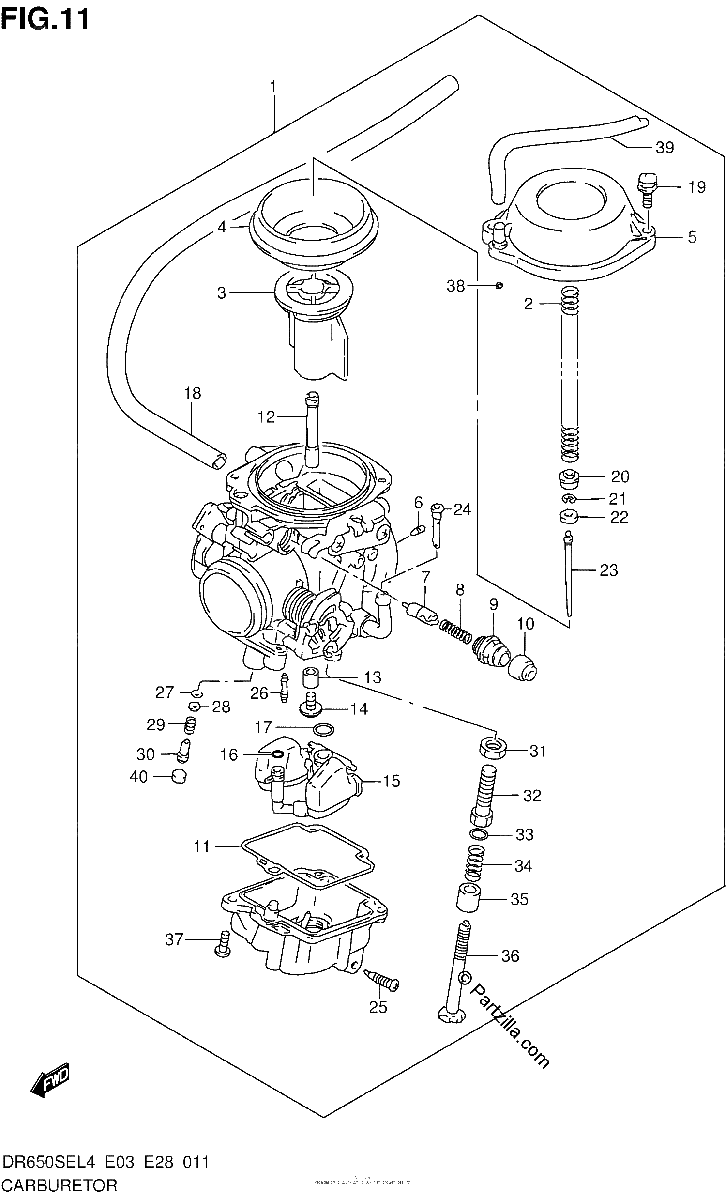

CARBURETOR DR650SEL4 E03
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CARBURETOR ASSY
$1314.28¢657 138
#2
.SPRING
$8.80¢4 400
#3
.VALVE, PISTON
$121.84¢60 919
#4
.DIAPHRAGM
$41.34¢20 669
#5
.COVER, DIAPHRAGM
$66.73¢33 363
#6
.JET, AIR (1.0)
$18.65¢9 325
#7
.PLUNGER ASSY
$35.84¢17 919
#8
.SPRING
$4.25¢2 125
#9
.HOLDER, GUIDE
$8.61¢4 306
#10
.CAP
$5.88¢2 938
#11
.GASKET, FLOAT CHAMBER
$11.66¢5 831
#12
.JET, NEEDLE (Y-5M)
$68.16¢34 081
#13
.RING
$8.96¢4 481
#14
.JET,MAIN (140)
$14.94¢7 469
#15
.FLOAT/NEEDLE VALVE ASSY
$152.27¢76 137
#16
.O RING
$5.34¢2 669
#17
.O RING, NEEDLE VALVE SEAT
$7.14¢3 569
#18
.HOSE (6.5X10.5X275)
$16.35¢8 175
#19
SCREW
$2.96¢1 481
#20
.RING
$8.96¢4 481
#21
.CLIP NEEDLE
$5.69¢2 844
#22
.RING
$6.67¢3 338
#23
.NEEDLE, JET (6F23)
$24.90¢12 450
#24
.FILTER
$12.68¢6 338
#25
SCREW, DRAIN
$5.94¢2 969
#26
.JET,PILOT (42.5)
$10.96¢5 481
#27
.O RING
$5.17¢2 588
#28
.WASHER
$2.34¢1 169
#29
.SPRING
$5.17¢2 588
#30
.SCREW, PILOT
$15.94¢7 969
#31
NUT
$2.39¢1 194
#32
.ADJUSTER
$46.19¢23 094
#33
.WASHER
$4.38¢2 188
#34
.SPRING
$9.56¢4 781
#35
.RING
$9.94¢4 969
#36
.ADJUSTER
$24.96¢12 481
#37
.SCREW
$3.71¢1 856
#38
.O RING
$2.49¢1 244
#39
.HOSE (4.5X8.5X600)
$11.14¢5 569
#40
.PLUG
$5.49¢2 744
