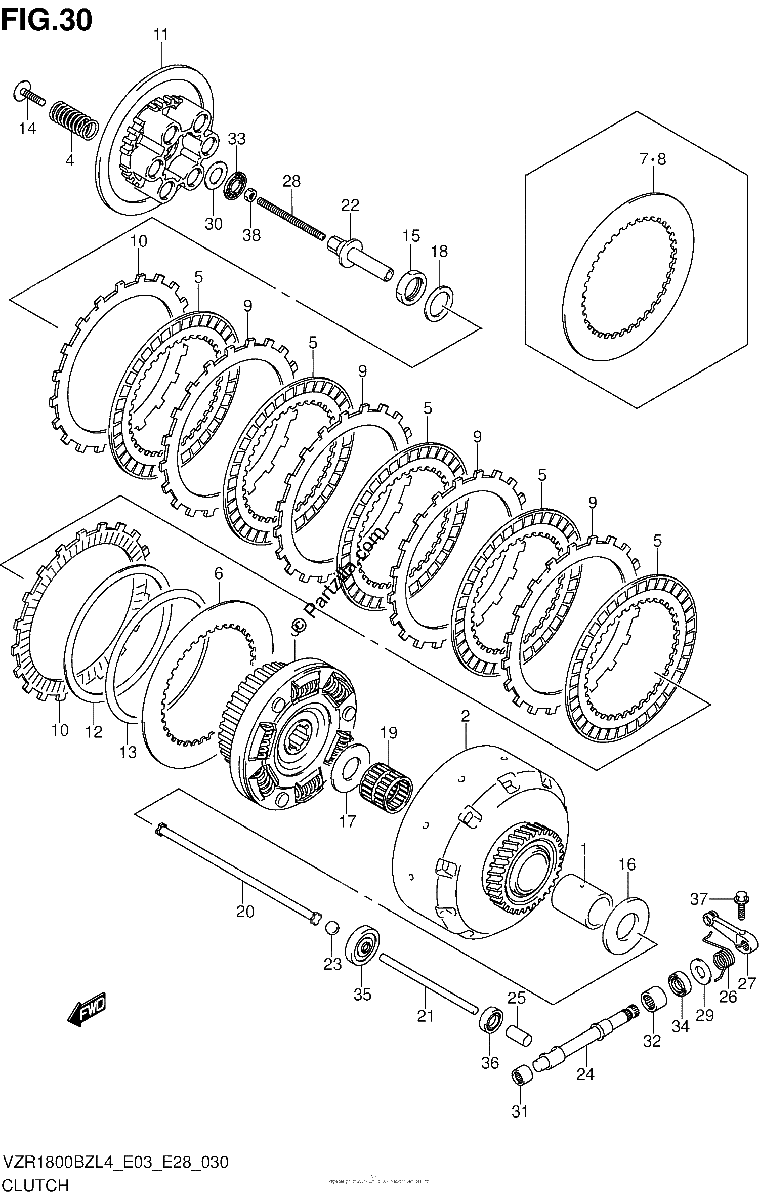

CLUTCH VZR1800BZL4 E03
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SPACER, PRIMARY DRIVE GEAR
$61.78¢30 888
#2
GEAR ASSY, PRIMARY DRIVE
$460.79¢230 394
#3
HUB, CLUTCH SLEEVE
$583.50¢291 750
#4
SPRING, CLUTCH
$8.47¢4 238
#5
PLATE, CLUTCH DRIVE NO.1
$59.56¢29 781
#6
PLATE, CLUTCH DRIVE NO.2
$22.51¢11 256
#7
PLATE, CLUTCH DRIVE NO.3
$22.51¢11 256
#8
PLATE, CLUTCH DRIVE NO.4
$22.51¢11 256
#9
PLATE, CLUTCH DRIVEN NO.1
$25.05¢12 525
#10
PLATE, CLUTCH DRIVEN NO.2
$43.88¢21 938
#11
DISC, CLUTCH PRESSURE
$76.81¢38 406
#12
SEAT, WAVE WASHER
$16.94¢8 469
#13
WASHER, CLUTCH PLATE
$31.01¢15 506
#14
BOLT, CLUTCH SPRING
$3.65¢1 825
#15
NUT
$15.53¢7 763
#16
WASHER (25X50X2.5)
$13.85¢6 925
#17
WASHER (25X50X2.5)
$13.85¢6 925
#18
WASHER
$6.04¢3 019
#19
BEARING (32X37X38.3)
$61.41¢30 706
#20
ROD, CLUTCH
$27.26¢13 631
#21
ROD, CLUTCH PUSH LH
$26.69¢13 344
#22
PIECE, CLUTCH PUSH
$66.16¢33 081
#23
BALL, CLUTCH PUSH
$120.75¢60 375
#24
CAMSHAFT, CLUTCH RELEASE
$79.75¢39 875
#25
CAP, CLUTCH PUSH ROD
$13.04¢6 519
#26
SPRING, CLUTCH RELEASE RETURN
$5.34¢2 669
#27
ARM, CLUTCH RELEASE
$103.46¢51 731
#28
SCREW (6X73)
$8.09¢4 044
#29
WASHER (10.5X24X1)
$2.42¢1 213
#30
WASHER (15.5X28X1)
$4.58¢2 288
#31
BEARING (10X14X10)
$15.90¢7 950
#32
BEARING (12X18X12)
$8.59¢4 294
#33
BEARING (15X28X2)
$9.75¢4 875
#34
OIL SEAL (10X20X6)
$9.38¢4 688
#35
OIL SEAL (6X34X10.5)
$19.75¢9 875
#36
OIL SEAL (10X17X5)
$3.96¢1 981
#37
BOLT
$2.63¢1 313
#38
NUT
$2.39¢1 194
