CYLINDER HEAD REAR VL800CL4 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

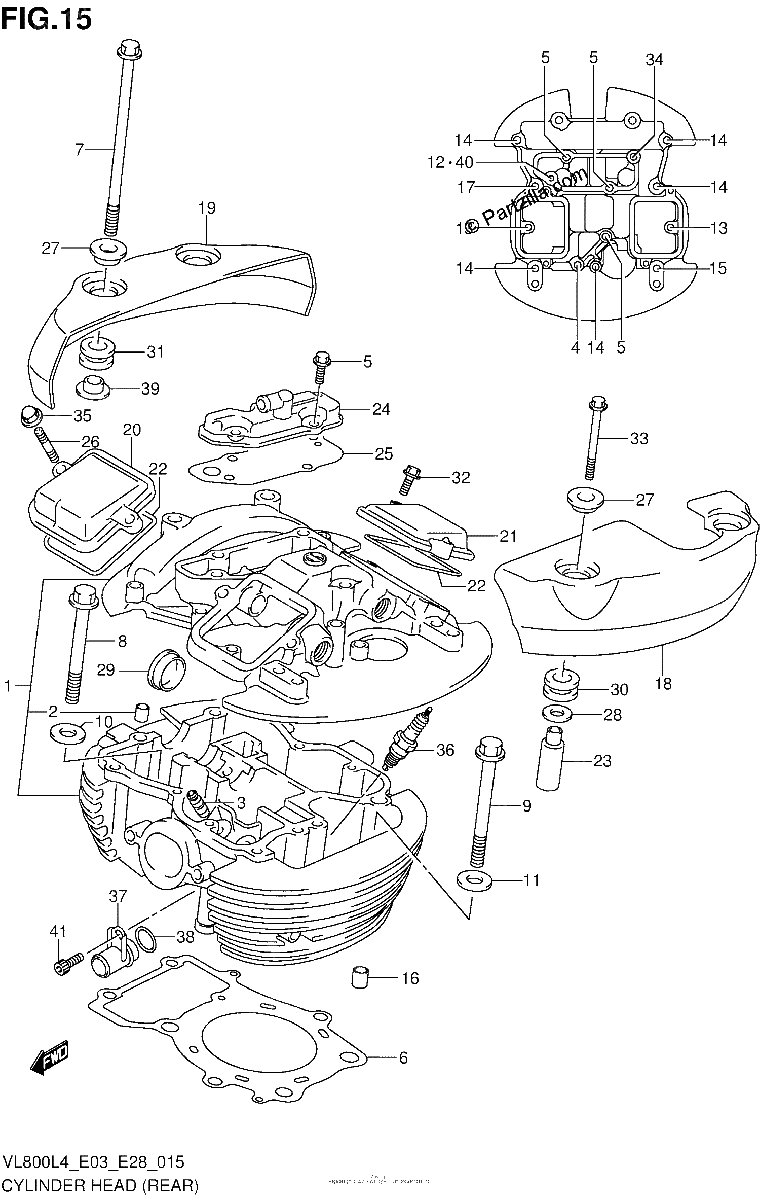

Diagrama de CYLINDER HEAD REAR VL800CL4 E28

Repuestos

#1
11103-39G60
HEAD ASSY, CYLINDER REAR
No Disponible
1
#2
09206-11004
PIN
$6.30¢3 150
1
#3
11115-41F70
GUIDE, VALVE (OS 0.3) | OPT
$55.00¢27 500
1
#4
09103-06304
BOLT (6X50)
$3.34¢1 669
1
#5
09103-06305
BOLT (6X55)
No Disponible
1
#6
11142-41F00
GASKET, CYLINDER HEAD REAR
$47.18¢23 588
1
#7
09103-08370
BOLT (8X250)
$21.27¢10 638
1
#8
09103-10133
BOLT (10X155)
$12.46¢6 231
1
#9
09103-10134
BOLT (10X165)
$12.46¢6 231
1
#10
09160-08130
WASHER (8.5X24X1.6)
$2.63¢1 313
1
#11
09160-10039
WASHER (10.5X22X2.3)
$2.92¢1 463
1
#12
09103-06305
BOLT (6X55)
No Disponible
1
#13
01547-0625A
BOLT
$2.63¢1 313
1
#14
01547-0630A
BOLT
$3.01¢1 506
1
#15
01547-0640A
.BOLT
$3.01¢1 506
1
#16
04211-13189
PIN
$2.85¢1 425
1
#17
07120-0630B
BOLT (L:30)
$4.16¢2 081
1
#18
11173-41FA0
CAP, CYLINDER HEAD COVER RR
No Disponible
1
#19
11174-41F00
CAP, CYLINDER HEAD COVER RR
No Disponible
1
#20
11175-38A11
CAP, INSPECTION INTAKE
$31.15¢15 575
1
#21
11176-38A11
CAP, INSPECTION EXHAUST
$31.15¢15 575
1
#22
11177-38A00
GASKET, INSPECTION CAP
$5.34¢2 669
1
#23
11179-10F10
SPACER, HEAD COVER CAP
$16.41¢8 206
1
#24
11186-41FB0
COVER, BREATHER
No Disponible
1
#25
11187-41F20
GASKET, BREATHER COVER
$10.29¢5 144
1
#26
09108-06102
STUD BOLT
$5.35¢2 675
1
#27
09160-06084
WASHER (6.5X18X1.6)
$2.30¢1 150
1
#28
09160-09016
WASHER (9.5X20X1)
$3.02¢1 513
1
#29
09241-30004
PLUG (OD:30)
$7.77¢3 887
1
#30
09320-09016
CUSHION
$2.56¢1 281
1
#31
09320-13015
CUSHION
$3.65¢1 825
1
#32
01547-0620A
BOLT
$2.63¢1 313
1
#33
01547-06557
BOLT
$3.05¢1 525
1
#34
01547-0620A
BOLT
$2.63¢1 313
1
#35
09159-06093
NUT
No Disponible
1
#36
09482-00354
SPARK PLUG (DPR7EA-9) | NGK
$3.96¢1 981
1
#36
09482-00335
SPARK PLUG (X24EPR-U9) | OPT
$6.39¢3 194
1
#36
09482-00334
SPARK PLUG (DPR8EA-9) | OPT
$3.65¢1 825
1
#36
09482-00331
SPARK PLUG (X27EPR-U9) | OPT
$6.94¢3 469
1
#36
09482-00330
SPARK PLUG (DPR9EA-9) | OPT
$3.71¢1 856
1
#37
17891-41F10
UNION, CYLINDER HEAD JOINT
$24.81¢12 406
1
#38
09280-16005
O RING (D:2.4,ID:15.8)
$2.92¢1 463
1
#39
09301-08007
BUSH
$8.91¢4 456
1
#40
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#41
07130-0612A
BOLT
$3.25¢1 625
1
