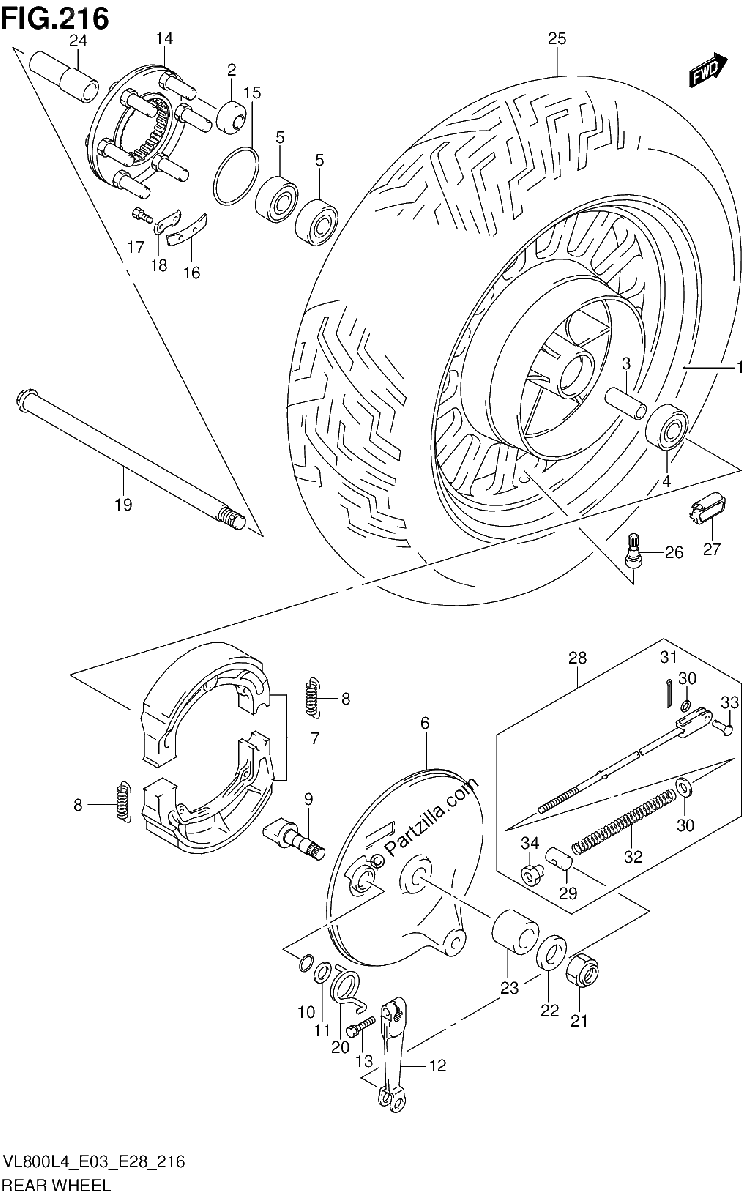

REAR WHEEL VL800CL4 E28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WHEEL, REAR (15M/CXMT4.00)
$1743.80¢871 901
#2
.BUSH
$14.37¢7 187
#3
SPACER (17.3X25X99)
No Disponible
#4
BEARING
$17.05¢8 527
#5
BEARING
$24.43¢12 213
#6
PANEL, REAR BRAKE ANCHOR
$373.90¢186 950
#7
SHOE SET, BRAKE
$53.05¢26 525
#8
SPRING, SHOE
$5.06¢2 530
#9
CAM, BRAKE
$38.20¢19 101
#10
O RING (D:2.4,ID:14.8)
$2.12¢1 058
#11
WASHER (15.5X24X1.6)
$3.09¢1 547
#12
LEVER, BRAKE CAM
$58.02¢29 009
#13
BOLT
$3.66¢1 829
#14
JOINT, HUB DRIVEN
$338.88¢169 441
#15
O RING (D:2.1,ID:65)
$4.48¢2 242
#16
WASHER, THRUST
$3.36¢1 679
#17
BOLT (6X16)
$1.90¢949
#18
WASHER
$3.79¢1 897
#19
AXLE, REAR (L:302)
$104.73¢52 365
#20
SPRING
$11.15¢5 577
#21
NUT
$10.87¢5 434
#22
WASHER (17X30X3.2)
$2.96¢1 478
#23
SPACER, RH
$28.26¢14 128
#24
SPACER, LH
$28.66¢14 329
#25
TIRE, RR, 170/80-15M/C 77H IRC | GS-23R D
No Disponible
#26
VALVE ASSY, WHEEL RIM (TR412)
$9.71¢4 853
#27
BALANCER, WHEEL NO.1 | 10G
$7.22¢3 611
#27
BALANCER, WHEEL NO.2 | 20G
$4.42¢2 208
#27
BALANCER, WHEEL NO.3 | 30G
$5.15¢2 576
#28
ROD ASSY, REAR BRAKE
$31.53¢15 767
#29
.PIN (13X18)
$3.75¢1 874
#30
.WASHER
$2.69¢1 346
#31
COTTER PIN
$1.46¢730
#32
.SPRING
$2.39¢1 196
#33
.PIN (10X16)
$2.38¢1 190
#34
.NUT
$3.36¢1 679
