CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

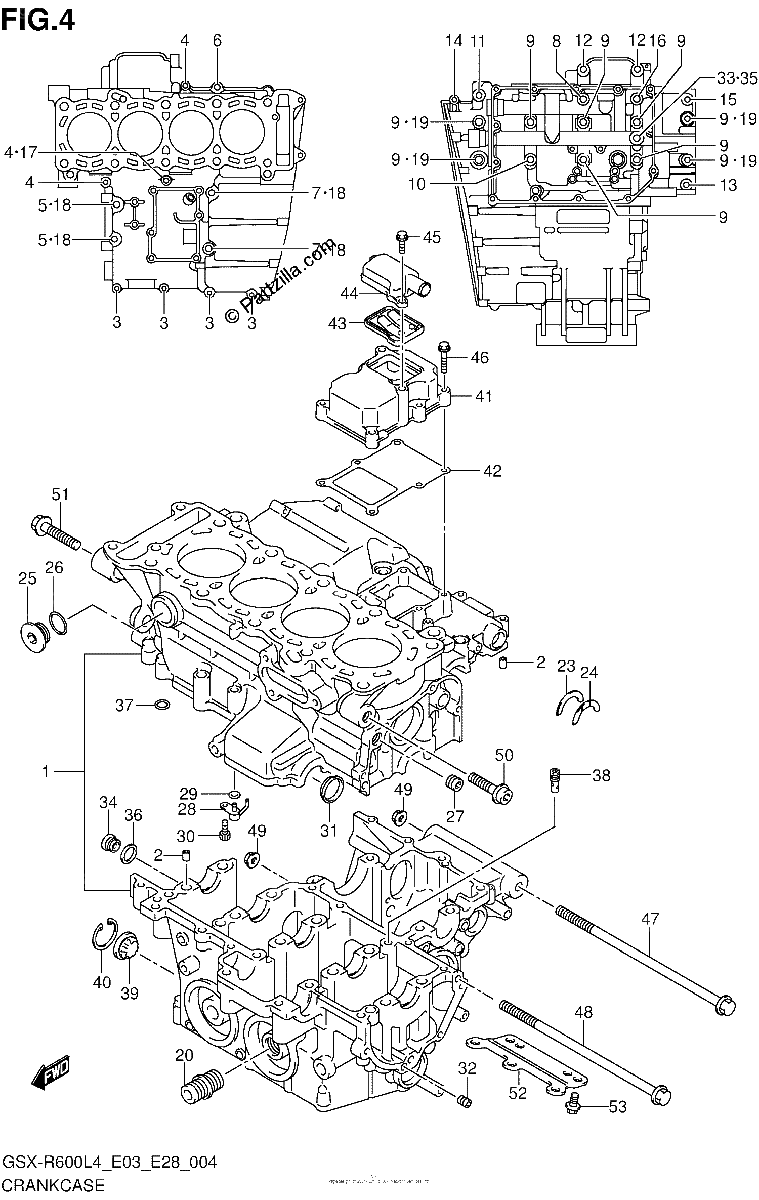

Diagrama de CRANKCASE

Repuestos

#1
11302-14810
CRANKCASE SET
$3523.99¢1 761 994
1
#2
11319-33E50
.PIN, CRANKCASE
$6.52¢3 262
1
#3
01547-0635A
BOLT
$3.01¢1 506
1
#4
01547-0665A
BOLT
$3.05¢1 525
1
#5
01550-0850A
.BOLT
$4.81¢2 406
1
#6
01550-0860A
.BOLT
$5.47¢2 738
1
#7
01550-0875A
.BOLT
$4.24¢2 119
1
#8
09103-08097
.BOLT (8X105)
$4.11¢2 056
1
#9
09103-09012
.BOLT (9X95)
$10.30¢5 150
1
#10
09103-09014
.BOLT (9X80)
$13.25¢6 625
1
#11
01550-0855A
.BOLT
$3.65¢1 825
1
#12
09103-08339
BOLT (8X55)
$4.16¢2 081
1
#13
01547-0630A
BOLT
$3.01¢1 506
1
#14
01547-0645A
BOLT
$3.16¢1 581
1
#15
01550-0865A
.BOLT
$4.19¢2 094
1
#16
01550-0885A
.BOLT
$5.47¢2 738
1
#17
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#18
09168-08016
.GASKET (8.2X14X1)
$2.14¢1 069
1
#19
09168-10031
.GASKET (10.2X20X2.3)
$2.63¢1 313
1
#20
16591-06B01
.UNION, OIL FILTER STAND
$8.40¢4 200
1
#21
09280-00043
.O RING (D:1.9,ID:99.5) | DRIVE SHAFT BEARING
$49.47¢24 737
1
#22
09139-06151
.BOLT (6X20) | DRIVE SHAFT BEARING
$5.41¢2 706
1
#23
12228-17E00-0D0
.BEARING, THRUST LH (GREEN)
$11.66¢5 831
1
#24
12228-17E00-0B0
.BEARING, THRUST LH (BLACK)
$11.88¢5 938
1
#24
12228-17E00-0A0
.BEARING, THRUST LH (RED)
$15.38¢7 688
1
#24
12228-17E00-0D0
.BEARING, THRUST LH (GREEN)
$11.66¢5 831
1
#24
12228-17E00-0E0
.BEARING, THRUST LH (YELLOW)
$15.38¢7 688
1
#24
12228-17E00-0F0
.BEARING, THRUST LH (WHITE)
$15.66¢7 831
1
#24
12228-17E00-0C0
.BEARING, THRUST LH (BLUE)
$11.88¢5 938
1
#25
11318-35F00
.PLUG, WATER JACKET
$22.65¢11 325
1
#26
09280-20002
.O RING (D:3.1,ID:19.4)
$2.49¢1 244
1
#27
11329-02F00
JET, OIL GALLERY
$9.06¢4 531
1
#28
11390-35F00
JET, PISTON COOLING
$29.80¢14 900
1
#29
09280-04004
O RING (D:1.2,ID:4)
$2.21¢1 106
1
#30
09106-06075
BOLT (6X12)
$3.25¢1 625
1
#31
09241-26004
PLUG
$9.69¢4 844
1
#32
09246-05006
PLUG
$5.59¢2 794
1
#33
09248-12004
PLUG (L:12)
$10.44¢5 219
1
#34
09248-16013
PLUG
$5.74¢2 869
1
#35
09168-12002
GASKET (12.1X16.2X3.7)
$2.06¢1 031
1
#36
09168-16002
GASKET (16X22X2)
$2.46¢1 231
1
#37
09280-08012
O RING (D:1.9,ID:7.8)
$4.33¢2 163
1
#38
09493-28012
JET (140)
$22.15¢11 075
1
#39
09103-06188
BOLT (6X10)
$3.81¢1 906
1
#39
11971-33210
.LENS, OIL LEVEL CHECK
$21.70¢10 850
1
#40
08331-4130A
CIRCLIP
$3.56¢1 781
1
#41
11371-01H00
COVER, BREATHER
No Disponible
1
#42
11484-01H00
GASKET, BREATHER COVER
$7.30¢3 650
1
#43
13150-01H01
VALVE ASSY, BREATHER REED
$94.38¢47 188
1
#44
11372-01H00
COVER, VALVE
No Disponible
1
#45
01547-0616A
BOLT
$2.63¢1 313
1
#46
01547-0630A
BOLT
$3.01¢1 506
1
#47
09103-10041-A05
BOLT (10X215)
$12.21¢6 106
1
#48
09103-10145
BOLT (10X205)
$20.39¢10 194
1
#49
09159-10115
NUT
$4.19¢2 094
1
#50
09106-10069
BOLT (10X45)
$4.97¢2 488
1
#51
09106-10070
BOLT (10X55)
$4.97¢2 488
1
#52
11322-01H00
PLATE, LOWER
$17.31¢8 656
1
