REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

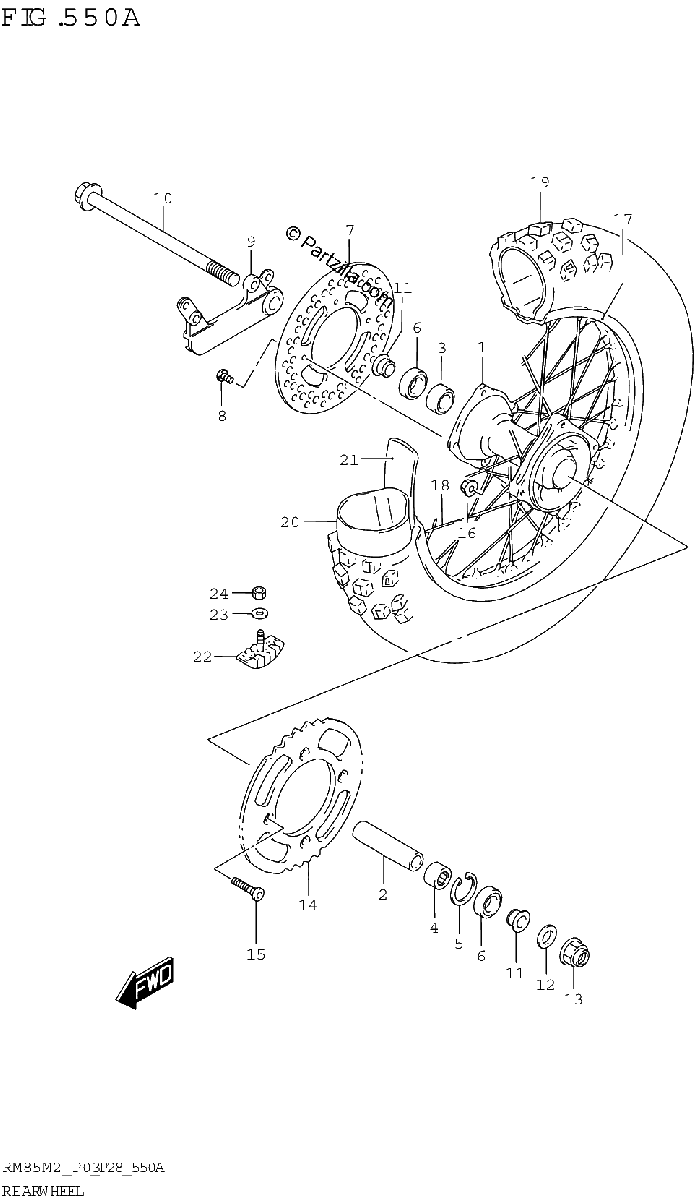

Diagrama de REAR WHEEL

Repuestos

#1
64111-02B43
HUB, REAR WHEEL
$356.24¢178 118
1
#2
64731-02B40
SPACER, REAR HUB BEARING
$23.41¢11 707
1
#3
08123-6002B
BEARING,REAR HUB RH
$23.57¢11 788
1
#4
09262-15021
BEARING (15X35X11)
$26.37¢13 185
1
#5
08331-41359
CIRCLIP
$2.74¢1 368
1
#6
09283-20024
OIL SEAL (20X35X7)
$5.61¢2 806
1
#7
69211-03B00
DISC, REAR BRAKE
$247.97¢123 987
1
#8
02122-0612B
SCREW
$2.23¢1 116
1
#9
69721-03B10
BRACKET, REAR CALIPER
$214.11¢107 054
1
#10
64711-03B70
AXLE, REAR
$40.71¢20 355
1
#11
64741-03B80
SPACER, AXLE
$32.77¢16 388
1
#12
09160-14062
WASHER (14.5X30X3.2)
$3.35¢1 673
1
#13
08319-3114A
NUT
$10.60¢5 302
1
#15
09120-08010
BOLT (8X30.5)
$2.79¢1 397
1
#16
09159-08067
NUT
$6.03¢3 013
1
#17
65311-02B50
RIM, WHEEL (1.60X14 AL WHT)
$382.32¢191 159
1
#18
65320-02B60
SPOKE ASSY, REAR WHEEL
$77.71¢38 853
1
#19
65110-02B70
TIRE, REAR
No Disponible
1
#20
65200-02B70
TUBE ASSY, INNER
$58.07¢29 037
1
#21
65261-02B40
PROTECTOR, INNER TUBE
$8.25¢4 123
1
#22
65270-43D00
STOPPER, BEAD (1.85)
$72.97¢36 484
1
#23
08322-0108B
WASHER
$2.84¢1 420
1
#24
08310-0008B
NUT
$3.28¢1 639
1
#14-1
64511-03B00
SPROCKET, REAR (NT:47)
$156.75¢78 373
1
#14-2
64511-03B10
SPROCKET, REAR (NT:46) | OPT
$162.72¢81 363
1
#14-3
64511-03B20
SPROCKET, REAR (NT:48) | OPT
$162.72¢81 363
1
#14-4
64511-03B30
SPROCKET, REAR (NT:49) | OPT
No Disponible
1
