SIDE COWLING GSX R1000RA

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

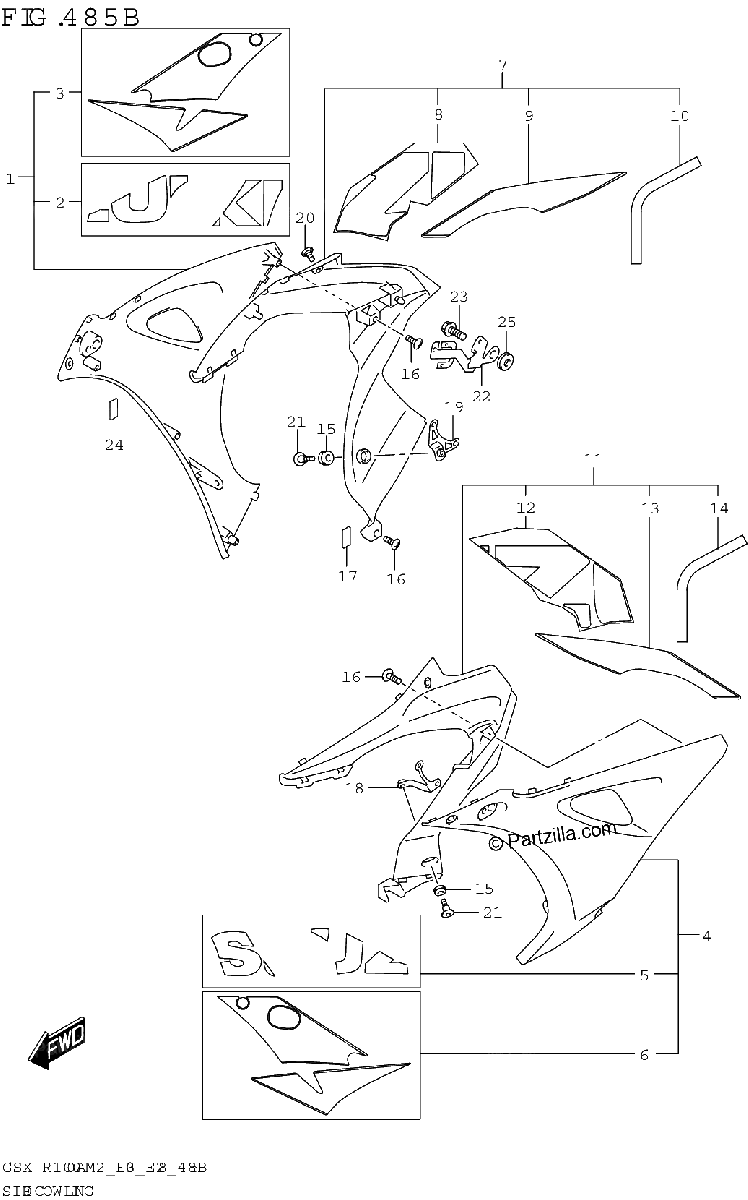

Diagrama de SIDE COWLING GSX R1000RA

Repuestos

#10
94477-17K00
CUSHION
$6.03¢3 013
1
#1-1
94470-17K80-4TX
COWLING,SIDE RH (BLACK) *{BODY COLOR:4TX}*
$309.23¢154 613
1
#1-2
94470-17K80-QT7
COWLING,SIDE,R (GRAY) *{BODY COLOR:CB8}*
$306.29¢153 144
1
#14
94487-17K00
CUSHION
$2.79¢1 394
1
#15
09320-09016
CUSHION
$2.56¢1 281
1
#16
03541-0516A
SCREW
$1.79¢894
1
#17
94477-17K20
CUSHION, SIDE REAR RH NO.3
$2.78¢1 388
1
#18
94520-17K00
BRACKET, UNDER COWL LH
$14.72¢7 363
1
#19
94540-17K00
BRACKET, UNDER COWL RH
$4.68¢2 338
1
#20
09139-05091
SCREW
$2.63¢1 313
1
#2-1
68680-17K30-HSE
.TAPE SET,SIDE COWL CTR RH (S LVER,BLACK) *{BODY COLOR:4TX}*
$52.10¢26 050
1
#21
09139-06206
SCREW
$3.90¢1 950
1
#2-2
68680-17K30-CGA
.TAPE SET,SIDE COWL CTR,R (BL CK,GRAY) *{BODY COLOR:CB8}*
$50.50¢25 250
1
#22
94530-17K00
BRACKET, SIDE COWL RH
$36.59¢18 294
1
#23
01550-0616A
BOLT
$2.56¢1 281
1
#24
36930-60A10
CUSHION, COVER
$3.65¢1 825
1
#25
94478-14J00
CUSHION
$7.05¢3 525
1
#3-1
68680-17K90-B9E
.TAPE SET,SIDE COWL RH (ORANG ,BLACK) *{BODY COLOR:4TX}*
$50.50¢25 250
1
#3-2
68680-17K90-CGA
.TAPE SET,SIDE COWLING,R (BLA K,GRAY) *{BODY COLOR:CB8}*
$50.50¢25 250
1
#4-1
94480-17K80-4TX
COWLING,SIDE LH (BLACK) *{BODY COLOR:4TX}*
$309.23¢154 613
1
#4-2
94480-17K80-QT7
COWLING,SIDE,L (GRAY) *{BODY COLOR:CB8}*
$306.29¢153 144
1
#5-1
68690-17K30-HSE
.TAPE SET,SIDE COWL CTR LH (S LVER,BLACK) *{BODY COLOR:4TX}*
$50.50¢25 250
1
#5-2
68690-17K30-CGA
.TAPE SET,SIDE COWL CTR,L (BL CK,GRAY) *{BODY COLOR:CB8}*
$50.50¢25 250
1
#6-1
68690-17K90-B9E
.TAPE SET,SIDE COWL LH (ORANG ,BLACK) *{BODY COLOR:4TX}*
$50.50¢25 250
1
#6-2
68690-17K90-CGA
.TAPE SET,SIDE COWL,L (BLACK, RAY) *{BODY COLOR:CB8}*
$50.50¢25 250
1
#7-1
94450-17K50-4TX
COWLING,SIDE RR RH (BLACK) *{BODY COLOR:4TX}*
$296.84¢148 419
1
#7-2
94450-17K50-YKV
COWLING,SIDE RR RH (BLACK) *{BODY COLOR:YKV}*
$296.84¢148 419
1
#8-1
68680-17K40-HSE
.TAPE SET,SIDE COWL RR RH (SI VER,BLACK) *{BODY COLOR:4TX}*
$31.15¢15 575
1
#8-2
68680-17K40-CRU
.TAPE SET,SIDE COWL RR RH (BL CK) *{BODY COLOR:YKV}*
$31.15¢15 575
1
#9-1
68685-17K40-CC1
.TAPE,SIDE COWL RR,R (SILVER, LACK) *{BODY COLOR:4TX}*
$14.65¢7 325
1
#9-2
68685-17K40-CRU
.TAPE,SIDE COWL RR RH (BLACK) *{BODY COLOR:YKV}*
$26.60¢13 300
1
#11-1
94460-17K50-4TX
COWLING,SIDE RR LH (BLACK) *{BODY COLOR:4TX}*
$296.84¢148 419
1
#11-2
94460-17K50-YKV
COWLING,SIDE RR LH (BLACK) *{BODY COLOR:YKV}*
$296.84¢148 419
1
#12-1
68690-17K40-HSE
.TAPE SET,SIDE COWL RR LH (SI VER,BLACK) *{BODY COLOR:4TX}*
$31.15¢15 575
1
#12-2
68690-17K40-CRU
.TAPE SET,SIDE COWL RR LH (BL CK) *{BODY COLOR:YKV}*
$32.06¢16 031
1
#13-1
68695-17K40-CC1
.TAPE,SIDE COWL RR,L (SILVER, LACK) *{BODY COLOR:4TX}*
$26.60¢13 300
1
#13-2
68695-17K40-CRU
.TAPE,SIDE COWL RR LH (BLACK) *{BODY COLOR:YKV}*
$27.41¢13 706
1
