CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

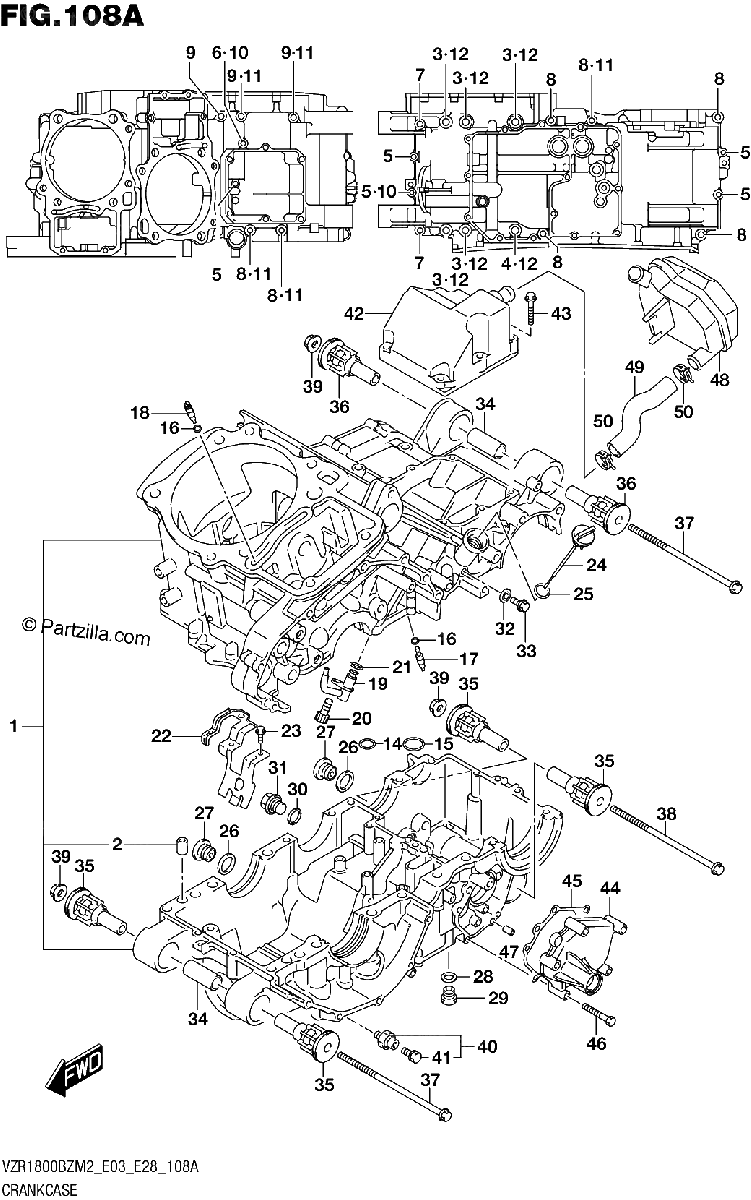

Diagrama de CRANKCASE

Repuestos

#1
11300-48881
CRANKCASE SET
$5834.10¢2 917 050
1
#2
11319-33E50
.PIN, CRANKCASE
$6.52¢3 262
1
#3
09103-10110
.BOLT (10X100)
$11.06¢5 531
1
#4
09103-10406
.BOLT (10X115)
No Disponible
1
#5
01547-0645A
BOLT
$3.16¢1 581
1
#6
01547-0670A
.BOLT
$3.65¢1 825
1
#7
07130-0850A
.BOLT
$5.47¢2 738
1
#8
07130-0865A
.BOLT
No Disponible
1
#9
07130-0885A
.BOLT
No Disponible
1
#10
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#11
09168-08016
.GASKET (8.2X14X1)
$2.14¢1 069
1
#12
09168-10031
.GASKET (10.2X20X2.3)
$2.63¢1 313
1
#14
09280-08012
O RING (D:1.9,ID:7.8)
$4.33¢2 163
1
#15
09280-12009
O RING (D:1.9,ID:12.6)
$3.74¢1 869
1
#16
09280-04004
O RING (D:1.2,ID:4)
$2.21¢1 106
1
#17
09493-80005
JET(8)
$21.34¢10 669
1
#18
09493-80005
JET(8)
$21.34¢10 669
1
#19
11390-48G00
JET, PISTON COOLING
$89.10¢44 550
1
#20
09106-06075
BOLT (6X12)
$3.25¢1 625
1
#21
09280-05007
O RING (D:1.2,ID:4.7)
$2.52¢1 263
1
#22
11521-48G00
PLATE, OIL SEPARATOR
No Disponible
1
#23
01547-0612A
BOLT
$2.63¢1 313
1
#24
11971-48G01
GAUGE, OIL LEVEL
$17.29¢8 644
1
#25
09280-17003
O RING (D:3.1,ID:16.8)
$2.14¢1 069
1
#26
09168-16002
GASKET (16X22X2)
$2.46¢1 231
1
#27
09248-16012
.PLUG (16X8)
$5.46¢2 731
1
#28
09168-14002
GASKET (13.8X18.8X4.8)
$3.44¢1 719
1
#29
09248-14011
PLUG (14x12)
$3.65¢1 825
1
#30
09168-12002
GASKET (12.1X16.2X3.7)
$2.06¢1 031
1
#31
09247-12006
PLUG (12X10)
$3.65¢1 825
1
#32
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#33
01547-0612A
BOLT
$2.63¢1 313
1
#34
11611-48G00
SPACER, ENG MTG
No Disponible
1
#35
11652-10G50
BUSH, ENG MTG
$30.92¢15 462
1
#36
11652-10G30
BUSH, ENG MTG
$30.21¢15 106
1
#37
09103-10041-A05
BOLT (10X215)
$12.21¢6 106
1
#38
09103-10118
BOLT (10X195)
$14.99¢7 494
1
#39
08319-3110A
NUT
$3.55¢1 775
1
#40
37820-33D10
SWITCH ASSY, OIL PRESSURE
$32.98¢16 488
1
#41
37822-33D00
.BOLT
$5.88¢2 938
1
#42
11330-48G00
COVER, BREATHER
No Disponible
1
#43
01547-0630A
BOLT
$3.01¢1 506
1
#44
11371-48G00
COVER, GEAR SHIFT
No Disponible
1
#45
11485-48G00
GASKET
$9.16¢4 581
1
#46
01547-0645A
BOLT
$3.16¢1 581
1
#47
04211-09149
PIN
$2.14¢1 069
1
#48
11332-48G00
TANK, OIL RETURN
$98.84¢49 419
1
#49
11333-48G00
HOSE, OIL RETURN TANK
$20.81¢10 406
1
#50
09401-20405
CLIP
$5.35¢2 675
1
#13-1
12228-48G00-0A0
.WASHER, CRANK THRUST (RED) | SEE ILLUSTRATION ON
$17.94¢8 969
1
#13-2
12228-48G00-0B0
.WASHER, CRANK THRUST (BLACK) | SEE ILLUSTRATION ON
No Disponible
1
#13-3
12228-48G00-0C0
.WASHER, CRANK THRUST (BLUE) | SEE ILLUSTRATION ON
$17.94¢8 969
1
#13-4
12228-48G00-0D0
.WASHER, CRANK THRUST (GREEN) | SEE ILLUSTRATION ON
No Disponible
1
#13-5
12228-48G00-0E0
.WASHER, CRANK THRUST (YELLOW | SEE ILLUSTRATION ON
$17.94¢8 969
1
#13-6
12228-48G00-0F0
.WASHER, CRANK THRUST (WHITE) | SEE ILLUSTRATION ON
No Disponible
1
