IGNITION SWITCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

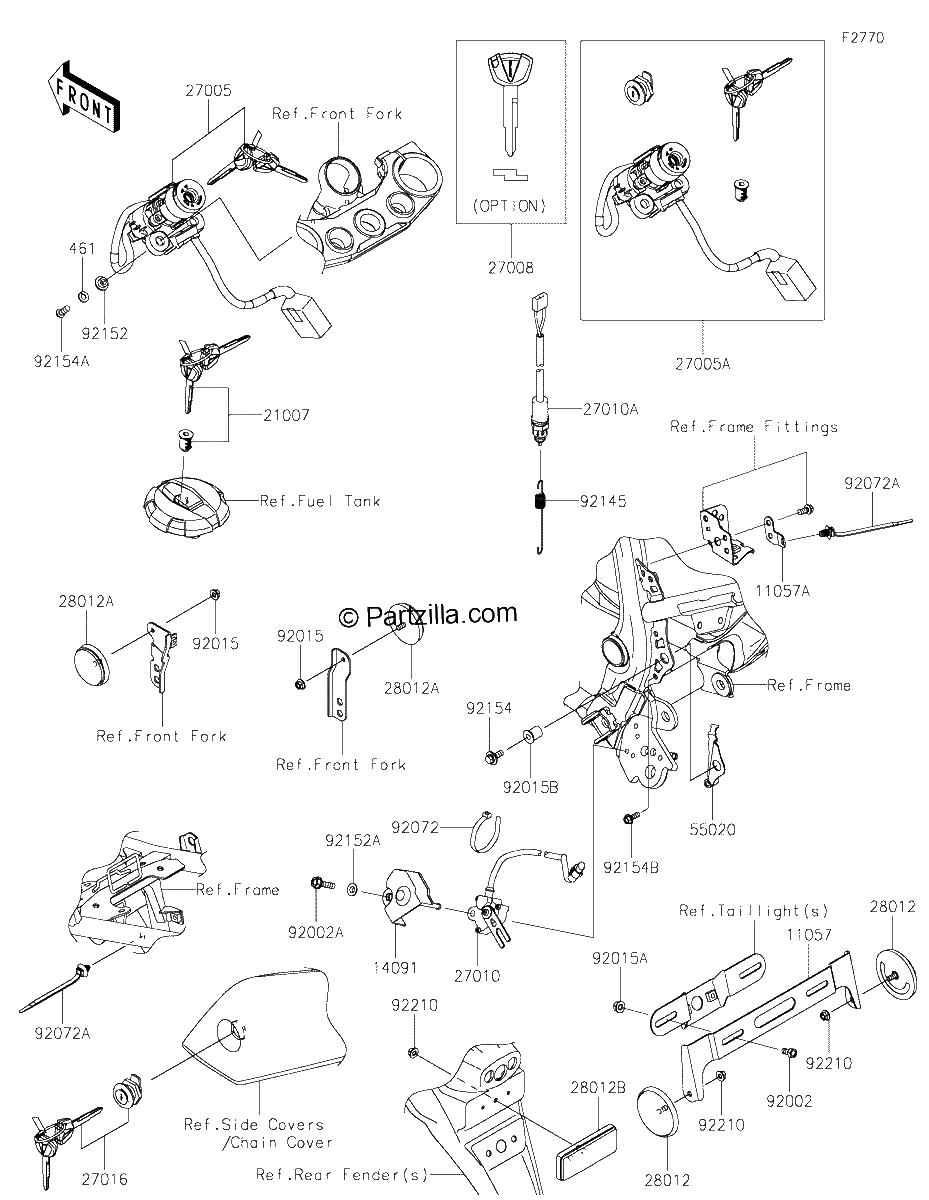

Diagrama de IGNITION SWITCH

Repuestos

#461
461DA0600
WASHER SPRING,6MM
$0.85¢425
1
#11057
11057-0641
BRACKET,REFLECTOR
$20.61¢10 306
1
#11057A
11057-4032
BRACKET
$2.68¢1 338
1
#14091
14091-1553
COVER,SIDE STAND SWITCH
$8.75¢4 375
1
#21007
21007-5077
ROTOR,LOCK,TANK CAP
$157.64¢78 819
1
#27005
27005-0721
SWITCH Assembly IGNITION
$173.28¢86 638
1
#27005A
27005-5194
SWITCH Assembly IGNITION
$424.50¢212 250
1
#27008
27008-0596
KEY LOCK,BLANK
$23.04¢11 519
1
#27010
27010-0097
SWITCH,SIDE STAND
$149.80¢74 900
1
#27010A
27010-0106
SWITCH,REAR BRAKE
$59.54¢29 769
1
#27016
27016-5387
LOCK-ASSY
$108.75¢54 375
1
#28012
28012-0002
REFLECTOR REFLEX
$25.51¢12 756
1
#28012B
28012-1077
REFLECTOR-REFLEX
$25.47¢12 737
1
#28012A
28012-016
REFLECTOR REFLEX,Front
$24.45¢12 225
1
#55020
55020-2307
GUARD
$10.18¢5 088
1
#92002A
92002-1582
BOLT,FLANGED,6X25
$4.88¢2 438
1
#92002
92002-1132
BOLT,6X12
$1.49¢744
1
#92015A
92015-1367
NUT,FLANGED,6MM
$3.29¢1 644
1
#92015B
92015-1700
NUT
$8.53¢4 263
1
#92015
92015-1259
NUT,FLANGED,5MM
$3.90¢1 950
1
#92072A
92072-0947
BAND,OS170 FT7(BLACK)
$3.34¢1 669
1
#92072
92072-0946
BAND,L=200
$5.60¢2 800
1
#92145
92145-1940
SPRING
$4.54¢2 269
1
#92152A
92152-2212
COLLAR,6.4X8X4.3
$4.16¢2 081
1
#92152
92152-1535
COLLAR,6.15X10.15X6
$3.70¢1 850
1
#92154B
92154-7277
BOLT,FLANGED,5X14
$1.96¢981
1
#92154A
92154-7275
BOLT,TORX,6X16
$3.79¢1 894
1
#92154
92154-1183
BOLT,FLANGED-SMALL,6X16
$1.55¢775
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.48¢1 238
1
