SIDE COWLING DL650AM2 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

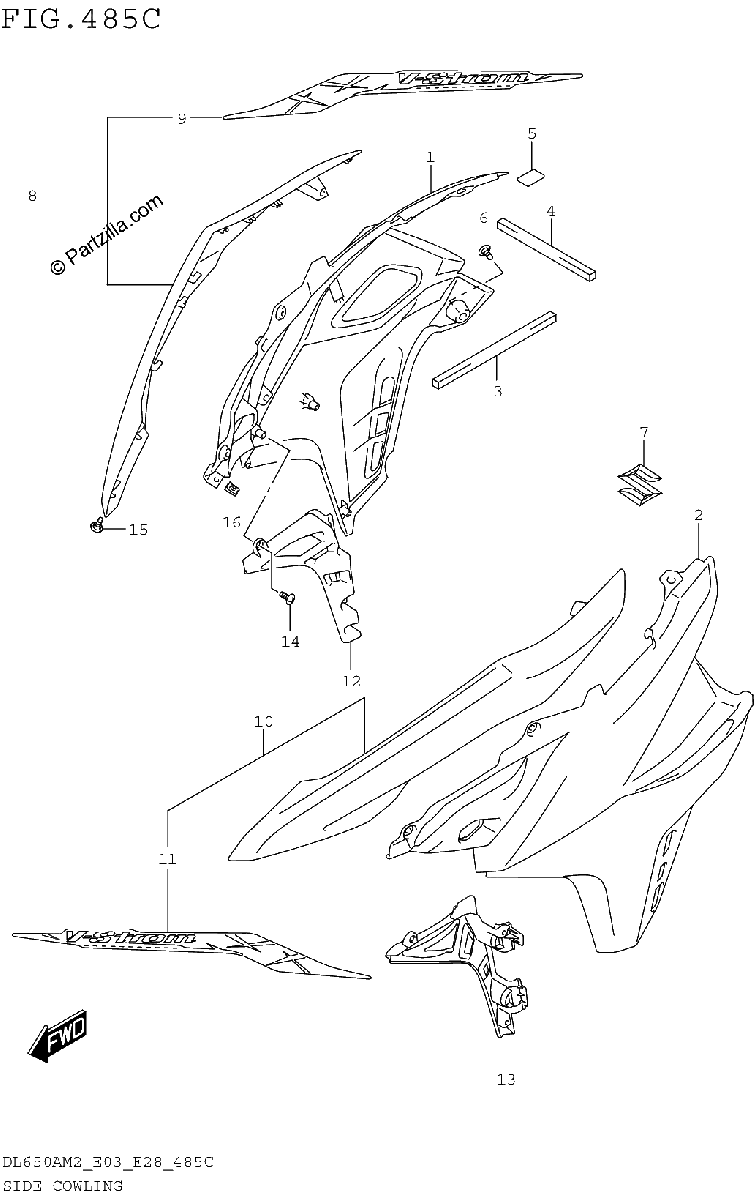

Diagrama de SIDE COWLING DL650AM2 E33

Repuestos

#1
94413-28K00
COVER,SIDE COWL RH
$130.34¢65 169
1
#2
94414-28K00
COVER,SIDE COWL LH
$136.63¢68 313
1
#3
44176-31J00
CUSHION, TANK COVER SIDE NO.1
$3.71¢1 856
1
#4
44178-31J00
CUSHION, TANK COVER SIDE NO.3
$3.88¢1 938
1
#5
47829-10F00
CUSHION,METER COVER REAR (10X 0X4)
$6.29¢3 144
1
#6
47913-31J00
SCREW
$2.95¢1 475
1
#7
68111-47HA0
EMBLEM, in.Sin.
$48.22¢24 112
1
#12
94461-28K00
COVER,SIDE COWL INNER RH
$19.50¢9 750
1
#13
94462-28K00
COVER,SIDE COWL INNER LH
$19.15¢9 575
1
#14
03541-0512A
SCREW
$1.79¢894
1
#15
09139-05091
SCREW
$2.63¢1 313
1
#16
09148-05052
NUT
$3.96¢1 981
1
#8-1
94420-28K80-YKY
COVER, SIDE COWL RH (BLUE)
$141.60¢70 800
1
#8-2
94420-28K80-YUH
COVER,SIDE COWL,R (WHITE) *{FOR YUH}*
$148.91¢74 456
1
#8-3
94420-28K80-YVB
COVER, SIDE COWL RH (BLACK)
$141.60¢70 800
1
#9-1
68275-28K80-CFT
.TAPE, COVER SIDE RH *{FOR YKY}*
$44.66¢22 331
1
#9-2
68275-28K80-B5Z
.TAPE,COVER SIDE,R (WHITE,BLU ) *{FOR YUH}*
$46.04¢23 019
1
#9-3
68275-28K80-CFU
.TAPE, COVER SIDE RH *{FOR YVB}*
$44.66¢22 331
1
#10-1
94430-28K80-YKY
COVER, SIDE COWL LH (BLUE)
$144.29¢72 144
1
#10-2
94430-28K80-YUH
COVER,SIDE COWL,L (WHITE) *{FOR YUH}*
$151.72¢75 863
1
#10-3
94430-28K80-YVB
COVER, SIDE COWL LH (BLACK)
$144.29¢72 144
1
#11-1
68285-28K80-CFT
.TAPE, COVER SIDE LH *{FOR YKY}*
$44.66¢22 331
1
#11-2
68285-28K80-B5Z
.TAPE,COVER SIDE,L (WHITE,BLU ) *{FOR YUH}*
$46.04¢23 019
1
#11-3
68285-28K80-CFU
.TAPE, COVER SIDE LH *{FOR YVB}*
$44.66¢22 331
1
