FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

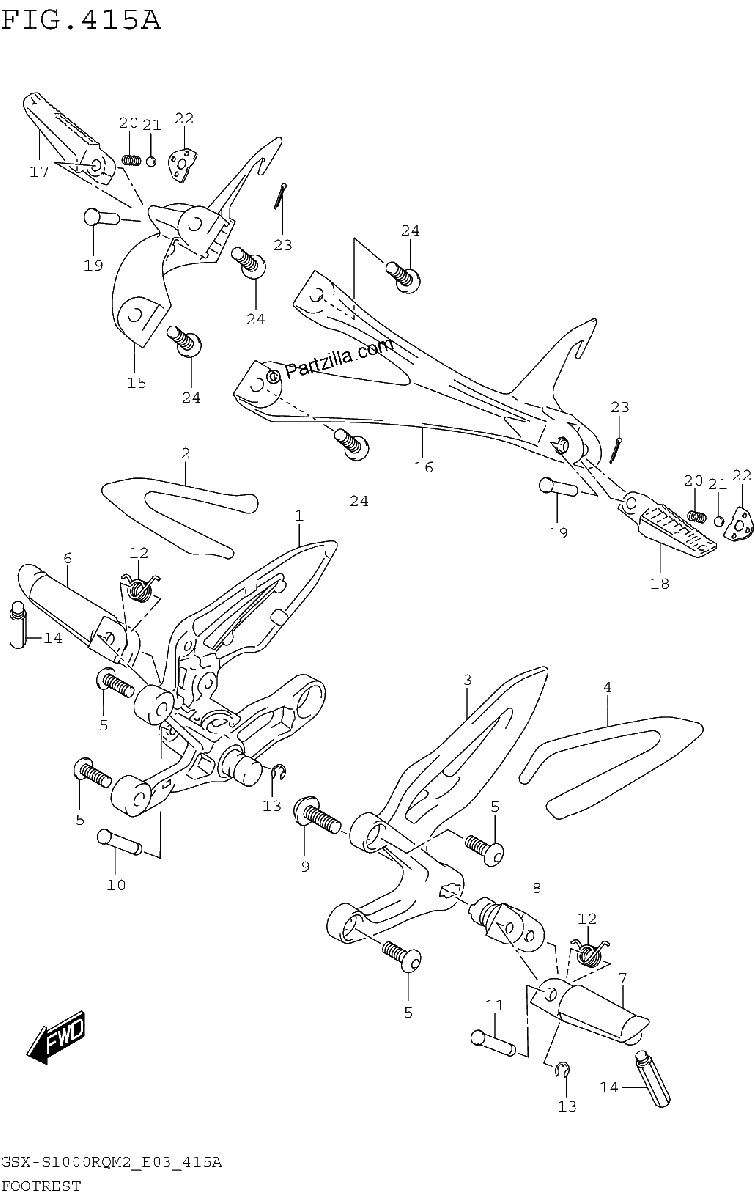

Diagrama de FOOTREST

Repuestos

#1
43510-48K10
BRACKET,FR FOOTREST,R
$137.11¢68 557
1
#2
43571-04K10
TAPE, FRONT FOOTREST RH
$34.04¢17 020
1
#3
43521-04K10
BRACKET, FRONT FOOTREST LH
$141.37¢70 685
1
#4
43572-04K10
TAPE, FRONT FOOTREST LH
$34.73¢17 365
1
#5
09106-08209
BOLT
$3.36¢1 679
1
#6
43516-35F20
BAR, FRONT FOOTREST RH
$52.15¢26 076
1
#7
43526-35F20
BAR, FRONT FOOTREST LH
$52.15¢26 076
1
#8
43530-16G10
HOLDER, FOOTREST LH
$51.61¢25 806
1
#9
09106-10064
BOLT (10X28)
$5.29¢2 645
1
#10
09208-08019
PIN
$3.32¢1 662
1
#11
09208-08018
PIN
$3.32¢1 662
1
#12
43581-48K00
SPRING,FRONT FOOTREST
$4.38¢2 191
1
#13
08332-1106A
.E RING
$1.71¢857
1
#14
43576-48B50
BOLT, BANK SENSOR
$17.63¢8 815
1
#15
43811-04K00
BRACKET ,PILLION FOOTREST RH
$173.21¢86 607
1
#16
43821-04K00
BRACKET ,PILLION FOOTREST LH
$166.86¢83 432
1
#17
43611-37H50
BAR,PILLION FOOTREST,R
$46.09¢23 046
1
#18
43621-37H50
BAR,PILLION FOOTREST,L
$46.09¢23 046
1
#19
09200-08002
PIN
$2.36¢1 179
1
#20
09440-05003
SPRING
$1.77¢886
1
#21
06111-07004
.BALL
$1.46¢730
1
#22
43816-01H30
PLATE,PILLION FOOTREST
$7.61¢3 807
1
#23
04111-2015A
COTTER PIN
$1.46¢730
1
#24
09106-08151
BOLT (8X25)
$4.46¢2 231
1
