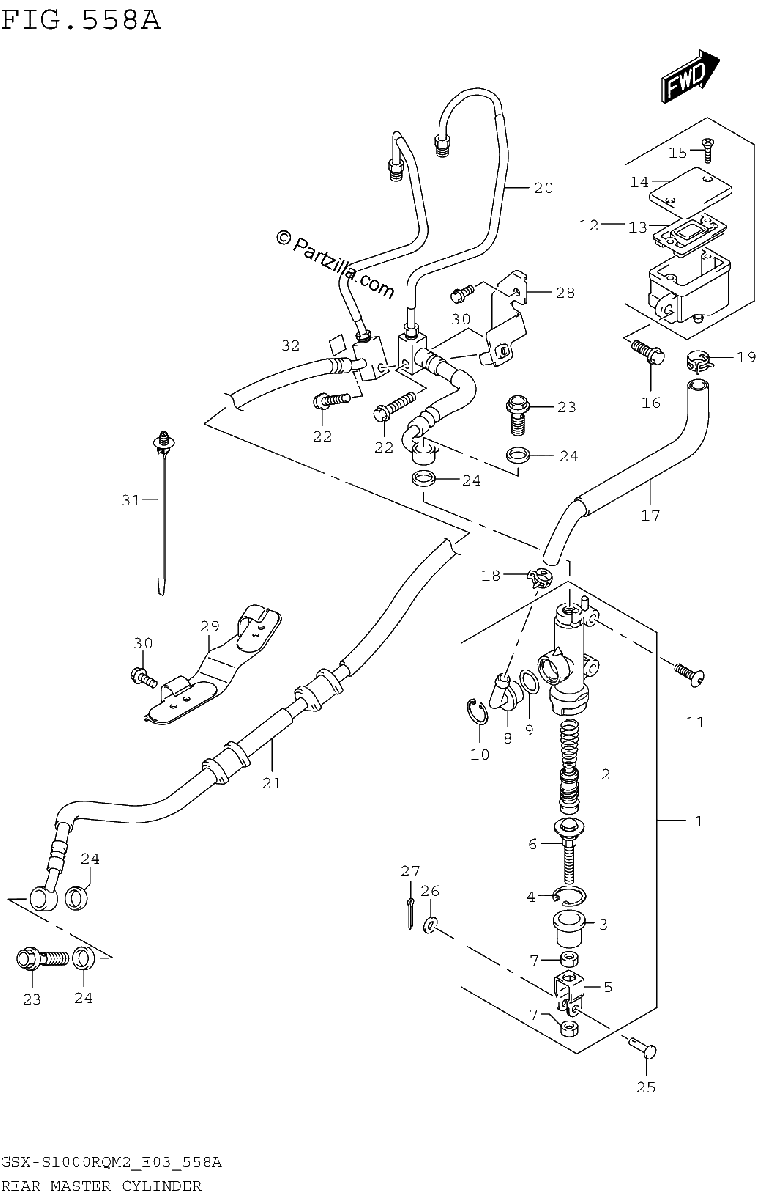

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CYLINDER ASSY,REAR MASTER
$297.56¢148 781
#2
.PISTON/CAP SET
$76.28¢38 138
#3
BOOT
$6.97¢3 488
#4
.CIRCLIP
$6.78¢3 388
#5
.YOKE
$18.84¢9 419
#6
ROD,PUSH
$23.40¢11 700
#7
.NUT
$3.35¢1 675
#8
.CONNECTOR
$8.36¢4 181
#9
.O RING
$3.65¢1 825
#10
.CIRCLIP
$4.86¢2 431
#11
BOLT,REAR MASTER CYLINDER
$4.85¢2 425
#12
TANK ASSY, REAR RESERVOIR
$78.22¢39 113
#13
.DIAPHRAGM
$11.66¢5 831
#14
.CAP
$20.55¢10 275
#15
.SCREW
$2.40¢1 200
#16
BOLT (6X12) *{(E28,E33)}*
$1.94¢969
#17
HOSE, RR RESERVOIR TANK
$25.85¢12 925
#18
CLIP
$3.09¢1 544
#19
CLIP
$3.73¢1 863
#20
HOSE ASSY,RR BK MASTER TO UNI
$90.35¢45 175
#21
HOSE ASSY,UNIT TO RR BK CLPR
$155.54¢77 769
#22
BOLT
$2.63¢1 313
#23
UNION (10X1.25X22)
$11.71¢5 856
#24
WASHER (10X15X1.5)
$2.39¢1 194
#25
PIN
$4.84¢2 419
#26
WASHER
$2.39¢1 194
#27
COTTER PIN
$1.59¢794
#28
CLAMP, RR BRAKE HOSE
$12.94¢6 469
#29
GUIDE, RR BRAKE HOSE
$26.25¢13 125
#30
BOLT
$2.63¢1 313
#31
CLAMP (L:154)
$6.03¢3 013
#32
PROTECTOR,BRAKE HOSE
$3.23¢1 613
