REAR COMBINATION LAMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

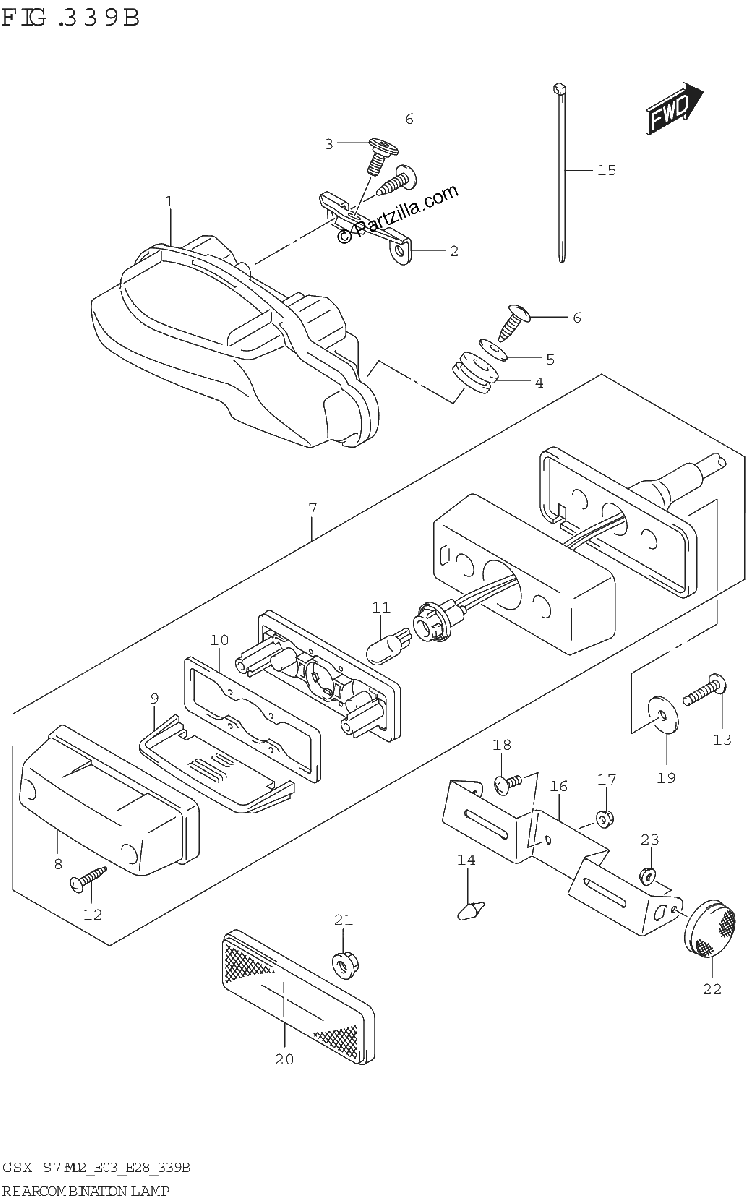

Diagrama de REAR COMBINATION LAMP

Repuestos

#1
35710-04K01
LAMP ASSY, REAR COMBINATION
$303.09¢151 544
1
#2
35726-13K00
BRACKET, REAR COMBINATION LAM
$7.96¢3 981
1
#3
09139-05092
SCREW
$2.90¢1 450
1
#4
09320-10073
CUSHION,REAR COMB LAMP
$2.66¢1 331
1
#5
09160-05501
WASHER (5.5X20X1.2)
$2.42¢1 213
1
#6
09160-05037
WASHER (5.5X16X1.2)
$1.94¢969
1
#7
03541-0540A
SCREW
$1.91¢956
1
#8
03541-0516A
SCREW
$1.79¢894
1
#9
35910-16G90
LAMP ASSY, LICENSE
$107.97¢53 988
1
#10
35917-16G00
.COVER
$16.73¢8 363
1
#11
35912-16G01
.LENS
$16.56¢8 281
1
#12
35913-16G00
.GASKET
No Disponible
1
#13
09471-12216
.BULB (12V5W)
$6.30¢3 150
1
#14
03211-0416A
.SCREW
$1.86¢931
1
#15
09321-06028
CUSHION
$2.48¢1 238
1
#16
09407-14407
CLAMP (L:145)
$3.65¢1 825
1
#17
35927-44H30
BRACKET, LICENSE PLATE
$24.88¢12 438
1
#18
09159-06096
NUT
$4.13¢2 063
1
#19
02142-0616A
SCREW
$1.79¢894
1
#20
35970-07F01
REFLECTOR ASSY, REAR SIDE
$24.90¢12 450
1
#21
08316-1005A
NUT
$2.85¢1 425
1
#22
35970-13K00
REFLEX REFLECTOR ASSY, RR SID
$21.97¢10 987
1
#23
08316-1005A
NUT
$2.85¢1 425
1
