FUEL TANK DL650XAM2 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

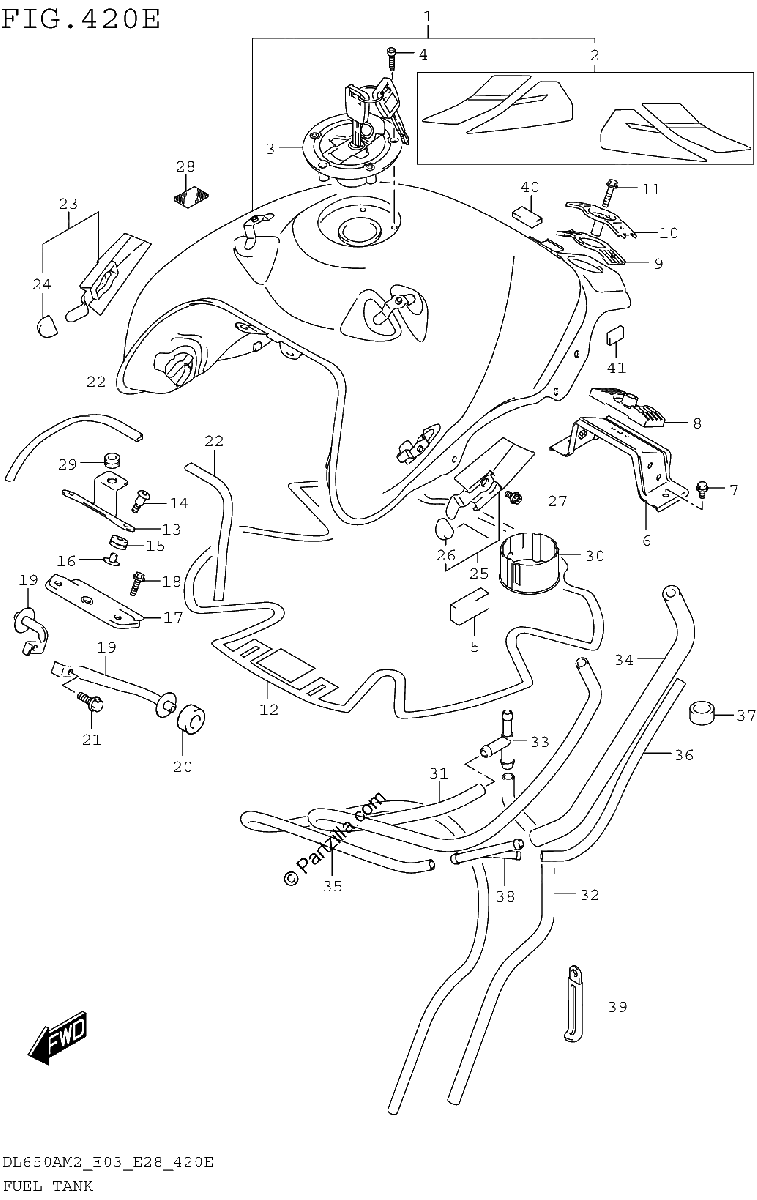

Diagrama de FUEL TANK DL650XAM2 E28

Repuestos

#3
44200-17840
CAP SET,FUEL TANK FILLER
$204.81¢102 407
1
#4
44244-11J00
BOLT
$4.51¢2 254
1
#5
44541-28K00
CUSHION,FUEL TANK SIDE
$14.63¢7 314
1
#6
44550-06G10
BRACKET, REAR LOWER
No Disponible
1
#7
01550-0816A
BOLT
$2.77¢1 386
1
#8
44545-06G00
CUSHION, LOWER
$22.65¢11 327
1
#9
44542-06G00
CUSHION, UPPER
$20.84¢10 419
1
#10
44530-06G00
BRACKET, UPPER
No Disponible
1
#1-1
44100-28KG0-YU1
TANK ASSY,FUEL (YELLOW) *{FOR YU1}*
$1371.18¢685 590
1
#11
01550-0835A
BOLT
$3.36¢1 679
1
#1-2
44100-28KG0-YUH
TANK ASSY,FUEL (WHITE) *{FOR YUH}*
$1371.18¢685 590
1
#12
44194-11J00
SHIELD, TANK CENTER
$100.48¢50 238
1
#1-3
44100-28KG0-6UX
TANK ASSY, FUEL (BLACK) *{FOR YVB}*
$1348.78¢674 389
1
#13
44154-11J00
BRACKET, FRONT COVER
$13.65¢6 825
1
#1-4
44100-28KG0-YKY
TANK ASSY, FUEL (BLUE) *{FOR CFR}*
$1348.78¢674 389
1
#14
09139-06192
SCREW (6X25)
$3.50¢1 748
1
#15
44511-16G01
CUSHION,FUEL TANK FRONT
$4.52¢2 260
1
#16
44512-16G00
SPACER, FUEL TANK FRONT
$8.15¢4 077
1
#17
44520-11J00
BRACKET, FUEL TANK FRONT
No Disponible
1
#18
01550-0620B
BOLT (6X20)
$2.85¢1 426
1
#19
44560-11J00
BRACKET, FRONT SIDE
No Disponible
1
#20
44543-31J01
CUSHION,FRONT SIDE BRKT
$6.21¢3 105
1
#2-1
68110-28K30-B5U
.TAPE SET,FUEL TANK (GRAY,BLU ,YELLOW) *{FOR YU1}*
$78.20¢39 100
1
#21
01550-0612A
BOLT
$2.36¢1 179
1
#2-2
68110-28K30-B5W
.TAPE SET,FUEL TANK (GOLD,BRO N,WHITE) *{FOR YUH}*
$78.20¢39 100
1
#22
68241-11J01
MOLDING, FUEL TANK
$22.29¢11 143
1
#2-3
68110-28K30-CFV
.TAPE SET, FUEL TANK *{FOR YVB}*
$74.61¢37 306
1
#23
44130-28K00
BRACKET,FUEL TANK COVER RH
$15.15¢7 573
1
#2-4
68110-28K30-CFW
.TAPE SET, FUEL TANK (WHITE/BLUE) *{FOR CFR}*
$74.61¢37 306
1
#24
09329-18001
CUSHION
$2.27¢1 133
1
#25
44140-28K00
BRACKET,FUEL TANK COVER LH
$15.15¢7 573
1
#26
09329-18001
CUSHION
$2.27¢1 133
1
#27
07120-0610A
.BOLT
$2.88¢1 438
1
#28
44572-37H00
.FASTENER, COWLING
$10.80¢5 399
1
#29
09320-06504
CUSHION
$5.36¢2 680
1
#30
44121-28K01
VESSEL,FUEL TANK INNER
$14.78¢7 389
1
#31
44423-28K01
HOSE,FUEL TANK DRAIN NO.1
$22.20¢11 098
1
#32
44423-11J31
HOSE,FUEL TANK DRAIN NO.2
$5.81¢2 904
1
#33
09367-08005
3 WAY
$5.84¢2 921
1
#34
44424-28K00
HOSE,FUEL TANK BRTHR NO.1
$14.09¢7 044
1
#35
09352-50005-690
HOSE,FUEL TANK BRTHR NO.2
No Disponible
1
#36
09352-50005-160
HOSE,FUEL TANK BRTHR NO.3
$4.14¢2 070
1
#37
09352-13162-010
HOSE (13.5X16.5X10)
No Disponible
1
#38
09367-06007
3 WAY
$3.81¢1 903
1
#39
09404-06030
CLAMP (L:80)
No Disponible
1
#40
45516-01H00
.CUSHION
$6.59¢3 295
1
#41
47122-28K00
CUSHION,FRAME COVER FRONT RR
$7.13¢3 565
1
