FRAME BODY COVER GSX S750Z GSX S750ZA

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

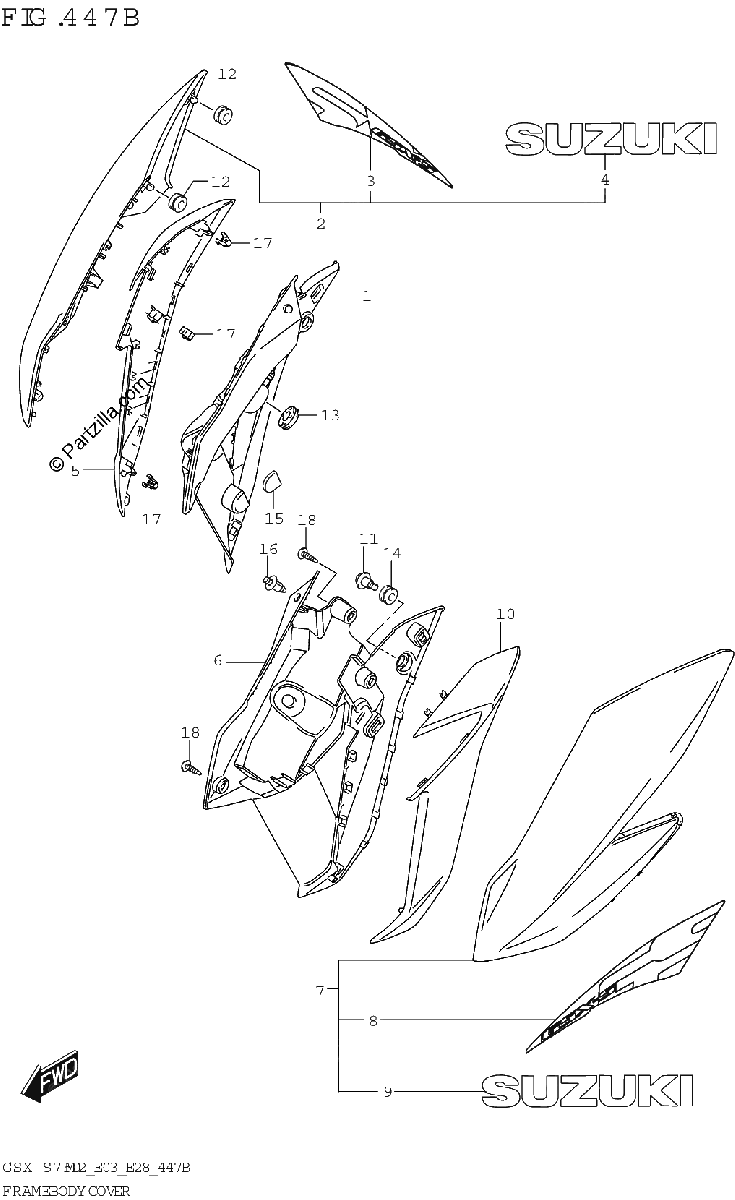

Diagrama de FRAME BODY COVER GSX S750Z GSX S750ZA

Repuestos

#1
47531-13K00
COVER, FRAME BODY INNER RH
$70.13¢35 064
1
#6
47541-13K00
COVER, FRAME BODY INNER LH
$70.13¢35 064
1
#11
09139-06190
BOLT (6X20)
$4.52¢2 260
1
#12
09320-06504
CUSHION
$5.36¢2 680
1
#13
09320-08028
CUSHION
$3.36¢1 679
1
#14
09320-09016
CUSHION
$2.36¢1 179
1
#15
09329-18001
CUSHION
$2.27¢1 133
1
#16
09409-06314
CLIP
$3.31¢1 656
1
#17
09409-08326
CLIP
$2.93¢1 466
1
#18
03541-0512A
SCREW
$1.64¢822
1
#2-1
47530-13K40-YSF
COVER,FRAME BODY,R (BLUE) *{BODY COLOR:KEL}*
$109.25¢54 625
1
#2-2
47530-13K40-YVB
COVER,FRAME BODY,R (BLACK) *{BODY COLOR:BD7}*
$111.99¢55 993
1
#2-3
47530-13K40-YUH
COVER,FRAME BODY,R (WHITE) *{BODY COLOR:B55}*
$111.99¢55 993
1
#3-1
68135-13K90-B6P
.TAPE,FRAME BODY COVER,R *{BODY COLOR:KEL}*
No Disponible
1
#3-2
68135-13K90-B6Q
.TAPE,FRAME BODY COVER,R *{BODY COLOR:BD7}*
No Disponible
1
#3-3
68135-13K90-B6S
.TAPE,FRAME BODY COVER,R *{BODY COLOR:B55}*
$27.89¢13 944
1
#4-1
68271-04A10-YUH
.EMBLEM,"SUZUKI" (WHITE) *{BODY COLOR:KEL}*
$40.51¢20 257
1
#4-2
68271-04A10-YES
.EMBLEM,"SUZUKI" (SILVER) *{BODY COLOR:BD7}*
$15.64¢7 820
1
#4-3
68271-04A10-019
.EMBLEM,"SUZUKI" (BLACK) *{BODY COLOR:QEB}*
$17.77¢8 884
1
#5-1
47533-13K00-YSF
COVER, FRAME BODY LOWER RH (BLUE) *{FOR KEL}*
$65.24¢32 620
1
#5-2
47533-13K00-QEB
COVER,FRAME BODY LWR,R (GRAY) *{BODY COLOR:BD7}*
$56.29¢28 146
1
#5-3
47533-13K00-YUH
COVER,FRAME BODY LWR,R (WHITE *{BODY COLOR:B55}*
$43.47¢21 735
1
#7-1
47540-13K40-YSF
COVER,FRAME BODY,L (BLUE) *{BODY COLOR:KEL}*
$109.25¢54 625
1
#7-2
47540-13K40-YVB
COVER,FRAME BODY,L (BLACK) *{BODY COLOR:BD7}*
$111.99¢55 993
1
#7-3
47540-13K40-YUH
COVER,FRAME BODY,L (WHITE) *{BODY COLOR:B55}*
$111.99¢55 993
1
#8-1
68145-13K90-B6P
.TAPE,FRAME BODY COVER,L *{BODY COLOR:KEL}*
$28.04¢14 018
1
#8-2
68145-13K90-B6Q
.TAPE,FRAME BODY COVER,L *{BODY COLOR:BD7}*
No Disponible
1
#8-3
68145-13K90-B6S
.TAPE,FRAME BODY COVER,L *{BODY COLOR:B55}*
$32.63¢16 313
1
#9-1
68271-04A10-YUH
.EMBLEM,"SUZUKI" (WHITE) *{BODY COLOR:KEL}*
$40.51¢20 257
1
#9-2
68271-04A10-YES
.EMBLEM,"SUZUKI" (SILVER) *{BODY COLOR:BD7}*
$15.64¢7 820
1
#9-3
68271-04A10-019
.EMBLEM,"SUZUKI" (BLACK) *{BODY COLOR:QEB}*
$17.77¢8 884
1
#10-1
47543-13K00-YSF
COVER, FRAME BODY LOWER LH (BLUE) *{FOR KEL}*
$65.24¢32 620
1
#10-2
47543-13K00-QEB
COVER,FRAME BODY LWR,L (GRAY) *{BODY COLOR:BD7}*
$56.96¢28 480
1
#10-3
47543-13K00-YUH
COVER,FRAME BODY LWR,L (WHITE *{BODY COLOR:B55}*
$56.96¢28 480
1
