FRONT FORK DAMPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

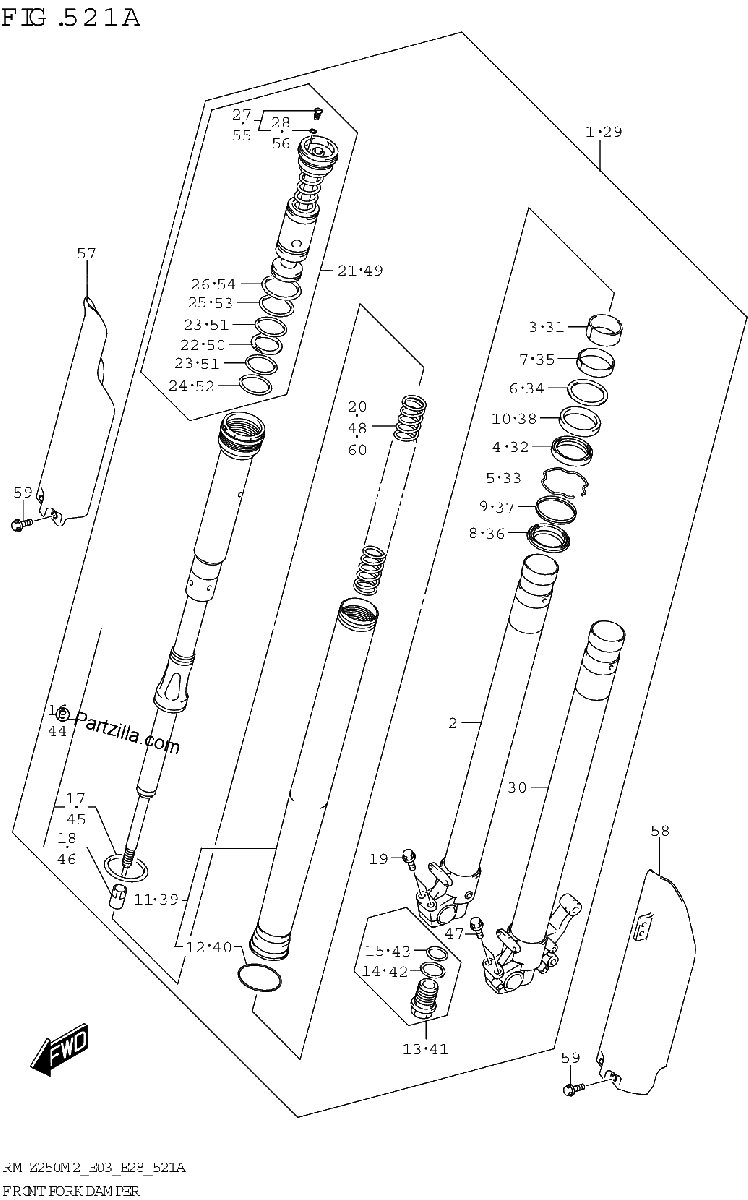

Diagrama de FRONT FORK DAMPER

Repuestos

#1
51103-46K00
DAMPER ASSY, FRONT FORK RH
$2126.09¢1 063 043
1
#2
51110-46K00
TUBE, INNER RH
$421.84¢210 921
1
#3
51127-49HE0
.PISTON
$40.69¢20 344
1
#4
51153-49HE0
.SEAL, OIL
$30.15¢15 076
1
#5
51156-49HE0
.RING, OIL SEAL STOPPER
$7.04¢3 519
1
#6
51158-46K00
.WASHER
$30.88¢15 439
1
#7
51167-49HE0
.METAL, SLIDE
$26.60¢13 300
1
#8
51173-49HE0
.SEAL, DUST
$20.56¢10 281
1
#9
51152-49HE0
.SCRAPER
$19.94¢9 971
1
#10
51155-49HE0
.COLLAR
$11.96¢5 980
1
#11
51130-46K00
.TUBE, OUTER
$622.47¢311 236
1
#12
51211-49H40
RING,SNAP
$8.03¢4 013
1
#13
51170-46K00
.ADJUSTER
$49.36¢24 679
1
#14
51148-01B20
..GASKET
$4.54¢2 271
1
#15
51181-43010
..O RING
$5.59¢2 794
1
#16
51190-46K00
.CYLINDER ASSY
$696.07¢348 036
1
#17
51117-48G00
.O RING
$3.45¢1 725
1
#18
51814-49H40
..NUT
$33.83¢16 917
1
#19
51166-24F60
BOLT
$6.12¢3 059
1
#20
51171-46K00
.SPRING
$39.39¢19 694
1
#21
51350-46K00
VALVE ASSY,BASE
$389.01¢194 505
1
#22
51124-46K00
..RING,BACKUP
$4.45¢2 225
1
#23
51174-46K00
O RING
$2.61¢1 305
1
#24
51175-46K00
..O RING
$2.61¢1 305
1
#25
51186-46K00
..O RING
$2.93¢1 466
1
#26
51187-46K00
O RING
$2.67¢1 334
1
#27
51357-46K00
SCREW
$4.71¢2 357
1
#28
51358-46K00
...O RING
$2.28¢1 138
1
#29
51104-46K00
DAMPER ASSY, FRONT FORK LH
$2126.09¢1 063 043
1
#30
51120-46K00
TUBE, INNER LH
$421.84¢210 921
1
#31
51127-49HE0
.PISTON
$40.69¢20 344
1
#32
51153-49HE0
.SEAL, OIL
$30.15¢15 076
1
#33
51156-49HE0
.RING, OIL SEAL STOPPER
$7.04¢3 519
1
#34
51158-46K00
.WASHER
$30.88¢15 439
1
#35
51167-49HE0
.METAL, SLIDE
$26.60¢13 300
1
#36
51173-49HE0
.SEAL, DUST
$20.56¢10 281
1
#37
51152-49HE0
.SCRAPER
$19.94¢9 971
1
#38
51155-49HE0
.COLLAR
$11.96¢5 980
1
#39
51130-46K00
.TUBE, OUTER
$622.47¢311 236
1
#40
51211-49H40
RING,SNAP
$8.03¢4 013
1
#41
51170-46K00
.ADJUSTER
$49.36¢24 679
1
#42
51148-01B20
..GASKET
$4.54¢2 271
1
#43
51181-43010
..O RING
$5.59¢2 794
1
#44
51190-46K00
.CYLINDER ASSY
$696.07¢348 036
1
#45
51117-48G00
.O RING
$3.45¢1 725
1
#46
51814-49H40
..NUT
$33.83¢16 917
1
#47
51166-24F60
BOLT
$6.12¢3 059
1
#48
51171-46K00
.SPRING
$39.39¢19 694
1
#49
51350-46K00
VALVE ASSY,BASE
$389.01¢194 505
1
#50
51124-46K00
..RING,BACKUP
$4.45¢2 225
1
#51
51174-46K00
O RING
$2.61¢1 305
1
#52
51175-46K00
..O RING
$2.61¢1 305
1
#53
51186-46K00
..O RING
$2.93¢1 466
1
#54
51187-46K00
O RING
$2.67¢1 334
1
#55
51357-46K00
SCREW
$4.71¢2 357
1
#56
51358-46K00
...O RING
$2.28¢1 138
1
#57
51501-28H60
PROTECTOR, FRONT FORK RH
$72.13¢36 064
1
#58
51510-28H70
PROTECTOR, FRONT FORK LH
$128.83¢64 417
1
#60
09116-06200
BOLT (6X16)
$4.48¢2 242
1
#59-1
51171-46K10
SPRING,FRONT *{OPT SOFT K=4.9}*
$39.39¢19 694
1
#59-2
51171-46K20
SPRING,FRONT *{OPT HARD K=5.1}*
$39.39¢19 694
1
