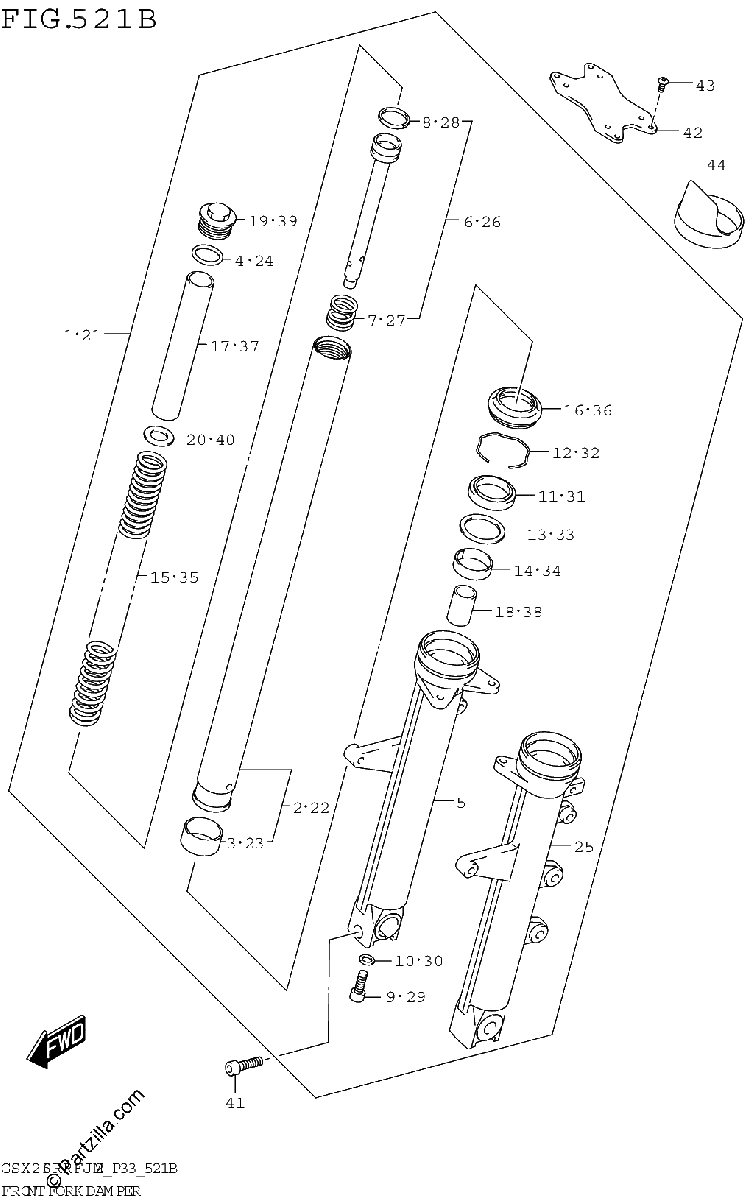

FRONT FORK DAMPER GSX250RRLJ M2 P33
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
$1524.44¢762 220
#2
.TUBE, INNER
$366.36¢183 178
#3
..PISTON
$21.31¢10 655
#4
.O RING
$4.71¢2 357
#5
.TUBE, OUTER
$710.30¢355 149
#6
.CYLINDER
$122.19¢61 094
#7
..SPRING, REBOUND
$17.62¢8 809
#8
..RING
$4.02¢2 012
#9
.BOLT
$6.70¢3 352
#10
.GASKET
$2.46¢1 231
#11
.OIL SEAL
$31.39¢15 698
#12
.SNAP RING
$7.44¢3 720
#13
.WASHER
$4.31¢2 156
#14
.METAL, SLIDE
$14.25¢7 124
#15
.SPRING, MAIN
$100.02¢50 008
#16
.SEAL, DUST
$30.68¢15 341
#17
.SPACER
No Disponible
#18
.PIECE, OIL LOCK
$18.38¢9 189
#19
.CAP
$144.87¢72 433
#20
.WASHER
$11.70¢5 848
#21
DAMPER ASSY, FRONT FORK LH
No Disponible
#22
.TUBE, INNER
$366.36¢183 178
#23
..PISTON
$21.31¢10 655
#24
.O RING
$4.71¢2 357
#25
.TUBE, OUTER
No Disponible
#26
.CYLINDER
$122.19¢61 094
#27
..SPRING, REBOUND
$17.62¢8 809
#28
..RING
$4.02¢2 012
#29
.BOLT
$6.70¢3 352
#30
.GASKET
$2.46¢1 231
#31
.OIL SEAL
$31.39¢15 698
#32
.SNAP RING
$7.44¢3 720
#33
.WASHER
$4.31¢2 156
#34
.METAL, SLIDE
$14.25¢7 124
#35
.SPRING, MAIN
$100.02¢50 008
#36
.SEAL, DUST
$30.68¢15 341
#37
.SPACER
No Disponible
#38
.PIECE, OIL LOCK
$18.38¢9 189
#39
.CAP
$144.87¢72 433
#40
.WASHER
$11.70¢5 848
#41
BOLT
No Disponible
#42
STABILIZER, FRONT
No Disponible
#43
SCREW (6X16)
$3.99¢1 995
#44
PROTECTOR
$22.00¢11 000
