TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

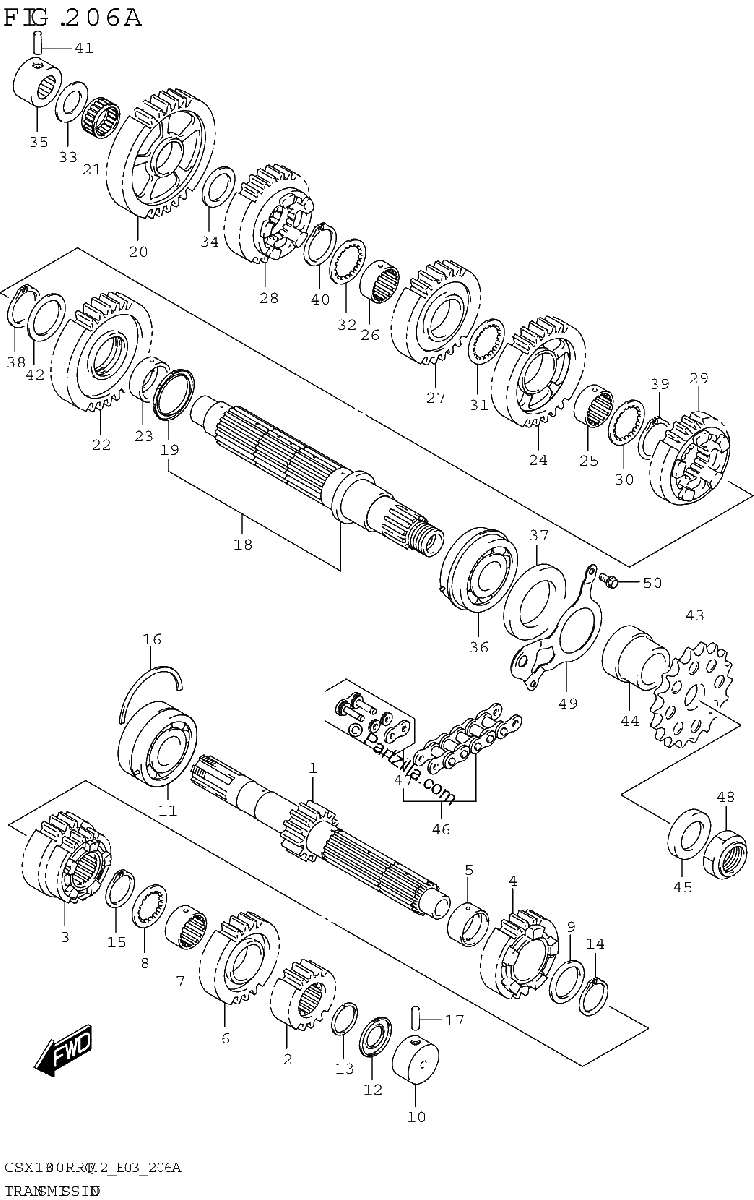

Diagrama de TRANSMISSION

Repuestos

#1
24120-10L00
SHAFT,CNTR
$278.36¢139 179
1
#2
24221-15H00
GEAR, 2ND DRIVE (NT:16)
$162.53¢81 265
1
#3
24231-15H00
GEAR, 3RD 4TH DRIVE
$220.25¢110 124
1
#4
24251-15H01
GEAR, 5TH DRIVE (NT:22)
$232.22¢116 110
1
#5
24252-24F20
BUSH, 5TH DRIVE GEAR
$68.68¢34 339
1
#6
24261-10L00
GEAR,6TH DRIVE
$104.36¢52 181
1
#7
24262-24F20
BUSH, 6TH DRIVE GEAR
$45.71¢22 856
1
#8
24263-10L00
WASHER,6TH DRIVE GEAR
$7.68¢3 841
1
#9
09181-27014
SHIM (27X36X2.5)
$7.62¢3 812
1
#10
09263-20117
BEARING
$55.89¢27 945
1
#11
09267-25012
BEARING (25X62X25.4) | RH
$188.54¢94 271
1
#12
09285-20006
OIL SEAL (20X31.2X2.7)
$7.05¢3 525
1
#13
09380-27004
CIRCLIP
$3.99¢1 995
1
#14
09380-27006
CIRCLIP
$3.27¢1 633
1
#15
09380-27006
CIRCLIP
$3.27¢1 633
1
#16
09390-62012
C RING
$8.02¢4 008
1
#17
04221-07209
PIN
$2.78¢1 392
1
#18
24130-10L00
SHAFT,DRIVE
$186.36¢93 179
1
#19
24136-48G01
.RING, FRICTION
$49.30¢24 650
1
#20
24311-10L00
GEAR,1ST DRIVEN
$118.42¢59 208
1
#21
09263-24030
BEARING (24X28X13)
$30.62¢15 312
1
#22
24321-15H00
GEAR, 2ND DRIVEN (NT:31)
$237.19¢118 594
1
#23
24322-48G00
BUSH, 2ND DRIVEN GEAR
$39.88¢19 941
1
#24
24331-15H00
GEAR, 3RD DRIVEN (NT:29)
$237.19¢118 594
1
#25
24332-24F20
BUSH, 4TH DRIVEN GEAR
$45.71¢22 856
1
#26
24332-24F20
BUSH, 4TH DRIVEN GEAR
$45.71¢22 856
1
#27
24341-15H00
GEAR, 4TH DRIVEN (NT:27)
$237.19¢118 594
1
#28
24351-10L00
GEAR,5TH DRIVEN
$158.26¢79 132
1
#29
24361-15H00
GEAR, 6TH DRIVEN (NT:24)
$243.13¢121 566
1
#30
09167-30008
LOCK WASHER
$7.38¢3 691
1
#31
09167-30008
LOCK WASHER
$7.38¢3 691
1
#32
09167-30008
LOCK WASHER
$7.38¢3 691
1
#33
09181-20251
SHIM (20X34X1)
$3.32¢1 662
1
#34
09181-24005
SHIM (24X34X1)
$3.85¢1 926
1
#35
09263-20118
BEARING
$55.89¢27 945
1
#36
09267-30011
BEARING (30X62X23.8)
$201.91¢100 953
1
#37
09283-42018
OIL SEAL (42X62X7)
$39.34¢19 671
1
#38
09380-30009
CIRCLIP
$3.78¢1 892
1
#39
09380-30009
CIRCLIP
$3.78¢1 892
1
#40
09380-30009
CIRCLIP
$3.78¢1 892
1
#41
04221-07209
PIN
$2.78¢1 392
1
#42
08211-30405
WASHER
$5.04¢2 519
1
#43
27511-15H00
SPROCKET,ENGINE
$104.97¢52 486
1
#44
27531-15H00
SPACER, ENGINE SPROCKET NO.1
$46.38¢23 190
1
#45
27532-15H00
SPACER, ENGINE SPROCKET NO.2
$19.80¢9 901
1
#46
27600-24F70-114
CHAIN ASSY,DRIVE (GREEN)
$453.08¢226 539
1
#47
27620-24F70
.JOINT SET CHAIN
$16.76¢8 378
1
#48
09159-22008
NUT
$32.64¢16 318
1
#49
24751-10L00
RETAINER,CL PUSH ROD OIL SEAL
$13.09¢6 544
1
#50
09103-06236
BOLT (6X12)
$3.24¢1 621
1
