THROTTLE BODY E03 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

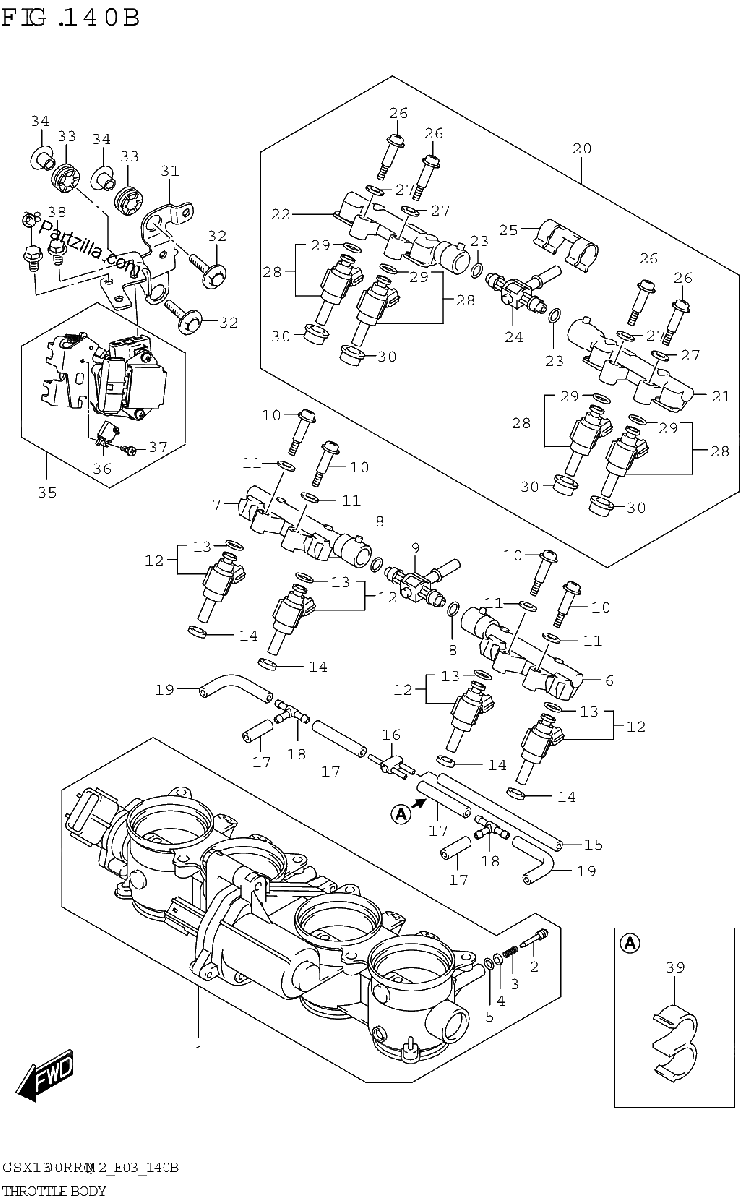

Diagrama de THROTTLE BODY E03 E28

Repuestos

#1
13405-10L10
BODY ASSY, THROTTLE
$1269.15¢634 575
1
#2
13269-33E00
.SCREW
$13.61¢6 806
1
#3
13268-48700
.SPRING
$5.17¢2 588
1
#4
13606-47A00
.WASHER
$4.44¢2 219
1
#5
13295-29901
O RING
$5.17¢2 588
1
#6
13471-10L00
.DELIVERY PIPE
$38.44¢19 219
1
#7
13472-10L00
.DELIVERY PIPE
$38.44¢19 219
1
#8
13374-32G00
.O RING
$9.75¢4 875
1
#9
13473-10L00
.NIPPLE ASSY
$47.63¢23 813
1
#10
13601-29G00
SCREW
$4.20¢2 100
1
#11
13602-29G01
PACKING
$3.28¢1 638
1
#12
15710-14J00
INJECTOR ASSY
$446.29¢223 144
1
#13
15717-58B00
.O RING
$11.86¢5 931
1
#14
15722-14J00
SEAL
$13.94¢6 969
1
#15
13683-01H01
HOSE
$14.00¢7 000
1
#16
13471-18H00
NIPPLE
$14.16¢7 081
1
#17
13683-10F61
HOSE
$23.09¢11 544
1
#18
13685-02FA0
NIPPLE
$9.50¢4 750
1
#19
13681-39F00-070
HOSE (3.2X7.4X70)
$4.03¢2 013
1
#20
15900-10L00
BODY ASSY,2ND INJECTOR
$426.60¢213 300
1
#21
13471-10L00
.DELIVERY PIPE
$38.44¢19 219
1
#22
13472-10L00
.DELIVERY PIPE
$38.44¢19 219
1
#23
13374-32G00
.O RING
$9.75¢4 875
1
#24
13473-10L00
.NIPPLE ASSY
$47.63¢23 813
1
#25
13474-17K00
.CLIP
$23.09¢11 544
1
#26
13601-29G00
SCREW
$4.20¢2 100
1
#27
13602-29G01
PACKING
$3.28¢1 638
1
#28
15710-17K10
.INJECTOR ASSY
$328.98¢164 488
1
#29
15717-58B00
.O RING
$11.86¢5 931
1
#30
15722-14J00
SEAL
$13.94¢6 969
1
#31
13571-10L00
BRACKET,ACCEL SENSOR
$15.96¢7 981
1
#32
09116-06185
BOLT (6X30)
$3.51¢1 756
1
#33
09320-10055
CUSHION
$5.38¢2 688
1
#34
09180-06319
SPACER (6.5X10X11.6) | RH
$4.59¢2 294
1
#35
13500-10L00
BODY ASSY,ACCELERATOR
$557.65¢278 825
1
#36
13550-10L00
.SWITCH,CRS CONT CANCEL
$47.71¢23 856
1
#37
13601-10L00
.SCREW
$3.04¢1 519
1
#38
01550-0612A
BOLT
$2.56¢1 281
1
#39
09408-00200
CLIP
$3.60¢1 800
1
