FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

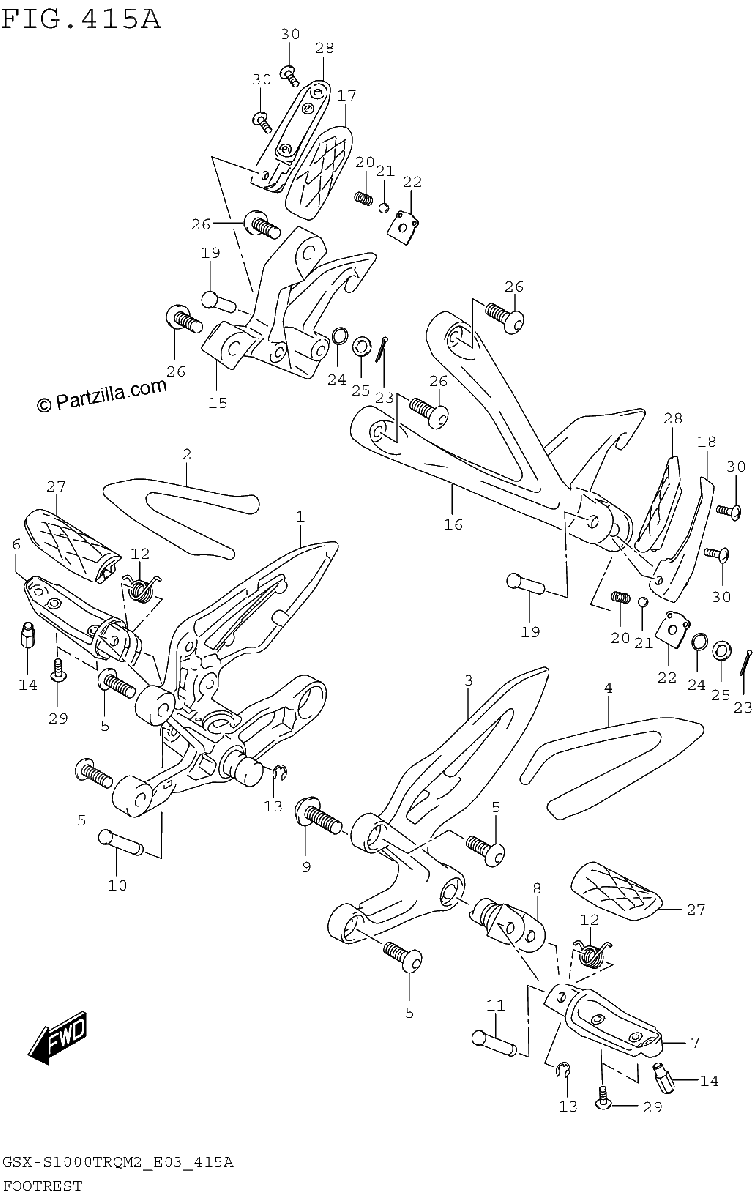

Diagrama de FOOTREST

Repuestos

#1
43510-48K10
BRACKET,FR FOOTREST,R
$149.04¢74 519
1
#2
43571-04K10
TAPE, FRONT FOOTREST RH
$37.00¢18 500
1
#3
43521-48K10
BRACKET,FR FOOTREST,L
$103.81¢51 906
1
#4
43572-04K10
TAPE, FRONT FOOTREST LH
$37.75¢18 875
1
#5
09106-08209
BOLT
$3.65¢1 825
1
#6
43511-44G10
BAR, FRONT FOOTREST RH
$57.89¢28 944
1
#7
43521-44G10
BAR, FRONT FOOTREST LH
$56.28¢28 138
1
#8
43540-48K10
HOLDER,FOOTREST,L
$61.65¢30 825
1
#9
09106-10064
BOLT (10X28)
$5.75¢2 875
1
#10
09208-08019
PIN
$3.61¢1 806
1
#11
09208-08018
PIN
$3.61¢1 806
1
#12
43581-48K00
SPRING,FRONT FOOTREST
$4.76¢2 381
1
#13
08332-1106A
.E RING
$1.86¢931
1
#14
43576-48B02
BOLT, BANK SENSOR
$8.92¢4 462
1
#15
43811-48K00
BRACKET,PILLION FOOTREST,R
$194.03¢97 013
1
#16
43821-48K00
BRACKET,PILLION FOOTREST,L
$194.03¢97 013
1
#17
43611-10L00
.BAR,PILLION FOOTREST RH
$86.21¢43 106
1
#18
43621-10L00
.BAR,PILLION FOOTREST LH
$86.21¢43 106
1
#19
09200-08076
PIN,PILLION FOOTREST
$4.69¢2 344
1
#20
09440-06039
.SPRING
$4.29¢2 144
1
#21
06111-08004
.BALL
$1.70¢850
1
#22
43816-10L00
.PLATE,PILLION FOOTREST
$8.35¢4 175
1
#23
04111-2015A
COTTER PIN
$1.59¢794
1
#24
18592-68K00
.O RING (D:2.4,ID:6.9)
$6.50¢3 250
1
#25
09160-08090
WASHER (8.5X14X1.6)
$3.10¢1 550
1
#26
09106-08213
BOLT,PILLION FOOTREST BRKT
$4.46¢2 231
1
#27
43550-48K00
RUBBER,FOOTREST
$35.65¢17 825
1
#28
43550-10L00
.RUBBER,FOOTREST
$24.64¢12 319
1
#29
09125-05147
SCREW,FOOTREST BAR
$1.09¢544
1
#30
02142-0516A
BOLT | LOWER
$1.86¢931
1
