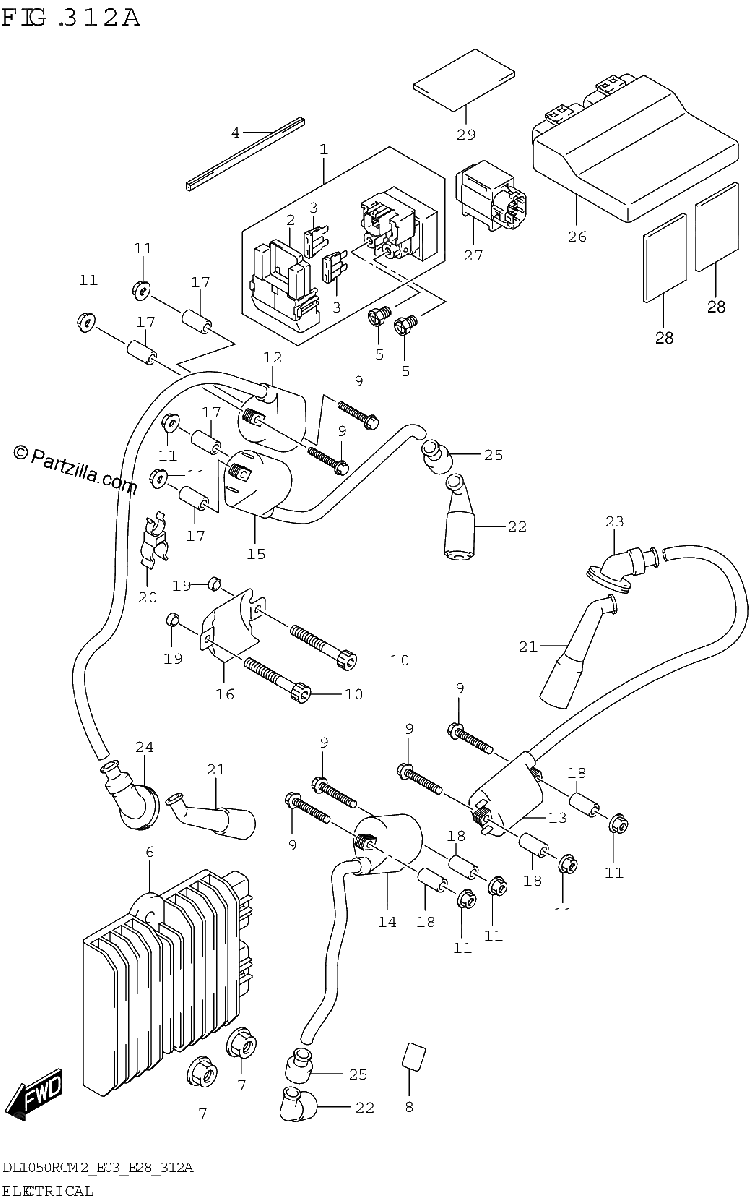

Diagrama de ELECTRICAL

Repuestos

#1
31800-06G02
RELAY ASSY,STARTING MOTOR
$73.84¢36 921
1
#2
31861-47E00
.COVER
$20.07¢10 034
1
#3
09481-30101
.FUSE (30A)
$2.74¢1 368
1
#4
44552-24B00
MOLDING, FUEL TANK
$15.89¢7 946
1
#5
09128-06013
SCREW (6X8)
$1.49¢747
1
#6
32800-31J00
RECTIFIER ASSY
$183.19¢91 598
1
#7
08319-3106A
.NUT
$2.42¢1 208
1
#8
45517-16G20
TAPE
$13.86¢6 929
1
#9
09106-06088
BOLT (6X35)
$5.03¢2 513
1
#10
09106-06120
BOLT (6X40)
No Disponible
1
#11
09159-06096
NUT
$3.79¢1 897
1
#12
33410-06G01
COIL ASSY,IGNITION
$145.01¢72 508
1
#13
33410-06L00
COIL ASSY,IGNITION REAR
$118.91¢59 455
1
#14
33410-20H01
COIL ASSY,IGNITION
$114.25¢57 126
1
#15
33410-26G01
COIL ASSY,IGNITION
$148.69¢74 348
1
#16
13412-06L00
SHIELD,IGNITION COIL
$44.51¢22 253
1
#17
09180-06195
SPACER (6.4X10X18)
$3.15¢1 576
1
#18
09180-06198
SPACER (6.2X12X16) | FRONT
$5.21¢2 605
1
#19
09180-06255
SPACER (6.5X9X3.8)
$3.07¢1 535
1
#20
09408-00235
CLAMP
$3.37¢1 685
1
#21
33510-31G00
CAP ASSY, SPARK PLUG
$44.10¢22 051
1
#22
33510-31G10
CAP ASSY, SPARK PLUG
$36.14¢18 072
1
#23
33542-06G00
SEAL, HIGH TENSION CORD, RR
$10.09¢5 043
1
#24
33542-06G10
SEAL, HIGH TENSION CORD, FR
$10.29¢5 146
1
#25
33542-38B00
SEAL, HIGH TENSION CORD
$4.76¢2 380
1
#26
32910-06L00
HARDWARE,FI CONTROL UNIT *{SEE NOTE 1}*
$1421.66¢710 832
1
#27
33960-25H00
SENSOR ASSY,FUEL CUT
$97.49¢48 743
1
#28
33651-37000
PROTECTOR | CUT AS REQUIRED
$4.91¢2 455
1
#29
33652-36000
PROTECTOR (30X50X3.0)
$2.85¢1 426
