FRAME COVER DL1050RC

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

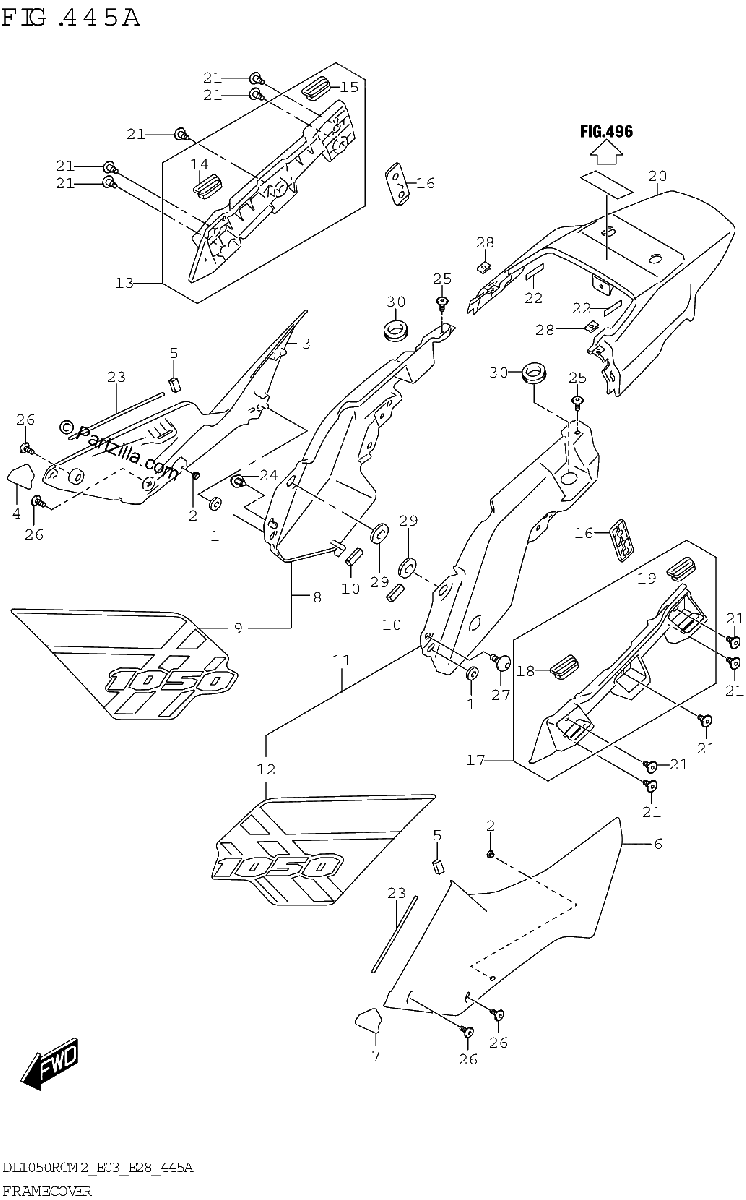

Diagrama de FRAME COVER DL1050RC

Repuestos

#1
44173-14J00
CUSHION, SIDE
$5.11¢2 556
1
#2
45148-27J00
CUSHION, SEAT MOUNT
$23.25¢11 625
1
#4
47121-06L00
PROTECTOR,FRAME COVER RH *{BODY COLOR:YU1,B1F}*
$59.38¢29 688
1
#5
47131-06L00
CUSHION,FRAME COVER FR RR
$7.91¢3 956
1
#7
47221-06L00
PROTECTOR,FRAME COVER LH *{BODY COLOR:YU1,B1F}*
$18.77¢9 388
1
#10
47312-06L00
CUSHION,FRM COV SIDE NO.5
$8.40¢4 200
1
#13
47510-06L00
BRKT,SIDE CASE UPR RH
$97.00¢48 500
1
#14
47811-06L00
.BUSH,SIDE CASE BRKT FR RH
$9.29¢4 644
1
#15
47911-06L00
.BUSH,SIDE CASE BRKT RR RH
$9.29¢4 644
1
#16
47510-28K00
SPACER,FRAME COVER
$23.91¢11 956
1
#17
47610-06L00
BRKT,SIDE CASE UPR LH
$97.00¢48 500
1
#18
47812-06L00
.BUSH,SIDE CASE BRKT FR LH
$9.29¢4 644
1
#19
47912-06L00
.BUSH,SIDE CASE BRKT RR LH
$9.29¢4 644
1
#21
47913-06L00
SCREW
$2.24¢1 119
1
#22
94415-40F00
TAPE,ABS UNIT HOLDER
$4.47¢2 238
1
#23
94417-24F00
CUSHION,FRAME COVER
$7.81¢3 906
1
#24
94479-35F00
CLIP
$6.70¢3 350
1
#25
09139-05091
SCREW
$2.63¢1 313
1
#26
09139-05091
SCREW
$2.63¢1 313
1
#27
09139-06169
SCREW (6X16)
$3.65¢1 825
1
#28
09148-05052
NUT
$3.96¢1 981
1
#29
09320-08029
CUSHION
$3.15¢1 575
1
#30
09320-20011
CUSHION (20X32X9)
$3.52¢1 763
1
#3-1
47111-06L10
COVER,FRAME FRONT RH *{BODY COLOR:YVB}*
$126.46¢63 231
1
#3-2
47111-06L00-YUH
COVER,FRAME FRONT RH (WHITE) *{BODY COLOR:B1F}*
$286.15¢143 075
1
#6-1
47211-06L10
COVER,FRAME FRONT LH *{BODY COLOR:YVB}*
$133.21¢66 606
1
#6-2
47211-06L00-YUH
COVER,FRAME FRONT LH (WHITE) *{BODY COLOR:B1F}*
$301.50¢150 750
1
#8-1
47310-06L00-6UX
COVER,FRAME RH (BLACK) *{BODY COLOR:YVB}*
$207.46¢103 731
1
#8-2
47310-06L00-QRE
COVER,FRAME RH (ORANGE) *{BODY COLOR:B1F}*
$263.04¢131 519
1
#8-3
47310-06L00-QEB
COVER,FRAME RH (GRAY) *{FOR BD7 BODY COLOR:BD7}*
$207.46¢103 731
1
#8-4
47310-06L00-ZFX
COVER,FRAME RH (YELLOW) *{FOR BT1 BODY COLOR:BT1}*
$231.53¢115 763
1
#9-1
68135-06L00-B8Z
.TAPE,FRAME COVER RH (YELLOW, RAY,BLACK) *{BODY COLOR:YVB}*
$35.46¢17 731
1
#9-2
68135-06L00-B4M
.TAPE,FRAME COVER RH *{BODY COLOR:B1F}*
$39.44¢19 719
1
#9-3
68135-06L00-B81
.TAPE,FRAME COVER RH (BLUE,BL CK,GRAY) *{FOR BD7 BODY COLOR:BD7}*
$35.46¢17 731
1
#9-4
68135-06L00-B82
.TAPE,FRAME COVER RH (BLUE,GR Y,BLACK,YELLOW) *{FOR BT1 BODY COLOR:BT1}*
$35.46¢17 731
1
#11-1
47350-06L00-6UX
COVER,FRAME LH (BLACK) *{BODY COLOR:YVB}*
$207.75¢103 875
1
#11-2
47350-06L00-QRE
COVER,FRAME LH (ORANGE) *{BODY COLOR:B1F}*
$263.15¢131 575
1
#11-3
47350-06L00-QEB
COVER,FRAME LH (GRAY) *{FOR BD7 BODY COLOR:BD7}*
$207.75¢103 875
1
#11-4
47350-06L00-ZFX
COVER,FRAME LH (YELLOW) *{FOR BT1 BODY COLOR:BT1}*
$226.19¢113 094
1
#12-1
68145-06L00-B8Z
.TAPE,FRAME COVER LH (YELLOW, RAY,BLACK) *{BODY COLOR:YVB}*
$35.46¢17 731
1
#12-2
68145-06L00-B4M
.TAPE,FRAME COVER LH *{BODY COLOR:B1F}*
$39.44¢19 719
1
#12-3
68145-06L00-B81
.TAPE,FRAME COVER LH (BLUE,BL CK,GRAY) *{FOR BD7 BODY COLOR:BD7}*
$35.46¢17 731
1
#12-4
68145-06L00-B82
.TAPE,FRAME COVER LH (BLUE,GR Y,BLACK,YELLOW) *{FOR BT1 BODY COLOR:BT1}*
$35.46¢17 731
1
#20-1
47711-06L00-YVB
COVER,FRAME CTR (BLACK) *{BODY COLOR:YVB}*
$257.46¢128 731
1
#20-2
47711-06L00-QRE
COVER,FRAME CTR (ORANGE) *{BODY COLOR:B1F}*
$298.06¢149 031
1
#20-3
47711-06L00-QEB
COVER,FRAME CTR (GRAY) *{BODY COLOR:BN8}*
$231.46¢115 731
1
#20-4
47711-06L00-YU1
COVER,FRAME CTR (YELLOW) *{BODY COLOR:YU1}*
$294.41¢147 206
1
