ELECTRICAL E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

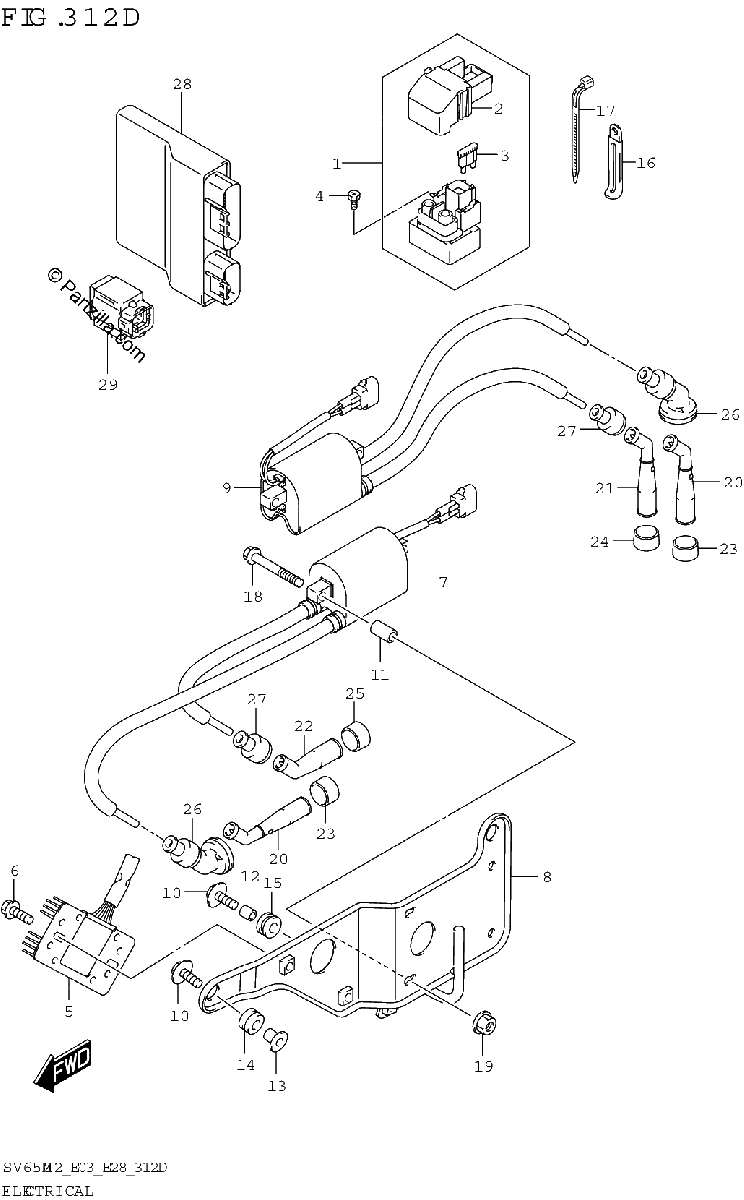

Diagrama de ELECTRICAL E28

Repuestos

#1
31800-06G02
RELAY ASSY,STARTING MOTOR
$73.84¢36 921
1
#2
31861-47E00
.COVER
$20.07¢10 034
1
#3
09481-30101
.FUSE (30A)
$2.74¢1 368
1
#4
09128-06013
SCREW (6X8)
$1.49¢747
1
#5
32800-47H00
RECTIFIER ASSY
$288.68¢144 342
1
#6
02162-0616A
BOLT
$2.47¢1 236
1
#7
33410-18K00
COIL ASSY,IGNITION FRONT
$164.59¢82 294
1
#8
33414-44H01
BRACKET, IGNITION COIL REAR
No Disponible
1
#9
33420-18K00
COIL ASSY,IGNITION REAR
$164.59¢82 294
1
#10
09116-06188
BOLT (6X20)
$2.61¢1 305
1
#11
09180-06195
SPACER (6.4X10X18)
$3.15¢1 576
1
#12
09180-06263
SPACER (6.5X9X9)
$2.01¢1 006
1
#13
09180-06331
.SPACER (6.2X8.4X10.9)
$5.75¢2 875
1
#14
09320-08501
CUSHION
$3.54¢1 771
1
#15
09320-09016
CUSHION
$2.36¢1 179
1
#16
09404-06030
CLAMP (L:80)
No Disponible
1
#17
09407-18402
CLAMP (L:165)
$2.66¢1 328
1
#18
09103-06531
BOLT,MAGNETO COVER (6X40)
$2.88¢1 438
1
#19
08316-1006A
NUT
$2.62¢1 311
1
#20
33510-17G00
CAP, SPARK PLUG | FOR CENTER
$36.71¢18 354
1
#21
33510-17G00
CAP, SPARK PLUG | FOR CENTER
$36.71¢18 354
1
#22
33510-20E00
CAP ASSY, SPARK PLUG
$42.98¢21 488
1
#23
33541-23E10
SEAL, SPARK PLUG CAP | FOR CENTER
$7.39¢3 697
1
#24
33541-23E10
SEAL, SPARK PLUG CAP | FOR CENTER
$7.39¢3 697
1
#25
33541-47D00
SEAL, SPARK PLUG
$8.58¢4 289
1
#26
33542-17G01
SEAL, HIGH TENSION CORD | FOR CENTER
$10.09¢5 043
1
#27
33542-38B00
SEAL, HIGH TENSION CORD
$4.76¢2 380
1
#28
32920-18K51
CONTROL UNIT, FI
No Disponible
1
#29
33960-06G10
SENSOR ASSY, FUEL CUT
$98.64¢49 318
1
