MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

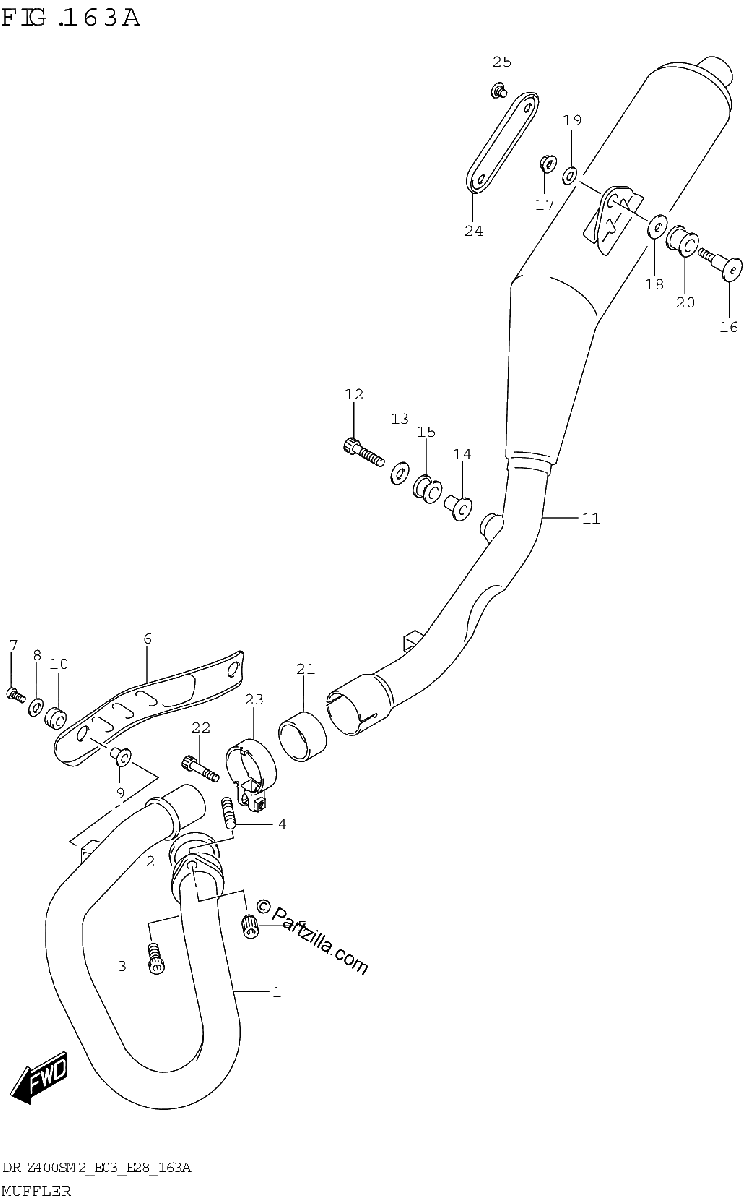

Diagrama de MUFFLER

Repuestos

#1
14150-29F10
PIPE, EXHAUST
$347.30¢173 650
1
#2
14181-29E02
.GASKET, EXHAUST PIPE | NOT ILLUSTRATED
$17.97¢8 987
1
#3
07130-0825A
BOLT
$3.36¢1 679
1
#4
01421-0816A
STUD BOLT
$2.12¢1 058
1
#5
09159-08112
NUT
$6.30¢3 151
1
#6
14180-29F30
COVER, EXHAUST PIPE
$69.57¢34 787
1
#7
09139-06109
SCREW (6X16)
$3.27¢1 633
1
#8
09160-06056
WASHER (6.5X18X1)
$2.01¢1 006
1
#9
14185-07G00
SPACER, EXHAUST PIPE COVER
$4.23¢2 116
1
#10
09320-08066
CUSHION
$8.91¢4 456
1
#11
14310-29FA0-H01
BODY, MUFFLER
$835.53¢417 766
1
#12
09106-08133
BOLT (8X35)
$4.27¢2 133
1
#13
09160-08151
WASHER (8.5X26X1.6)
$2.40¢1 202
1
#14
09180-08151
SPACER (8.6X12X17.5)
$5.67¢2 835
1
#15
09320-12043
CUSHION
$8.63¢4 313
1
#16
14419-29F00
BOLT, MUFFLER SUPPORT REAR
$16.16¢8 079
1
#17
08319-3108A
NUT
$2.77¢1 386
1
#18
09160-08503
WASHER (8.5X30X2.3)
$3.02¢1 512
1
#19
08322-0108A
WASHER
$2.28¢1 138
1
#20
09320-12048
CUSHION
$5.53¢2 766
1
#21
14771-29F10
CONNECTOR, MUFFLER JT
$33.18¢16 589
1
#22
07120-0840A
BOLT
$3.69¢1 846
1
#23
14459-29F10
CLAMP, MUFFLER CONNECTOR
$29.61¢14 806
1
#24
14782-29F00
COVER, MUFFLER
$29.55¢14 777
1
#25
14789-29F01
SCREW, MUFFLER COVER
$6.76¢3 381
1
