CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

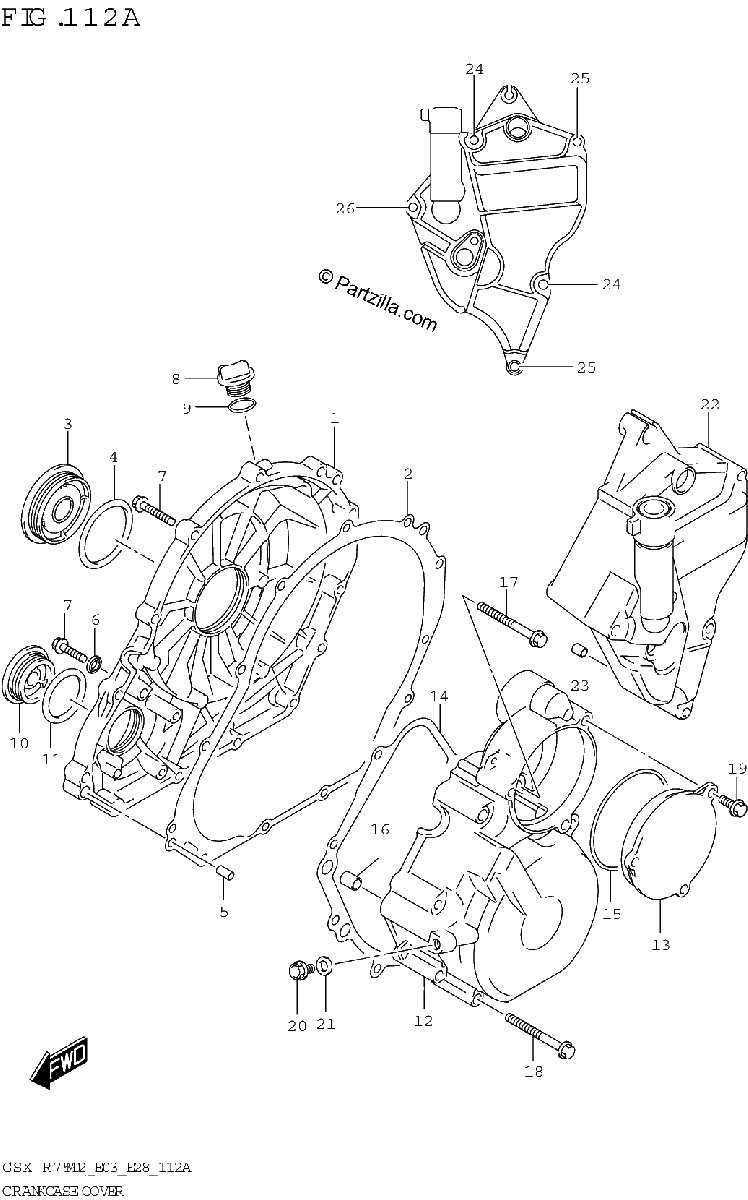

Diagrama de CRANKCASE COVER

Repuestos

#1
11341-37H00
COVER, CLUTCH
$195.75¢97 877
1
#2
11482-01H00
GASKET, CLUTCH COVER
$24.08¢12 041
1
#3
11342-41G10
CAP, CLUTCH RELEASE ADJUST
$27.47¢13 737
1
#4
31156-17E00
O RING
$5.05¢2 524
1
#5
04211-09189
PIN
$1.97¢983
1
#6
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#7
09103-06529
BOLT,CLUTCH COVER (6X30)
$2.13¢1 064
1
#8
11971-25D00
PLUG, ENGINE OIL FILLER
$5.60¢2 800
1
#9
09280-17003
O RING (D:3.1,ID:16.8)
$1.97¢983
1
#10
09259-36021
PLUG
$14.93¢7 464
1
#11
09280-33004
O RING (D:3.1,ID:32.7)
$2.69¢1 346
1
#12
11351-01H02
COVER, GENERATOR
$285.68¢142 841
1
#13
11352-01H00
CAP, STARTER IDLE GEAR
$61.11¢30 556
1
#14
11483-01H00
GASKET, GENERATOR COVER (NA)
$12.39¢6 193
1
#15
09280-71008
O RING (D:2.6,ID:67.1)
$7.44¢3 720
1
#16
04211-09149
PIN
$1.97¢983
1
#17
09103-06528
BOLT,STARTER CLUTCH COVER (6X 5)
$2.13¢1 064
1
#18
09103-06533
BOLT,CRANKCASE (6X50)
$2.84¢1 420
1
#19
09103-06526
BOLT,CONNECTOR (6X16)
$1.91¢954
1
#20
09103-06222
BOLT (6X12)
$2.74¢1 368
1
#21
09168-06018
GASKET (6.2X13X1.2)
$2.04¢1 018
1
#22
11361-01H00
COVER, ENGINE SPROCKET
$374.99¢187 496
1
#23
04211-09129
PIN
$1.97¢983
1
#24
09103-06532
BOLT,MAGNETO COVER (L45)
$2.62¢1 311
1
#25
09103-06536
BOLT,MAGNETO COVER (6X65)
$3.66¢1 829
1
#26
09103-06538
BOLT,CLUTCH COVER (6X75)
$4.02¢2 012
1
