FRAME COVER GSX R750Z

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

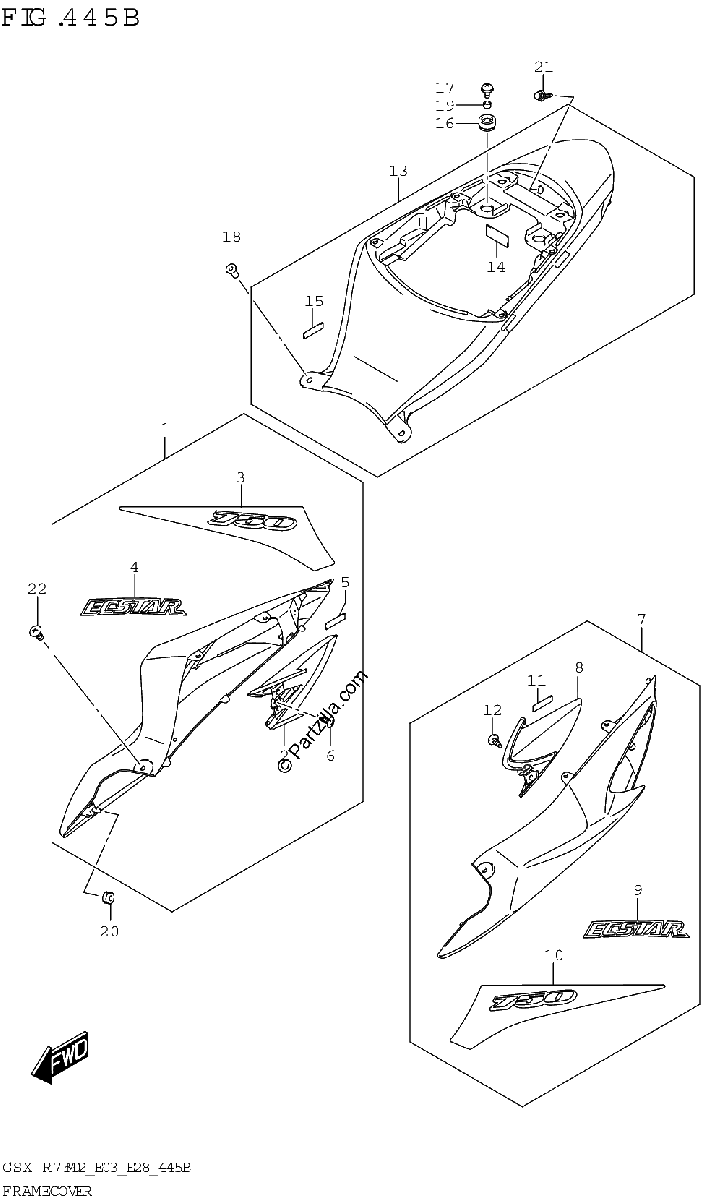

Diagrama de FRAME COVER GSX R750Z

Repuestos

#1
47100-15J60-YMD
COVER ASSY,FRAME,R (SILVER)
$150.56¢75 281
1
#2
47611-14J00
.COVER, FRAME
$22.30¢11 150
1
#3
68135-15J40-BW8
.TAPE,FRAME COVER,R
$27.41¢13 706
1
#4
68131-14J10-B54
EMBLEM,FRAME COVER,R (BLUE,W ITE,SILVER)
$15.88¢7 938
1
#5
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#6
03541-0512A
SCREW
$1.79¢894
1
#7
47200-15J60-YMD
COVER ASSY,FRAME,L (SILVER)
$150.56¢75 281
1
#8
47621-14J00
.COVER, FRAME
$22.40¢11 200
1
#9
68141-14J10-B54
.EMBLEM,FRAME COVER,L (BLUE,W ITE,SILVER)
$15.88¢7 938
1
#10
68145-15J40-BW8
.TAPE,FRAME COVER,L
$27.41¢13 706
1
#11
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#12
03541-0512A
SCREW
$1.79¢894
1
#13
47300-14J01
COVER ASSY,FRAME CTR
$114.92¢57 463
1
#14
48128-14FA0
CUSHION, BOX UPPER
$8.73¢4 363
1
#15
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#16
47312-37H10
CUSHION (10X24X13)
$3.65¢1 825
1
#17
09136-06056
SCREW (6X16)
$2.74¢1 369
1
#18
09159-05019
NUT
$8.39¢4 194
1
#19
09180-06283
SPACER (6.5X10X7)
$2.46¢1 231
1
#20
09320-06504
CUSHION
$5.83¢2 913
1
#21
09409-06314
CLIP
$3.60¢1 800
1
#22
02142-1520B
SCREW
$3.05¢1 525
1
