FRONT FORK DAMPER

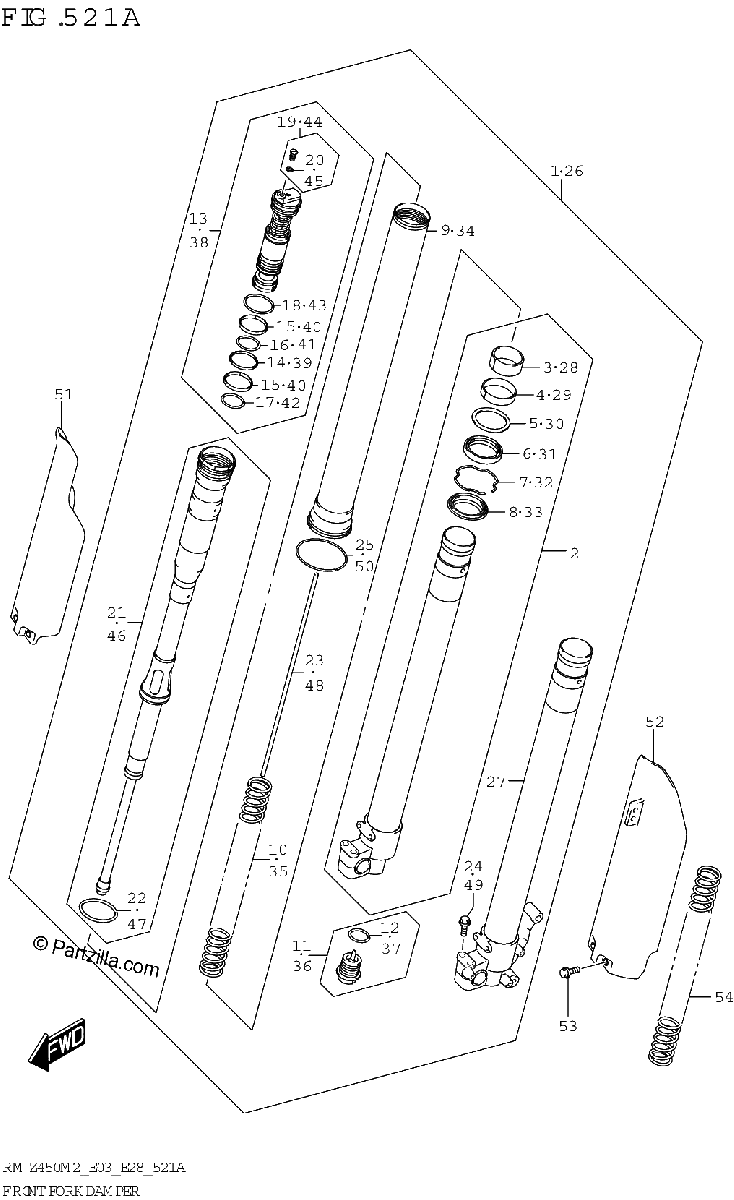

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
$1671.90¢835 952
#2
.TUBE, INNER RH
$426.44¢213 222
#3
..BUSH, SLIDE
$35.39¢17 693
#4
..BUSH, GUIDE
$34.62¢17 308
#5
..SPACER, SEAL
$11.65¢5 825
#6
..SEAL, OIL
$44.94¢22 471
#7
..RING, OIL SEAL STOPPER
$10.49¢5 244
#8
..SEAL, DUST
$35.59¢17 796
#9
.TUBE, OUTER
$686.03¢343 016
#10
.SPRING, FRONT
$160.52¢80 259
#11
.BOLT, CENTER
$130.09¢65 044
#12
..O RING
$4.85¢2 427
#13
.BOLT, FORK
$610.57¢305 285
#14
..PISTON RING
$6.27¢3 134
#15
..BUSH, FORK BOLT SLIDE
$16.88¢8 441
#16
..O RING
$5.84¢2 921
#17
..O RING
$6.23¢3 117
#18
..O RING
$7.81¢3 904
#19
..BOLT, PLUG
$17.36¢8 683
#20
...O RING
$5.32¢2 662
#21
.DAMPER
$1008.57¢504 286
#22
..O RING
$6.01¢3 007
#23
.ROD, PUSH
$16.88¢8 441
#24
.BOLT
$7.96¢3 979
#25
.RING, STOPPER
$17.50¢8 752
#26
DAMPER ASSY, FRONT FORK LH
$1671.90¢835 952
#27
.TUBE, INNER LH
$418.54¢209 271
#28
..BUSH, SLIDE
$35.39¢17 693
#29
..BUSH, GUIDE
$34.62¢17 308
#30
..SPACER, SEAL
$11.65¢5 825
#31
..SEAL, OIL
$44.94¢22 471
#32
..RING, OIL SEAL STOPPER
$10.49¢5 244
#33
..SEAL, DUST
$35.59¢17 796
#34
.TUBE, OUTER
$686.03¢343 016
#35
.SPRING, FRONT
$160.52¢80 259
#36
.BOLT, CENTER
$130.09¢65 044
#37
..O RING
$4.85¢2 427
#38
.BOLT, FORK
$610.57¢305 285
#39
..PISTON RING
$6.27¢3 134
#40
..BUSH, FORK BOLT SLIDE
$16.88¢8 441
#41
..O RING
$5.84¢2 921
#42
..O RING
$6.23¢3 117
#43
..O RING
$7.81¢3 904
#44
..BOLT, PLUG
$17.36¢8 683
#45
...O RING
$5.32¢2 662
#46
.DAMPER
$1008.57¢504 286
#47
..O RING
$6.01¢3 007
#48
.ROD, PUSH
$16.88¢8 441
#49
.BOLT
$7.96¢3 979
#50
.RING, STOPPER
$17.50¢8 752
#51
PROTECTOR, FRONT FORK RH
$72.13¢36 064
#52
PROTECTOR, FRONT FORK LH
$128.83¢64 417
#53
BOLT (6X10)
$3.66¢1 829
#54-1
SPRING, FRONT
$160.52¢80 259
#54-2
SPRING, FRONT
$160.52¢80 259
