CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

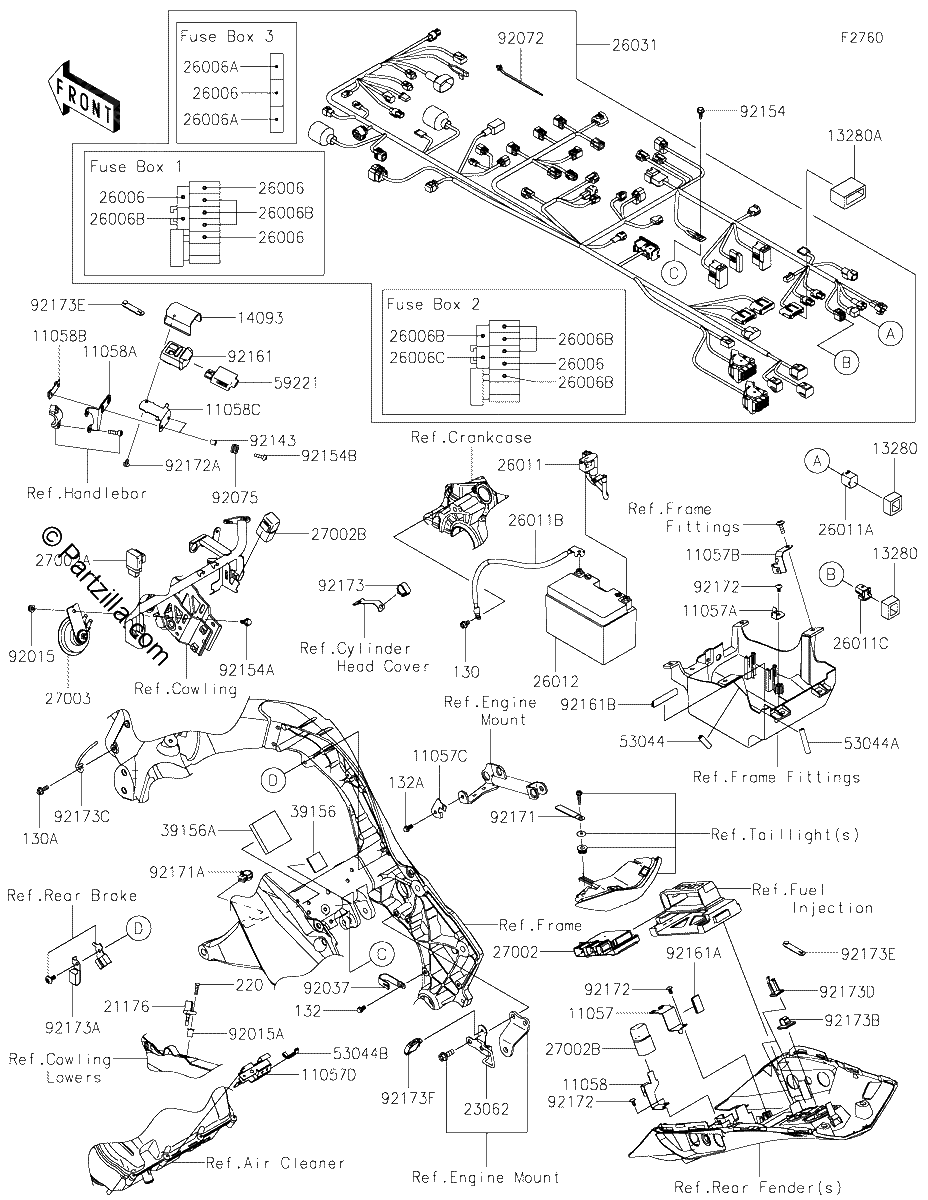

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130BA0610
BOLT FLANGED,6X10
$1.16¢581
1
#130A
130BB0616
BOLT FLANGED,6X16
$1.78¢891
1
#132
132BA0610
BOLT-FLANGED-SMALL,6X10
$1.53¢765
1
#132A
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.16¢581
1
#220
220AB0518
SCREW-PAN-CROS,5X18
$3.36¢1 679
1
#11057
11057-2891
BRACKET,RR SIGNAL LAMP
$3.96¢1 978
1
#11057A
11057-2892
BRACKET,BATTERY(+)
$2.83¢1 414
1
#11057B
11057-2893
BRACKET,FUEL PUMP
$5.28¢2 639
1
#11057C
11057-2907
BRACKET,QUICK-SHIFTER CONNECTO
$2.46¢1 231
1
#11057D
11057-7101
BRACKET-COMP,O2 SENSOR
$16.30¢8 148
1
#11058
11058-1400
BRACKET
$5.19¢2 593
1
#11058A
11058-1401
BRACKET,CLUTCH LEVER
$13.52¢6 762
1
#11058B
11058-1409
BRACKET,USB,Rear
$6.43¢3 214
1
#11058C
11058-2312
BRACKET,USB,Front
$9.31¢4 658
1
#13280
13280-0959
HOLDER,DIAG CONNECTOR
$1.90¢949
1
#13280A
13280-0994
HOLDER
$9.36¢4 681
1
#14093
14093-1458
COVER,USB
$5.16¢2 582
1
#21176
21176-0048
SENSOR,AIR TEMPERATURE
$26.09¢13 047
1
#23062
23062-1502
BRACKET COMP
$19.68¢9 838
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$5.75¢2 875
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.15¢3 076
1
#26006B
26006-1078
FUSE,MINI BLADE,10A,RED
$4.02¢2 012
1
#26006C
26006-1080
FUSE,MINI BLADE,30A,GREEN
$4.66¢2 329
1
#26011
26011-0252
WIRE LEAD,BATTERY(+)
$48.27¢24 133
1
#26011A
26011-0275
WIRE-LEAD,CONNECTOR COVER
$14.46¢7 228
1
#26011B
26011-0822
WIRE LEAD,BATTERY( )
$32.98¢16 491
1
#26011C
26011-1901
WIRE-LEAD,DIAG CONNECTOR
$41.25¢20 625
1
#26012
26012-1529
BATTERY,YT12A BS,12V
$205.36¢102 678
1
#26031
26031-4486
HARNESS,MAIN
$1230.91¢615 457
1
#27002B
27002-1086
RELAY Assembly
$38.66¢19 332
1
#27002A
27002-0068
RELAY Assembly,SIGNAL LAMP
$92.53¢46 264
1
#27002
27002-0061
RELAY Assembly
$197.13¢98 566
1
#27003
27003-0126
HORN
$78.18¢39 088
1
#39156A
39156-2216
PAD,60X60X10
$13.52¢6 762
1
#39156
39156-1766
PAD,30X30X3
$1.26¢633
1
#53044
53044-0001
TRIM,L=30
$2.46¢1 231
1
#53044A
53044-0012
TRIM,L=40
$2.61¢1 305
1
#53044B
53044-0718
TRIM,L=65
$4.57¢2 283
1
#59221
59221-0022
CONNECTOR CORD,USB TYPE C
$95.12¢47 558
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92015A
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92037
92037-2014
CLAMP,CABLE,STEEL SHEET
$1.83¢914
1
#92072
92072-1414
BAND
$3.40¢1 702
1
#92075
92075-1912
DAMPER
$5.46¢2 731
1
#92143
92143-1984
COLLAR,5.6X8X9.3
$3.78¢1 892
1
#92154A
92154-1851
BOLT,FLANGED,6X16
$1.87¢937
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.55¢776
1
#92154B
92154-2107
BOLT,SOCKET,5X18
$1.84¢920
1
#92161
92161-2497
DAMPER
$10.33¢5 164
1
#92161A
92161-2654
DAMPER,30X30X2
$1.15¢575
1
#92161B
92161-2655
DAMPER,60X20X2
$1.93¢966
1
#92171
92171-0652
CLAMP,L=60
$2.22¢1 110
1
#92171A
92171-1722
CLAMP,EDGE CLIP
$8.51¢4 255
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.24¢621
1
#92172A
92172-1194
SCREW,5X10
$1.30¢650
1
#92173
92173-0868
CLAMP,HOLDER CLIP
$2.53¢1 265
1
#92173A
92173-1008
CLAMP,84MM
$5.04¢2 519
1
#92173B
92173-1055
CLAMP,DRAIN
$5.97¢2 984
1
#92173C
92173-1199
CLAMP,IRON WIRE
$5.63¢2 818
1
#92173D
92173-1269
CLAMP,LOCKING WIRE SADDLE
$4.48¢2 242
1
#92173E
92173-2198
CLAMP
$1.43¢713
1
#92173F
92173-2951
CLAMP
$1.43¢713
1
