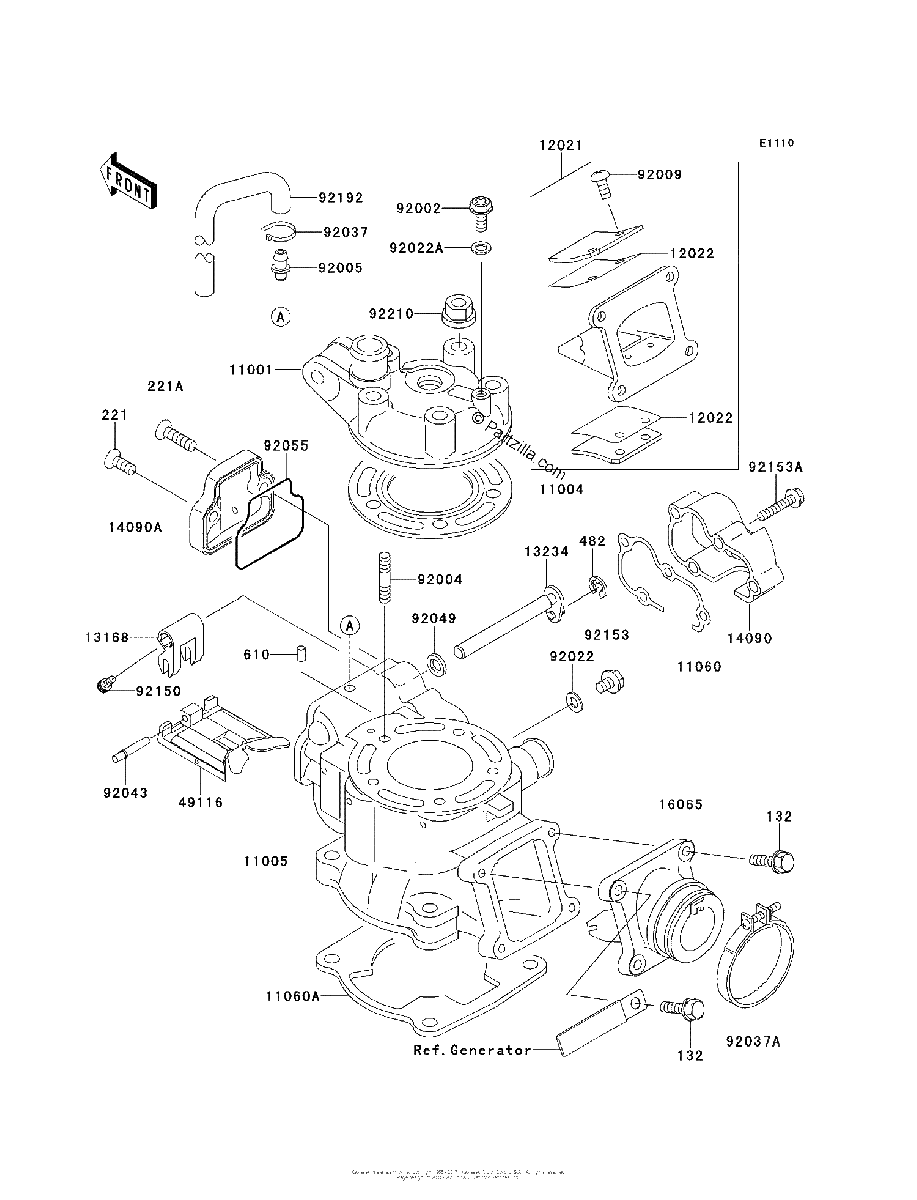

CYLINDER HEAD CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#132
BOLT-FLANGED-SMALL,6X20
$1.08¢541
#221A
SCREW-CSK-CROS,6X20
$2.05¢1 023
#221
SCREW CSK CROS,6X16
$0.64¢322
#482
CIRCLIP-TYPE-E,5MM
$2.83¢1 414
#610
ROLLER,4X8
$3.94¢1 972
#11001
HEAD-CYLINDER
$165.57¢82 783
#11004
GASKET HEAD
$33.42¢16 710
#11005
CYLINDER ENGINE
$663.15¢331 574
#11060
GASKET,GOVERNOR COVER
$5.29¢2 645
#11060A
GASKET,CYLINDER BASE
$6.91¢3 456
#12021
VALVE Assembly REED
$195.45¢97 727
#12022
VALVE-REED
$64.22¢32 108
#13168
LEVER,MAIN VALVE
$101.26¢50 629
#13234
SHAFT COMP
$40.50¢20 251
#14090A
COVER
$25.45¢12 725
#14090
COVER
$33.57¢16 784
#16065
HOLDER-CARBURETOR
$67.39¢33 695
#49116
VALVE-ASSY
$172.35¢86 175
#92002
BOLT,6X10
$7.41¢3 703
#92004
STUD,8X33
$4.24¢2 122
#92005
FITTING
$12.87¢6 434
#92009
SCREW,REED VALVE
$2.21¢1 104
#92022A
WASHER,6.2X11X1
$3.31¢1 656
#92022
WASHER,6.1X12X1
$3.40¢1 702
#92037A
CLAMP
$7.84¢3 922
#92037
CLAMP
$3.09¢1 547
#92043
PIN,MAIN VALVE
$4.48¢2 242
#92049
SEAL-OIL,SD088144
$9.54¢4 773
#92055
RING O
$15.81¢7 906
#92150
BOLT,SOCKET,4X8
$2.76¢1 380
#92153A
BOLT,FLANGED,5X25
No Disponible
#92153
BOLT-FLANGED,6X8
No Disponible
#92192
TUBE,L=426.3
$15.35¢7 676
#92210
NUT,8MM
$4.98¢2 490
