FRAME COVER GSX R1000RZA

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

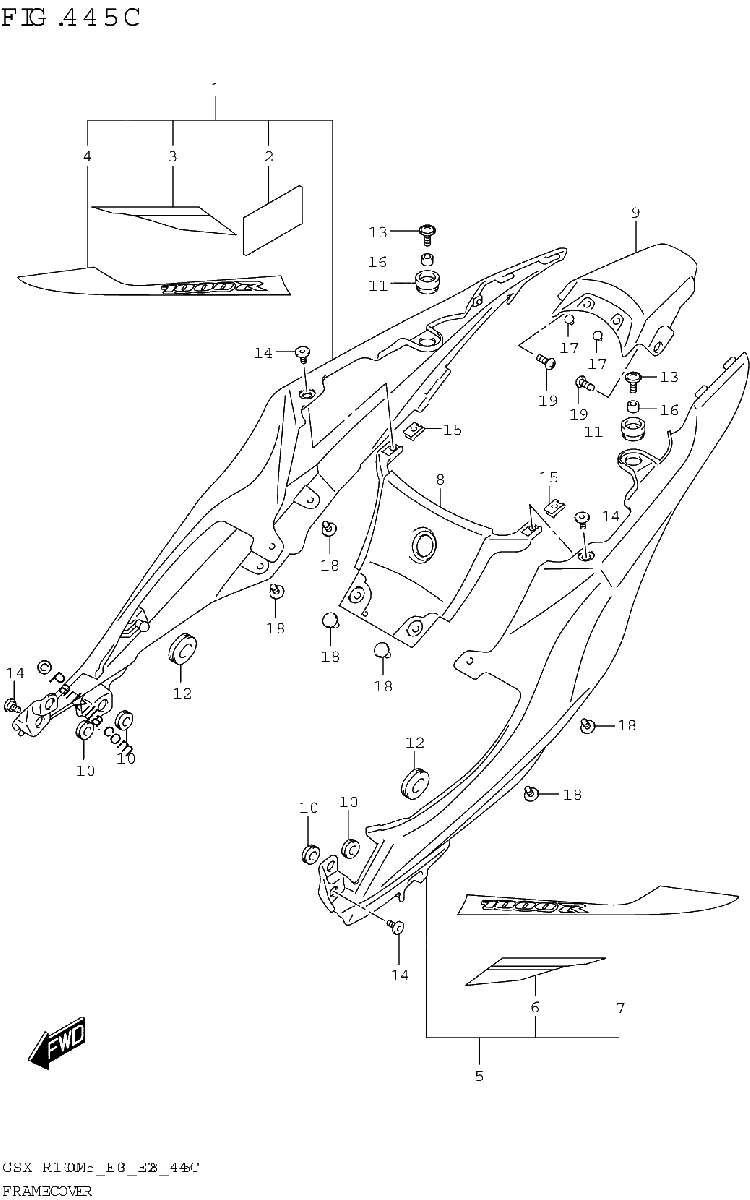

Diagrama de FRAME COVER GSX R1000RZA

Repuestos

#1
47110-17KG0-YUH
COVER,FRAME,R (WHITE)
$161.02¢80 512
1
#2
33652-17K10
CUSHION, REAR TURNSIGNAL LEAD
$5.22¢2 613
1
#3
68135-17KA0-CQV
TAPE,FRAME COVER,R
$51.16¢25 581
1
#4
68135-17K60-BJ8
.TAPE,FRAME COVER RH (BLUE,WH TE,ORANGE)
$31.29¢15 644
1
#5
47210-17KG0-YUH
COVER,FRAME,L (WHITE)
$161.02¢80 512
1
#6
68145-17KA0-CQV
TAPE,FRAME COVER,L
$51.16¢25 581
1
#7
68145-17K60-BJ8
.TAPE,FRAME COVER LH (BLUE,WH TE,ORANGE)
$31.29¢15 644
1
#8
47311-17K00
COVER, FRAME CENTER FRONT
$41.40¢20 700
1
#9
47411-17K00-YSF
COVER, FRAME CENTER REAR (BLUE)
$70.64¢35 319
1
#10
44173-14J00
CUSHION, SIDE
$5.11¢2 556
1
#11
47312-37H10
CUSHION (10X24X13)
$3.65¢1 825
1
#12
94478-14J00
CUSHION
$7.05¢3 525
1
#13
09139-06139
SCREW (6X16)
$3.80¢1 900
1
#14
09139-05092
SCREW
$2.90¢1 450
1
#15
09148-05052
NUT
$3.96¢1 981
1
#16
09180-06283
SPACER (6.5X10X7)
$2.46¢1 231
1
#17
09250-06017
PLUG,RR FENDER
$3.56¢1 781
1
#18
09409-06328
CLIP
$3.80¢1 900
1
#19
03541-0516A
SCREW
$1.79¢894
1
