CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

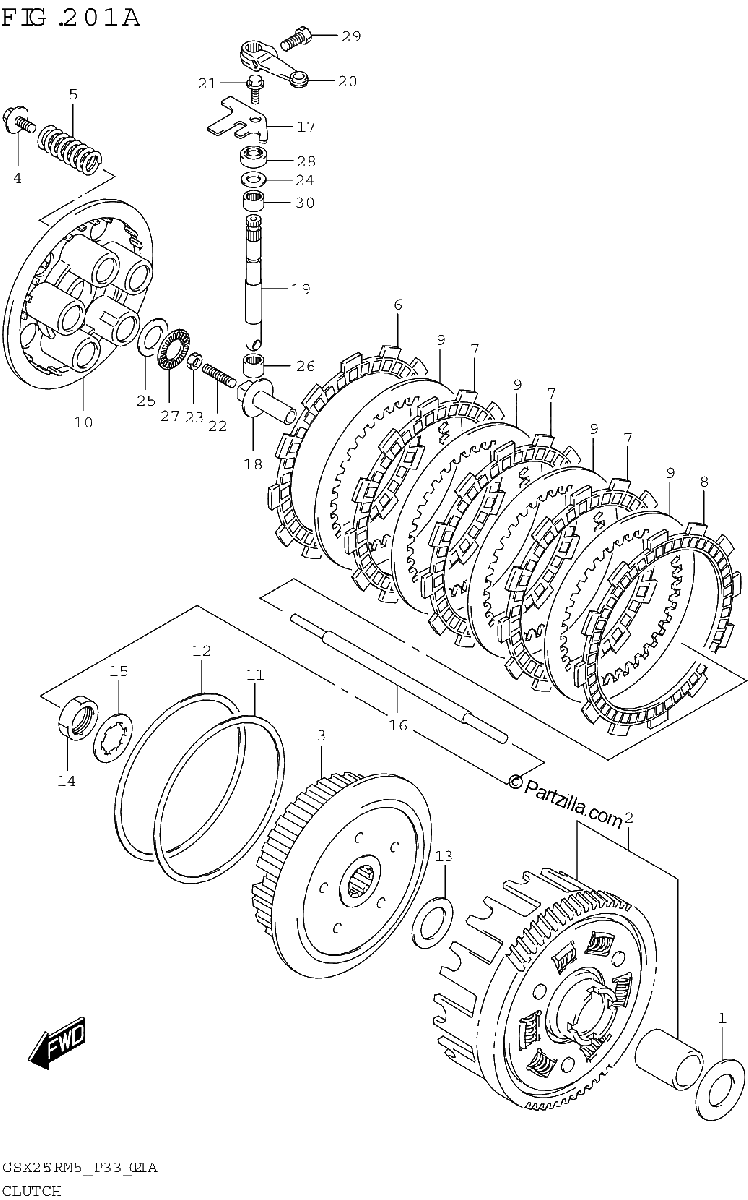

Diagrama de CLUTCH

Repuestos

#1
21252-48H00
WASHER, THRUST
$6.10¢3 050
1
#2
21200-48880
GEAR ASSY, PRIMARY DRIVEN (NT:68)
$331.96¢165 981
1
#3
21411-48H00
HUB, CLUTCH SLEEVE
$57.00¢28 500
1
#4
21412-48H00
BOLT, CLUTCH SPRING
$3.65¢1 825
1
#5
21413-48H10
SPRING, CLUTCH
$6.10¢3 050
1
#6
21441-48H00
PLATE, CLUTCH DRIVE NO.1 (T:3.0)
$64.28¢32 138
1
#7
21441-48H10
PLATE, CLUTCH DRIVE NO.2 (T:3.0)
$49.95¢24 975
1
#8
21442-48H00
PLATE, CLUTCH DRIVE NO.3 (T:3.5)
$64.66¢32 331
1
#9
21451-48H00
PLATE, CLUTCH DRIVEN (T:2.0)
$11.04¢5 519
1
#10
21462-48H00
DISC, CLUTCH PRESSURE
$31.85¢15 925
1
#11
21471-48H00
SEAT, WAVE WASHER
$11.13¢5 563
1
#12
21472-48H00
WASHER, CLUTCH SLEEVE HUB WAV
$13.25¢6 625
1
#13
08211-22363
WASHER
$5.27¢2 637
1
#14
09140-22005
NUT
$5.06¢2 531
1
#15
09167-22029
LOCK WASHER
$1.40¢700
1
#16
23110-48H00
ROD, CLUTCH PUSH
$13.81¢6 906
1
#17
23117-48H00
RETAINER, CL RELEASE OIL SEAL
$2.06¢1 031
1
#18
23121-48H00
PIECE, CLUTCH PUSH
No Disponible
1
#19
23122-48H10
CAMSHAFT, CLUTCH RELEASE
$16.09¢8 044
1
#20
23271-48H00
ARM, CLUTCH RELEASE
No Disponible
1
#21
09103-06233
BOLT (6X12) | OPT
$2.74¢1 369
1
#22
09134-06018
SCREW (6X25)
No Disponible
1
#23
09140-06023
NUT
$2.70¢1 350
1
#24
09160-12119
WASHER (12.5X17X1)
$1.56¢781
1
#25
09160-15045
WASHER (15.5X28X1)
$4.58¢2 288
1
#26
09263-10023
BEARING (10X14X10)
$9.47¢4 738
1
#27
09263-15L01
BEARING (15X28X2)
$10.71¢5 356
1
#28
09285-10L01
OIL SEAL (10X17X5)
$5.50¢2 750
1
#29
01500-0616A
BOLT
$2.30¢1 150
1
#30
09263-12029
BEARING (12X16X10)
$8.16¢4 081
1
