FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

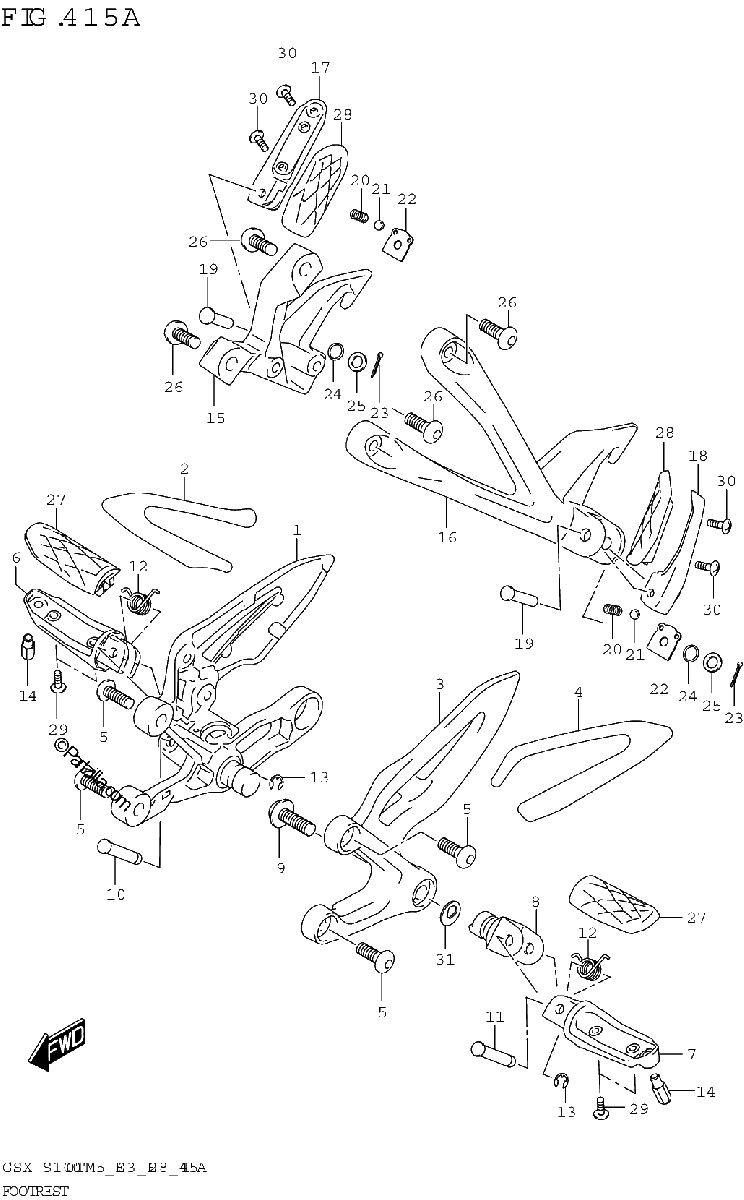

Diagrama de FOOTREST

Repuestos

#1
43510-48K10
BRACKET,FR FOOTREST,R
$137.11¢68 557
1
#2
43571-04K10
TAPE, FRONT FOOTREST RH
$34.04¢17 020
1
#3
43521-48K10
BRACKET,FR FOOTREST,L
$95.51¢47 754
1
#4
43572-04K10
TAPE, FRONT FOOTREST LH
$34.73¢17 365
1
#5
09106-08209
BOLT
$3.36¢1 679
1
#6
43511-44G50
BAR, FRONT FOOTREST RH
$30.37¢15 186
1
#7
43521-44G50
BAR, FRONT FOOTREST LH
$39.33¢19 665
1
#8
43540-48K20
HOLDER,FOOTREST,L
$49.33¢24 667
1
#9
09106-10064
BOLT (10X28)
$5.29¢2 645
1
#10
09208-08019
PIN
$3.32¢1 662
1
#11
09208-08018
PIN
$3.32¢1 662
1
#12
43581-48K00
SPRING,FRONT FOOTREST
$4.38¢2 191
1
#13
08332-1106A
.E RING
$1.71¢857
1
#14
43576-48B02
BOLT, BANK SENSOR
$8.21¢4 105
1
#15
43811-48K00
BRACKET,PILLION FOOTREST,R
$178.50¢89 252
1
#16
43821-48K00
BRACKET,PILLION FOOTREST,L
$178.50¢89 252
1
#17
43611-10L00
.BAR,PILLION FOOTREST RH
$79.32¢39 658
1
#18
43621-10L00
.BAR,PILLION FOOTREST LH
$79.32¢39 658
1
#19
09200-08076
PIN,PILLION FOOTREST
$4.31¢2 156
1
#20
09440-06039
.SPRING
$3.94¢1 972
1
#21
06111-08004
.BALL
$1.56¢782
1
#22
43816-10L00
.PLATE,PILLION FOOTREST
$7.68¢3 841
1
#23
04111-2015A
COTTER PIN
$1.46¢730
1
#24
18592-68K00
.O RING (D:2.4,ID:6.9)
$5.98¢2 990
1
#25
09160-08090
WASHER (8.5X14X1.6)
$2.85¢1 426
1
#26
09106-08213
BOLT,PILLION FOOTREST BRKT
$4.11¢2 053
1
#27
43550-48K00
RUBBER,FOOTREST
$32.80¢16 399
1
#28
43550-10L00
.RUBBER,FOOTREST
$22.67¢11 333
1
#29
09125-05147
SCREW,FOOTREST BAR
$1.00¢500
1
#30
02142-0516A
BOLT | LOWER
$1.71¢857
1
#31
43533-48K20
WASHER,FOOTREST HOLDER
$28.90¢14 450
1
