FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

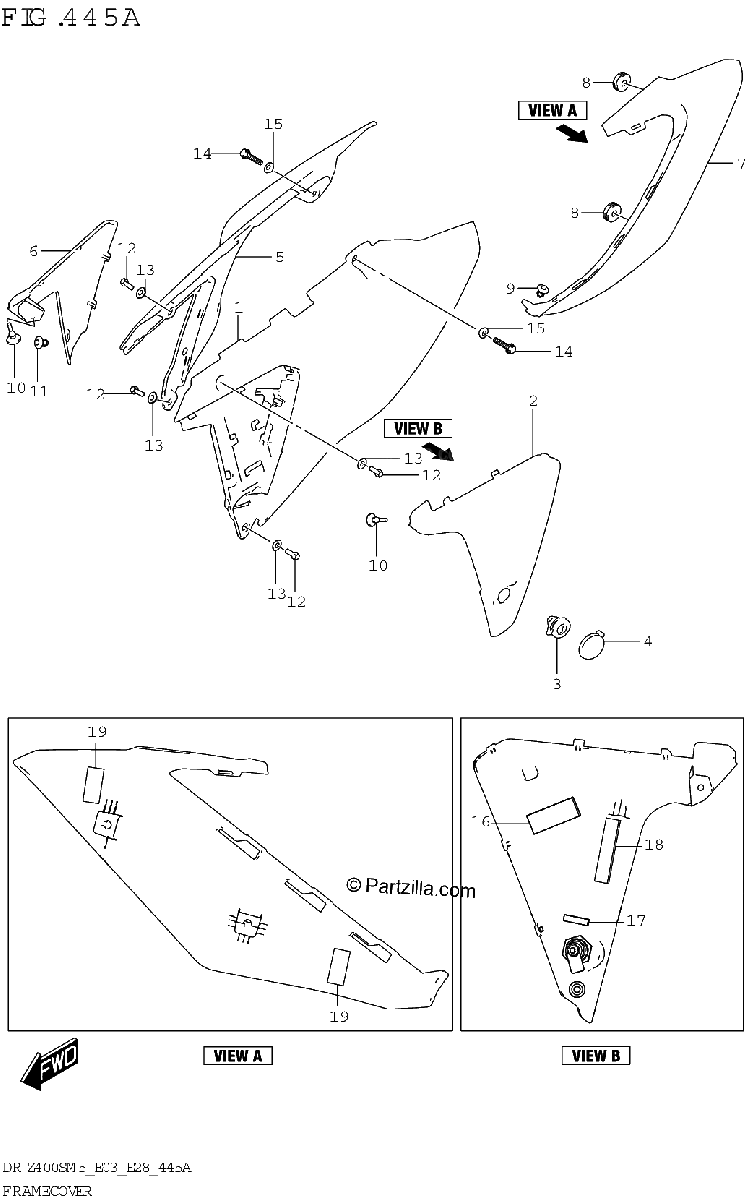

Diagrama de FRAME COVER

Repuestos

#2
47221-37L00
COVER,FRAME FRONT,L
$48.34¢24 169
1
#3
95700-14880
LOCK SET,FRAME COVER
$101.69¢50 844
1
#4
47222-37L00
CAP,FRAME COVER FRONT,L
$15.06¢7 531
1
#6
47121-37L00
COVER,FRAME FRONT,R
$48.34¢24 169
1
#7
47412-37L00
LID,ELECTRIC PARTS HOLDER
$27.00¢13 500
1
#8
09320-06026
CUSHION
$5.38¢2 688
1
#9
09409-06314
CLIP
$3.60¢1 800
1
#10
09321-06033
CUSHION
$3.65¢1 825
1
#1-1
47211-37L00-30H
COVER,FRAME,L (WHITE) *{BODY COLOR:30H}*
$90.34¢45 169
1
#11
09409-06314
CLIP
$3.60¢1 800
1
#1-2
47211-37L00-YUD
COVER,FRAME,L (GRAY) *{BODY COLOR:YUD}*
$90.34¢45 169
1
#12
01547-0616D
BOLT,FRAME COVER NO.1
$2.21¢1 106
1
#13
47191-02J00
WASHER, RADIATOR COVER
$24.47¢12 237
1
#14
01547-0620A
BOLT
$2.63¢1 313
1
#15
47191-37L00
SPACER,FRAME COVER
$4.21¢2 106
1
#16
36652-04K00
CUSHION
$3.52¢1 763
1
#17
51833-48GB0
CUSHION
No Disponible
1
#18
47215-25LA0
CUSHION,FRAME COVER REAR
$1.31¢656
1
#19
36920-37H00
PROTECTOR,WIRING HARNESS (10X 5X0.13)
No Disponible
1
#5-1
47111-37L00-30H
COVER,FRAME,R (WHITE) *{BODY COLOR:30H}*
$90.34¢45 169
1
#5-2
47111-37L00-YUD
COVER,FRAME,R (GRAY) *{BODY COLOR:YUD}*
$90.34¢45 169
1
