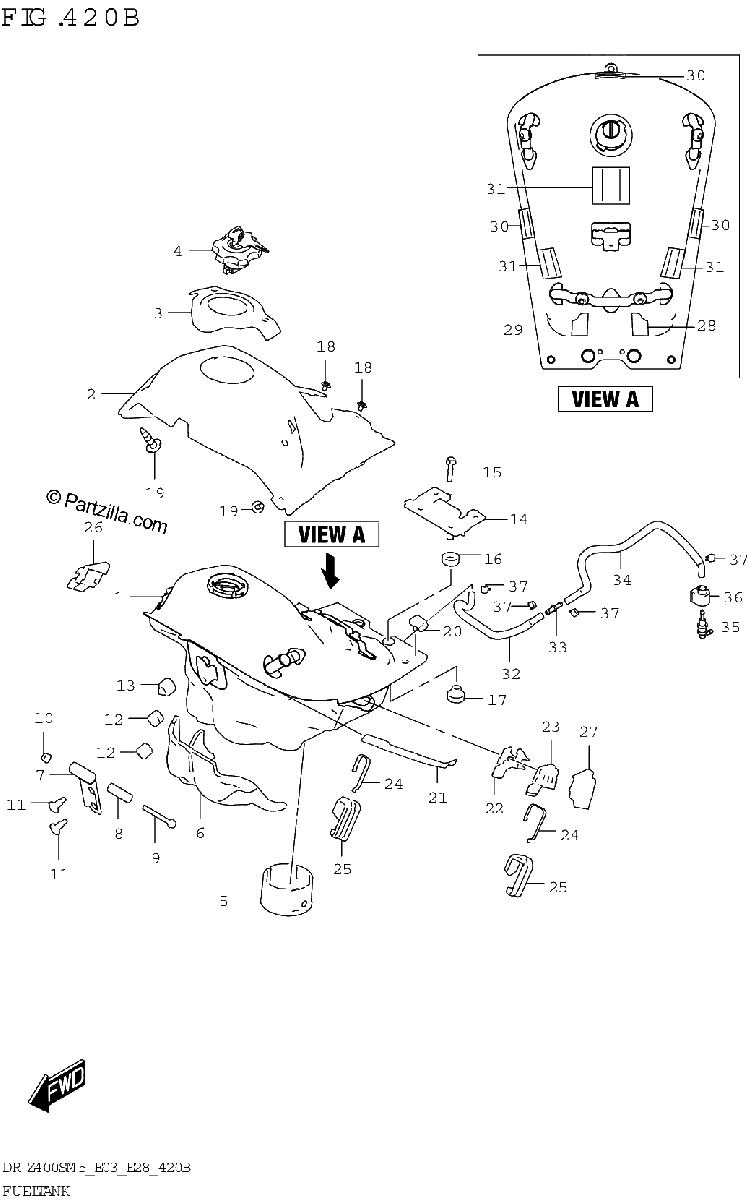

FUEL TANK E33
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
TANK ASSY,FUEL
$1022.15¢511 077
#2
COVER,FUEL TANK (BLACK)
$140.99¢70 495
#3
RUBBER,FUEL TANK COVER
$14.40¢7 199
#4
CAP SET,FUEL TANK FILLER
$238.77¢119 387
#5
VESSEL,FUEL TANK INNER
$19.84¢9 919
#6
SHIELD,FUEL TANK HEAT NO.1
$37.74¢18 871
#7
BRACKET COMP,FUEL TANK FRONT
$29.15¢14 576
#8
SPACER,FUEL TANK FRONT
$13.43¢6 716
#9
BOLT
$4.94¢2 472
#10
NUT
$2.96¢1 478
#11
SCREW (6X22)
$4.42¢2 208
#12
CUSHION
$3.66¢1 829
#13
CUSHION
$3.12¢1 558
#14
BRACKET,FUEL TANK REAR
$25.67¢12 834
#15
BOLT
$2.77¢1 386
#16
CUSHION
$3.93¢1 967
#17
CUSHION (9X24X18)
$3.13¢1 564
#18
BOLT,RADIATOR COVER
$3.31¢1 656
#19
SCREW
$2.12¢1 058
#20
CUSHION,FUEL TANK REAR SIDE
$12.16¢6 078
#21
PROTECTOR,FUEL TANK LOWER
$5.23¢2 616
#22
CUSHION,FUEL TANK SIDE
$31.43¢15 715
#23
MOUNT,FUEL TANK SIDE
$5.06¢2 530
#24
CLIP,FUEL TANK SIDE CUSHION
$8.89¢4 445
#25
CUSHION,FUEL TANK SIDE
$8.74¢4 370
#26
CUSHION,FUEL TANK SIDE UPPER,
$32.12¢16 060
#27
CUSHION,FUEL TANK SIDE UPPER,
$32.29¢16 146
#28
PROTECTOR,FUEL TANK,R
$7.68¢3 841
#29
PROTECTOR,FUEL TANK,L
$7.68¢3 841
#30
MOLDING, FUEL TANK REAR
$13.88¢6 940
#31
CUSHION,FUEL TANK COVER NO.2
$7.57¢3 783
#33
JOINT
No Disponible
#35
VALVE, FUEL TANK BREATHER
$80.35¢40 175
#36
CUSHION, FUEL TANK BRTHR VALV
No Disponible
#37
CLIP
$2.69¢1 346
#32-1
HOSE,FUEL TANK BREATHER NO.1
$32.95¢16 474
#32-2
HOSE,FUEL TANK BREATHER NO.1
No Disponible
#34-1
HOSE,FUEL TANK BREATHER NO.2
$29.78¢14 892
#34-2
HOSE,FUEL TANK BREATHER NO.2
No Disponible
