FRAME COVER GSX R600Z

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

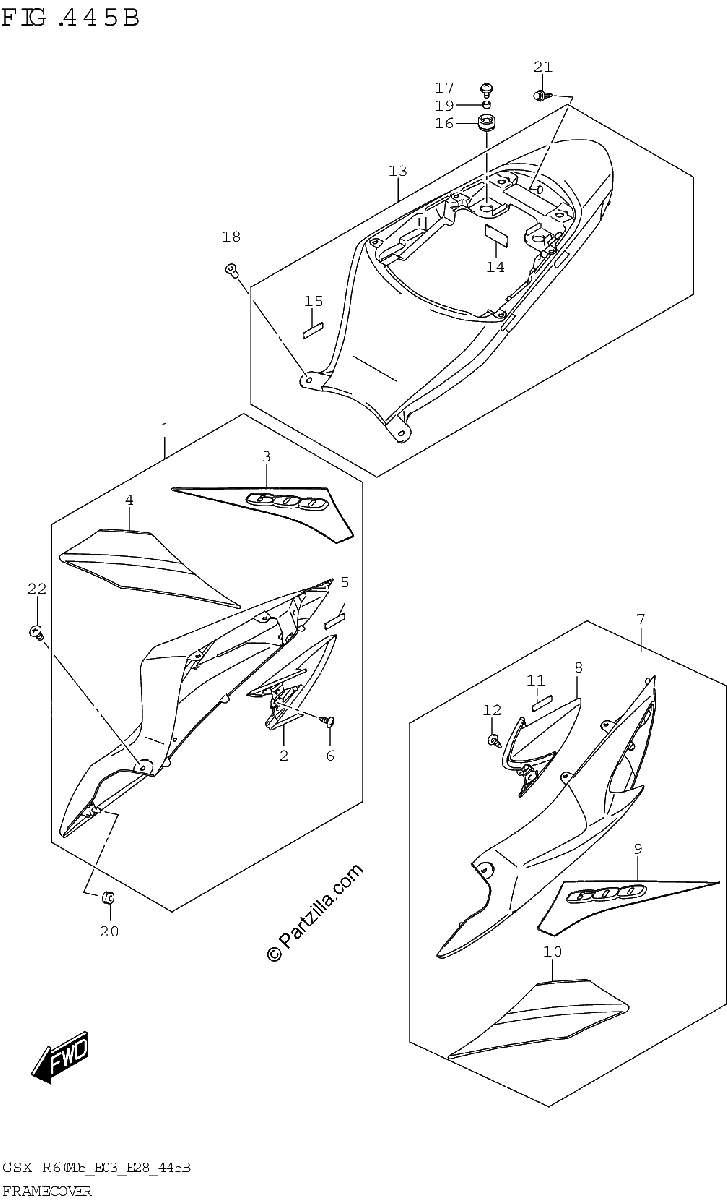

Diagrama de FRAME COVER GSX R600Z

Repuestos

#1
47100-14JB0-YUH
COVER ASSY,FRAME,R (WHITE)
$118.51¢59 254
1
#2
47611-14J00
.COVER, FRAME
$20.52¢10 258
1
#3
68135-14J70-CQ6
TAPE,FRAME COVER,R
$27.20¢13 599
1
#4
68135-14J90-CQV
TAPE,FRAME COVER,R
$24.81¢12 403
1
#5
94443-06G00
TAPE, REAR FENDER
$3.56¢1 783
1
#6
03541-0512A
SCREW
$1.64¢822
1
#7
47200-14JB0-YUH
COVER ASSY,FRAME,L (WHITE)
$118.51¢59 254
1
#8
47621-14J00
.COVER, FRAME
$20.61¢10 304
1
#9
68145-14J70-CQ6
TAPE,FRAME COVER,L
$27.20¢13 599
1
#10
68145-14J90-CQV
TAPE,FRAME COVER,L
$24.81¢12 403
1
#11
94443-06G00
TAPE, REAR FENDER
$3.56¢1 783
1
#12
03541-0512A
SCREW
$1.64¢822
1
#13
47300-14J10
COVER ASSY,FRAME CTR
$105.73¢52 866
1
#14
48128-14FA0
CUSHION, BOX UPPER
$8.03¢4 013
1
#15
94443-06G00
TAPE, REAR FENDER
$3.56¢1 783
1
#16
47312-37H10
CUSHION (10X24X13)
$3.36¢1 679
1
#17
09136-06056
SCREW (6X16)
$2.52¢1 259
1
#18
09159-05019
NUT
$7.72¢3 858
1
#19
09180-06283
SPACER (6.5X10X7)
$2.27¢1 133
1
#20
09320-06504
CUSHION
$5.36¢2 680
1
#21
09409-06314
CLIP
$3.31¢1 656
1
#22
02142-1520B
SCREW
$2.81¢1 403
1
